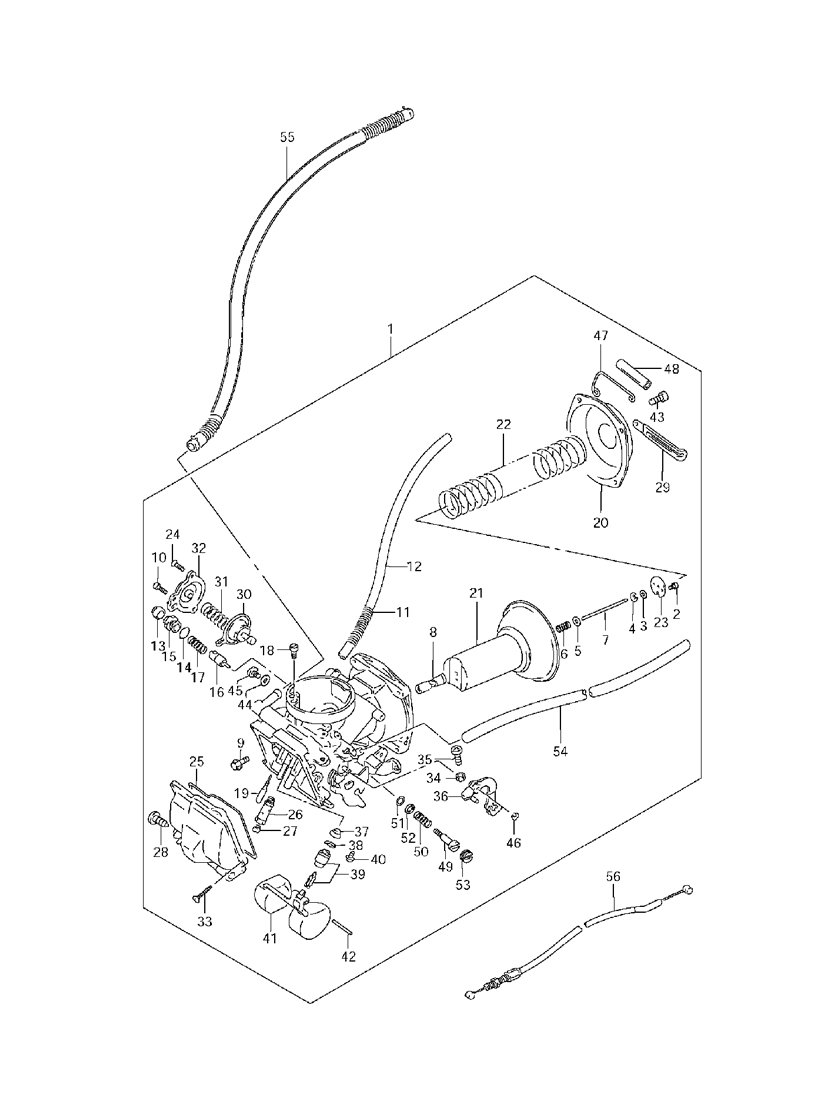

CARBURETOR (FRONT) для Suzuki VS800 K9 - 2009 года выпуска
-
№АртикулНазвание
-
113210-38E11 CARBURETOR ASSY, FRONT (INCLUDES ITEM(S) 2 - 54) (US & CANADA)CARBURETOR ASSY, FRONT (INCLUDES ITEM(S) 2 - 54) (US & CANADA)
-
113210-38E52 CARBURETOR ASSY, FRONT (INCLUDES ITEM(S) 2 - 54) (CALIF. ONLY)CARBURETOR ASSY, FRONT (INCLUDES ITEM(S) 2 - 54) (CALIF. ONLY)
-
202112-33073 SCREWSCREW
-
313387-47010 RINGRING
-
413394-10010 E RINGE RING
-
513382-44030 WASHERWASHER
-
613388-44030 SPRINGSPRING
-
713383-45C20 NEEDLE, JET (5D47-1)NEEDLE, JET (5D47-1)
-
809494-00892 JET, NEEDLE (P-2M)JET, NEEDLE (P-2M)
-
913605-38B00 SCREWSCREW
-
1002112-04103 SCREWSCREW
-
1113689-38A00 SPRINGSPRING
-
1209352-50823-600 HOSE (5X8.2X600)HOSE (5X8.2X600)
-
1313681-04010 CAPCAP
-
1413278-47090 O RINGO RING
-
1513418-38A00 HOLDER, GUIDEHOLDER, GUIDE
-
1613411-01400 PLUNGER ASSYPLUNGER ASSY
-
1713417-08210 SPRINGSPRING
-
1809492-65005 JET, PILOT AIR (65)JET, PILOT AIR (65)
-
1909492-40021 JET, PILOT (40)JET, PILOT (40)
-
2013502-38A00 COVERCOVER
-
2113500-05A10 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
2213503-38B00 SPRINGSPRING
-
2313389-37400 PLATEPLATE
-
2402122-04103 SCREWSCREW
-
2513251-38A00 O RINGO RING
-
2613385-05A11 HOLDERHOLDER
-
2709491-25018 JET, MAIN (127.5)JET, MAIN (127.5)
-
2813247-13A00 SCREW, DRAINSCREW, DRAIN
-
2909404-06432 CLAMPCLAMP
-
3013480-05A10 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
3113481-45C10 SPRINGSPRING
-
3213484-38A00 COVERCOVER
-
3313601-04148 SCREWSCREW
-
3408310-00047 NUTNUT
-
3502112-04303 SCREWSCREW
-
3613554-38A00 LEVER ASSYLEVER ASSY
-
3713376-19F00 FILTERFILTER
-
3813374-35C00 O RINGO RING
-
3913370-39A00 VALVE ASSY, NEEDLEVALVE ASSY, NEEDLE
-
4013602-05A10 SCREWSCREW
-
4113250-38B00 FLOATFLOAT
-
4213254-20010 PIN, FLOATPIN, FLOAT
-
4302112-05127 SCREWSCREW
-
4413523-46110 WASHERWASHER
-
4502112-05063 SCREWSCREW
-
4613415-38300 E RINGE RING
-
4713671-38A00 CLIPCLIP
-
4809352-60103-600 PROTECTOR (6X10X600)PROTECTOR (6X10X600)
-
4913279-47070 SCREW, AIR (1,1/4) (US & CANADA)SCREW, AIR (1,1/4) (US & CANADA)
-
4913279-47070 SCREW, AIR (2.0) (CALIF. ONLY)SCREW, AIR (2.0) (CALIF. ONLY)
-
5013268-47070 SPRINGSPRING
-
5113295-29900 O RINGO RING
-
5213291-29900 WASHERWASHER
-
5313281-05A00 PLUGPLUG
-
5413683-38B01 HOSE (5X8X430) (CALIF. ONLY)HOSE (5X8X430) (CALIF. ONLY)
-
5513683-38A21 HOSE ASSY, FUELHOSE ASSY, FUEL
-
5613641-38A01 CABLE, ID SYNCROCABLE, ID SYNCRO
