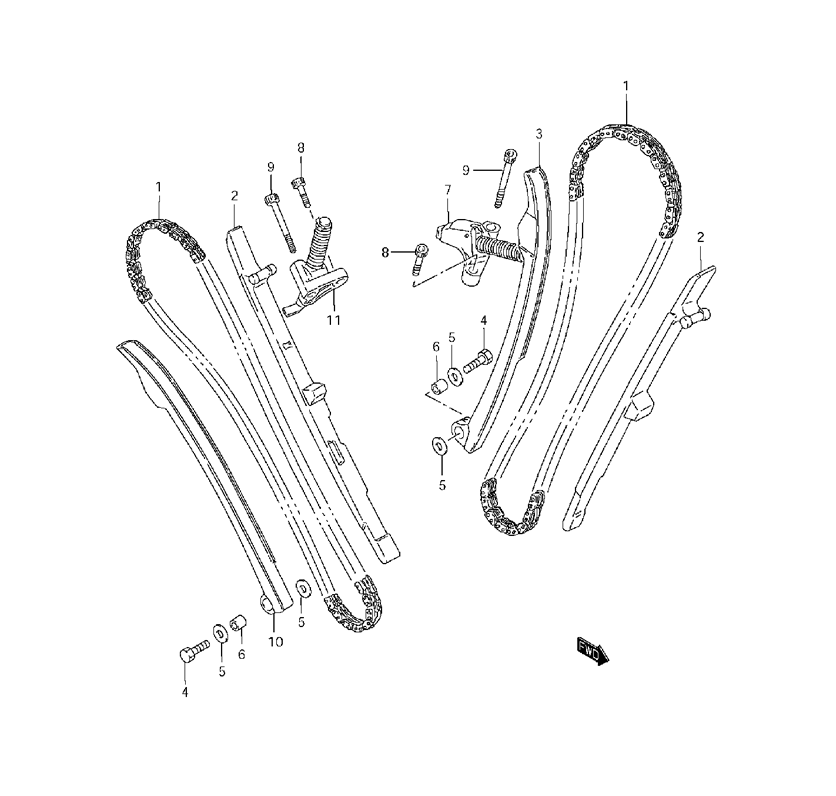

CAM CHAIN ASSY. W/ TENSIONER для Suzuki VS800 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
112760-38A20 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-38A02 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-38A01 TENSIONER, CAM CHAIN FRONTTENSIONER, CAM CHAIN FRONT
-
409100-06129 BOLT (6X26)BOLT (6X26)
-
508211-06182 WASHERWASHER
-
609180-06148 SPACERSPACER
-
712831-38A01 ADJUSTER ASSY, TENSIONER FRONTADJUSTER ASSY, TENSIONER FRONT
-
807130-0620B BOLTBOLT
-
907130-0645B BOLTBOLT
-
1012816-38A01 TENSIONER, CAM CHAIN REARTENSIONER, CAM CHAIN REAR
-
1112832-38A01 ADJUSTER ASSY, TENSIONER REARADJUSTER ASSY, TENSIONER REAR
