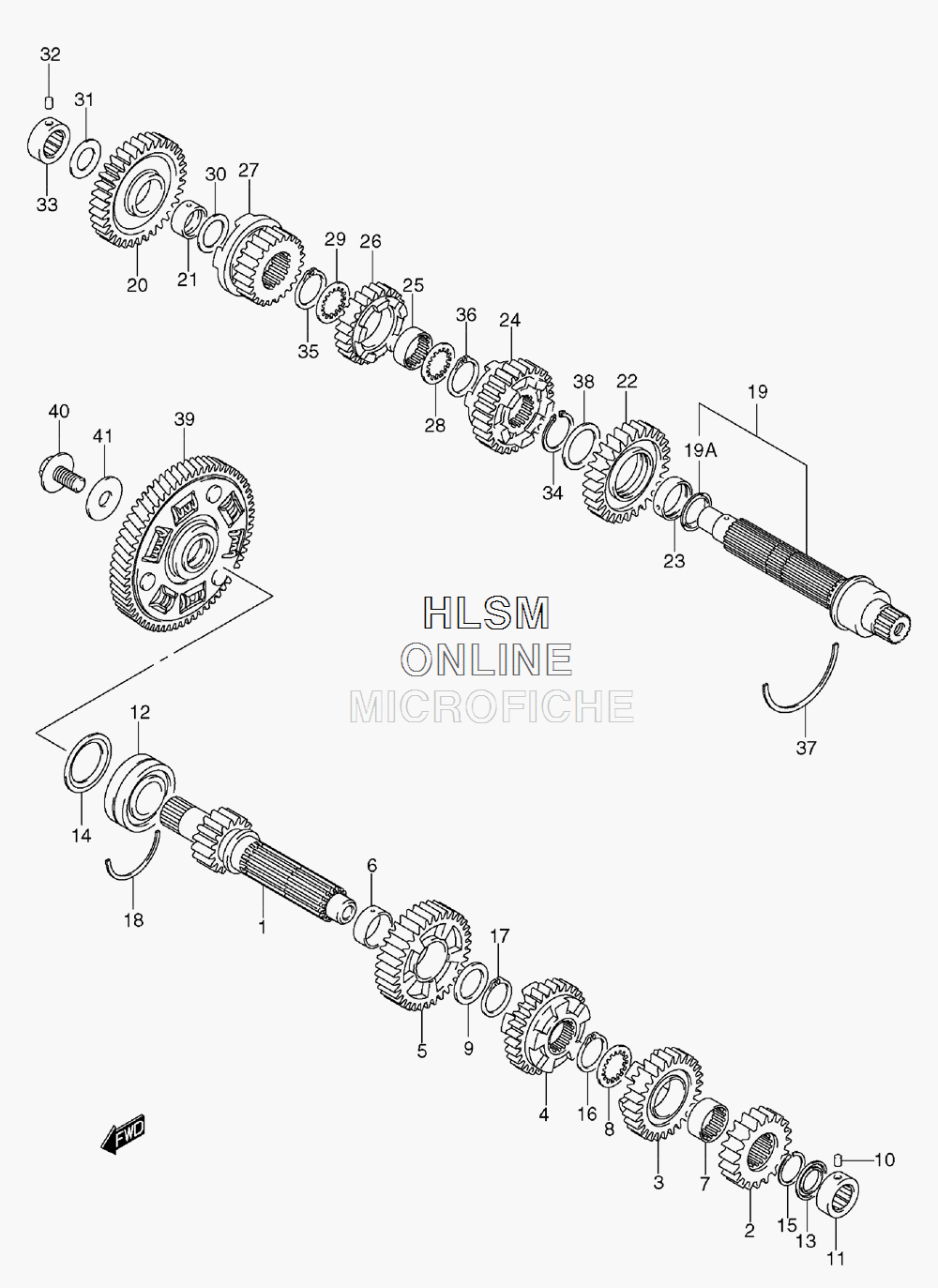

TRANSMISSION для Suzuki VLR1800T K9 - 2009 года выпуска
-
№АртикулНазвание
-
124121-48G10 SHAFT, CNTR (NT:16)SHAFT, CNTR (NT:16)
-
224221-48G10 GEAR, 2ND DRIVE (NT:20)GEAR, 2ND DRIVE (NT:20)
-
324231-48G00 GEAR, 3RD DRIVE (NT:28)GEAR, 3RD DRIVE (NT:28)
-
424241-48G00 GEAR, 4TH DRIVE (NT:29)GEAR, 4TH DRIVE (NT:29)
-
524251-48G00 GEAR, 5TH DRIVE (NT:35)GEAR, 5TH DRIVE (NT:35)
-
624252-24F10 BUSH, 5TH DRIVE GEARBUSH, 5TH DRIVE GEAR
-
724262-24F10 BUSH, 3RD DRIVE GEARBUSH, 3RD DRIVE GEAR
-
809167-27003 WASHER, 3RD DRIVE GEARWASHER, 3RD DRIVE GEAR
-
909181-27014 WASHER, 5TH DRIVE GEARWASHER, 5TH DRIVE GEAR
-
1009261-06003 PIN, CNTR SHAFT BRG, LPIN, CNTR SHAFT BRG, L
-
1109263-20087 BEARING, CNTR SHAFT, LBEARING, CNTR SHAFT, L
-
1209267-25012 BEARING, CNTR SHAFT, RBEARING, CNTR SHAFT, R
-
1309285-20006 SEAL, OILSEAL, OIL
-
1409285-34011 SEAL, COUNTER SHAFT, RSEAL, COUNTER SHAFT, R
-
1509380-27004 CIRCLIP, 2ND DRIVE GEARCIRCLIP, 2ND DRIVE GEAR
-
1609380-27006 CIRCLIP, 3RD DRIVE GEARCIRCLIP, 3RD DRIVE GEAR
-
1709380-27006 CIRCLIP, 5TH DRIVE GEARCIRCLIP, 5TH DRIVE GEAR
-
1809390-62012 C RING, CNTR SHAFT BRG, RC RING, CNTR SHAFT BRG, R
-
1924130-48G01 SHAFT, DRIVESHAFT, DRIVE
-
19A24136-48G01 RING, DRIVE SHAFT FRICTRING, DRIVE SHAFT FRICT
-
2024311-48G00 GEAR, 1ST DRIVEN (NT:35)GEAR, 1ST DRIVEN (NT:35)
-
2124312-24F10 BUSH, 1ST DRIVEN GEARBUSH, 1ST DRIVEN GEAR
-
2224321-48G01 GEAR, 2ND DRIVEN (NT:28)GEAR, 2ND DRIVEN (NT:28)
-
2324322-48G00 BUSH, 2ND DRIVEN GEARBUSH, 2ND DRIVEN GEAR
-
2424331-48G00 GEAR, 3RD DRIVEN (NT:27)GEAR, 3RD DRIVEN (NT:27)
-
2524332-24F10 BUSH, 4TH DRIVEN GEARBUSH, 4TH DRIVEN GEAR
-
2624341-48G00 GEAR, 4TH DRIVEN (NT:24)GEAR, 4TH DRIVEN (NT:24)
-
2724351-48G00 GEAR, 5TH DRIVEN (NT:24)GEAR, 5TH DRIVEN (NT:24)
-
2809167-30008 WASHER, 4TH DRIVEN GEARWASHER, 4TH DRIVEN GEAR
-
2909167-30008 WASHER, 4TH DRIVEN GEARWASHER, 4TH DRIVEN GEAR
-
3009181-20251 WASHER, 1ST DRIVEN GEARWASHER, 1ST DRIVEN GEAR
-
3109181-24005 WASHER, 1ST DRIVEN GEARWASHER, 1ST DRIVEN GEAR
-
3209261-06003 PIN, DRIVE SHAFT BRG, RPIN, DRIVE SHAFT BRG, R
-
3309263-20087 BEARING, DRIVE SHAFT, RBEARING, DRIVE SHAFT, R
-
3409380-30009 CIRCLIP, 2ND DRIVEN GEARCIRCLIP, 2ND DRIVEN GEAR
-
3509380-30009 CIRCLIP, 4TH DRIVEN GEAR, RCIRCLIP, 4TH DRIVEN GEAR, R
-
3609380-30009 CIRCLIP, 4TH DRIVEN GEAR, LCIRCLIP, 4TH DRIVEN GEAR, L
-
3709390-80004 C RING, DRIVE SHAFT BRG, LC RING, DRIVE SHAFT BRG, L
-
3808211-30403 WASHER, 2ND DRIVEN GEARWASHER, 2ND DRIVEN GEAR
-
3921200-22810 GEAR ASSY, PRIMARY DRIVENGEAR ASSY, PRIMARY DRIVEN
-
4009103-12084 BOLT,12X24BOLT,12X24
-
4109160-12045 WASHER, PRIMARY DRIVENWASHER, PRIMARY DRIVEN
