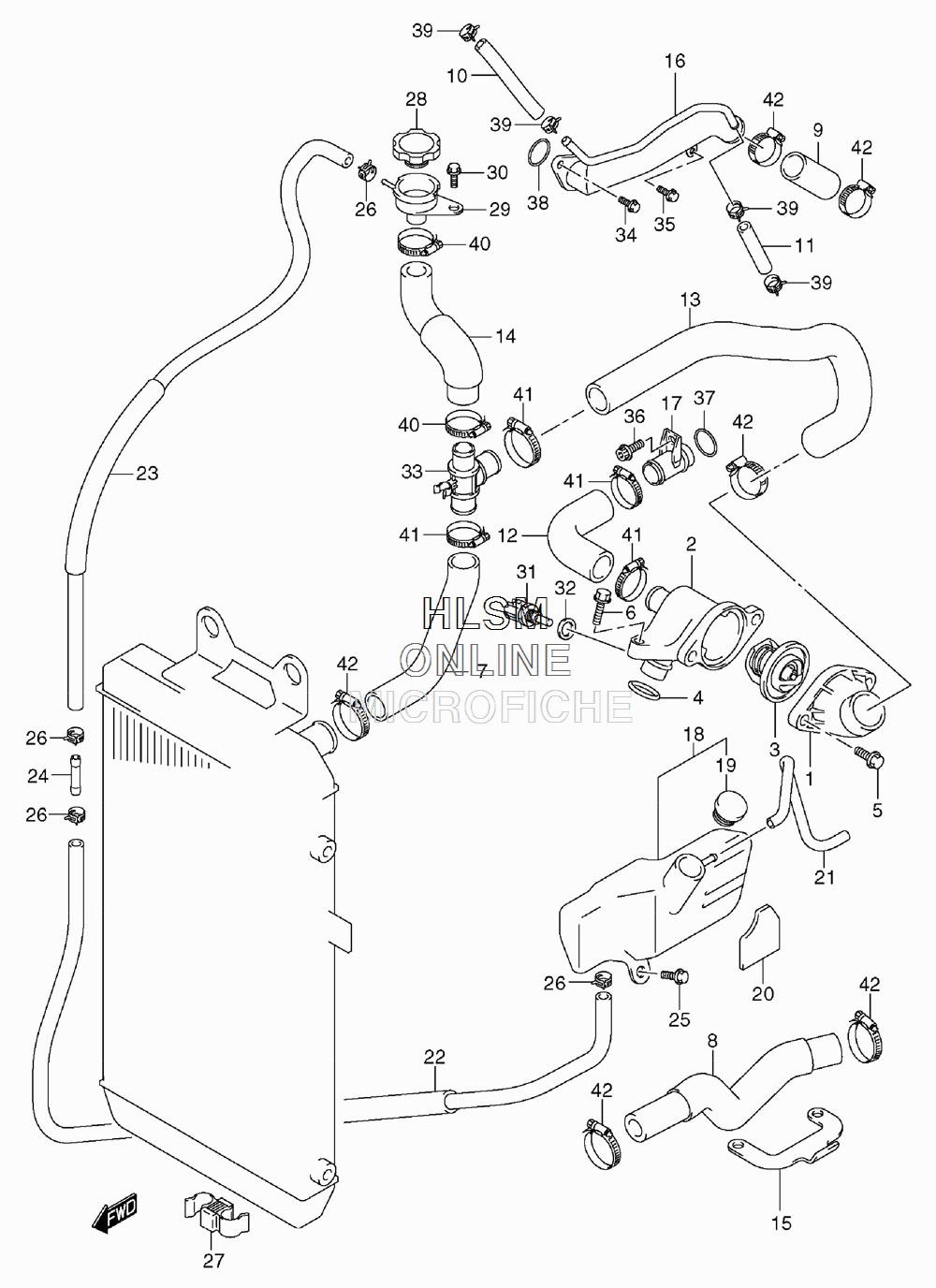

RADIATOR HOSE W/ RESERVOIR для Suzuki VLR1800T K9 - 2009 года выпуска
-
№АртикулНазвание
-
117661-48G10 COVER, THERMOSTATCOVER, THERMOSTAT
-
217662-48G00 CONNECTOR, THERMOSTAT INLETCONNECTOR, THERMOSTAT INLET
-
317670-06G50 THERMOSTAT, WATERTHERMOSTAT, WATER
-
409280-18009 O RINGO RING
-
501550-0620A BOLTBOLT
-
601547-0625A BOLTBOLT
-
717851-22H00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
817852-22H00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
917853-48G00 HOSE, CYLINDER INLETHOSE, CYLINDER INLET
-
1017854-48G00 HOSE, WATER BYPASS UPPERHOSE, WATER BYPASS UPPER
-
1117855-48G00 HOSE, WATER BYPASS LOWERHOSE, WATER BYPASS LOWER
-
1217856-48G00 HOSE, REAR CYL HEAD OUTLETHOSE, REAR CYL HEAD OUTLET
-
1317857-22H00 HOSE, THERMOSTAT OUTLETHOSE, THERMOSTAT OUTLET
-
1417858-22H00 HOSE, CONDUCTIONHOSE, CONDUCTION
-
1517859-48G00 BRACKETBRACKET
-
1617860-48G00 PIPE, CYL WATER INLETPIPE, CYL WATER INLET
-
1717890-06G20 UNIONUNION
-
1817910-22H00 TANK ASSY, RESERVOIR (INCL. 19)TANK ASSY, RESERVOIR (INCL. 19)
-
1917931-02FA0 CAPCAP
-
2017912-22H00 CUSHIONCUSHION
-
2117982-22H00 HOSE, TANK OVERFLOWHOSE, TANK OVERFLOW
-
2217981-22H00 HOSE, TANK INLET NO.1HOSE, TANK INLET NO.1
-
2317981-22H10 HOSE, TANK INLET NO.2HOSE, TANK INLET NO.2
-
2409364-06005 JOINT, HOSEJOINT, HOSE
-
2509111-06085 BOLT (6X12)BOLT (6X12)
-
2609401-08411 CLIPCLIP
-
2709408-00224 CLAMPCLAMP
-
2817730-12C30 CAPCAP
-
2917791-24D00 CONDUCTIONCONDUCTION
-
3001550-0620A BOLTBOLT
-
3113650-49X00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
3209168-12017 GASKETGASKET
-
3317891-48G00 JOINT, 3 WAYJOINT, 3 WAY
-
3409103-06274 BOLTBOLT
-
3509103-06280 BOLTBOLT
-
3607130-0612A BOLTBOLT
-
3709280-18009 O RINGO RING
-
3809280-26005 O RINGO RING
-
3909401-12409 CLIPCLIP
-
4009402-28513 CLAMPCLAMP
-
4109402-32512 CLAMPCLAMP
-
4209402-38512 CLAMPCLAMP
