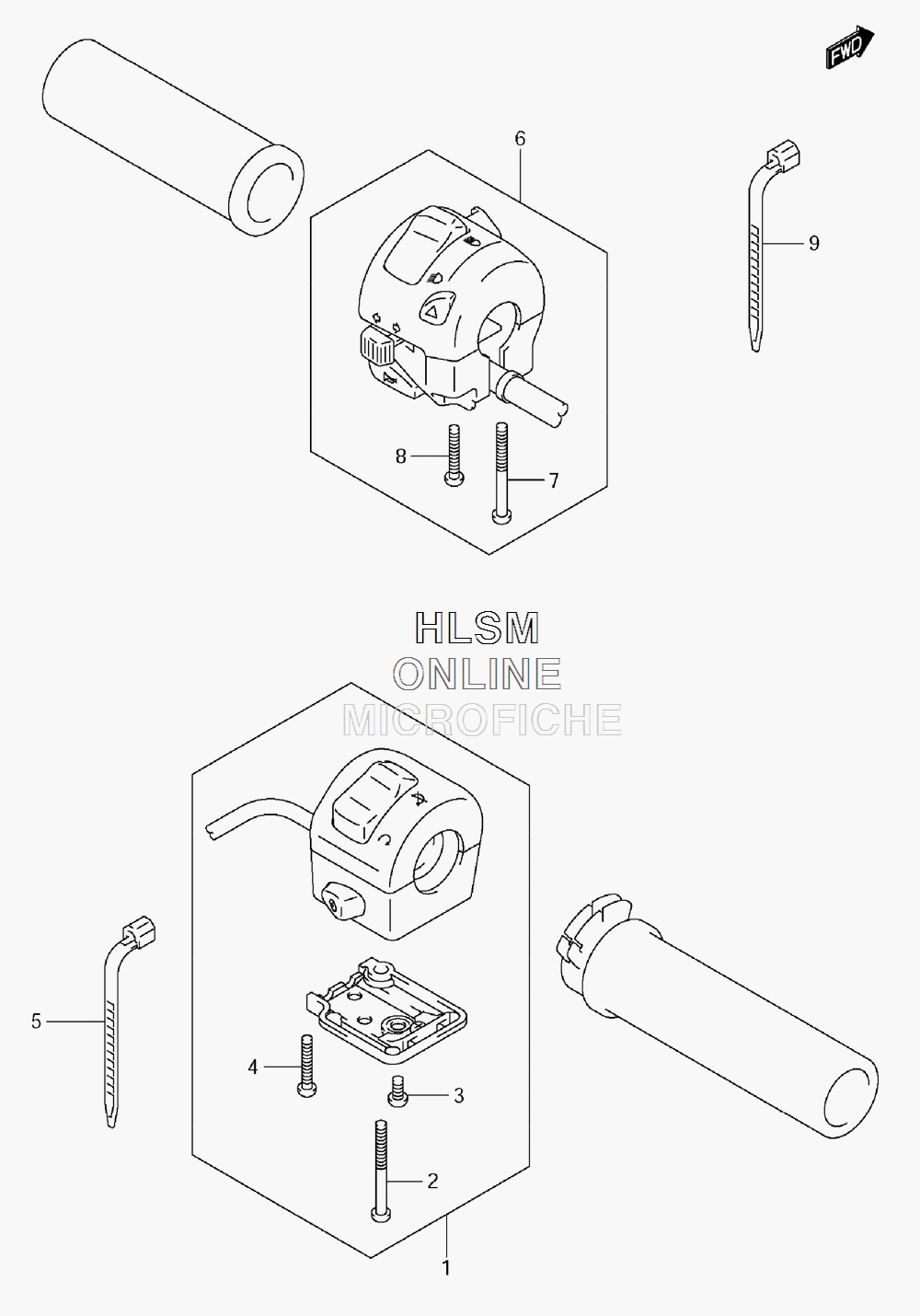

HANDLEBAR - LEVERS / SWITCHES для Suzuki VLR1800T K9 - 2009 года выпуска
-
№АртикулНазвание
-
137200-41FC1 SWITCH ASSY, HANDLE, R (INCL. 2-4)SWITCH ASSY, HANDLE, R (INCL. 2-4)
-
202112-0545B SCREWSCREW
-
302112-0510B SCREWSCREW
-
402112-0535B SCREWSCREW
-
509407-14407 CLAMP (L:145)CLAMP (L:145)
-
637400-41FC0 SWITCH ASSY, HANDLE, L (INCL. 7-8)SWITCH ASSY, HANDLE, L (INCL. 7-8)
-
702112-0545B SCREWSCREW
-
802112-0530B SCREWSCREW
-
909407-14407 CLAMP, HANDLE SWITCHCLAMP, HANDLE SWITCH
