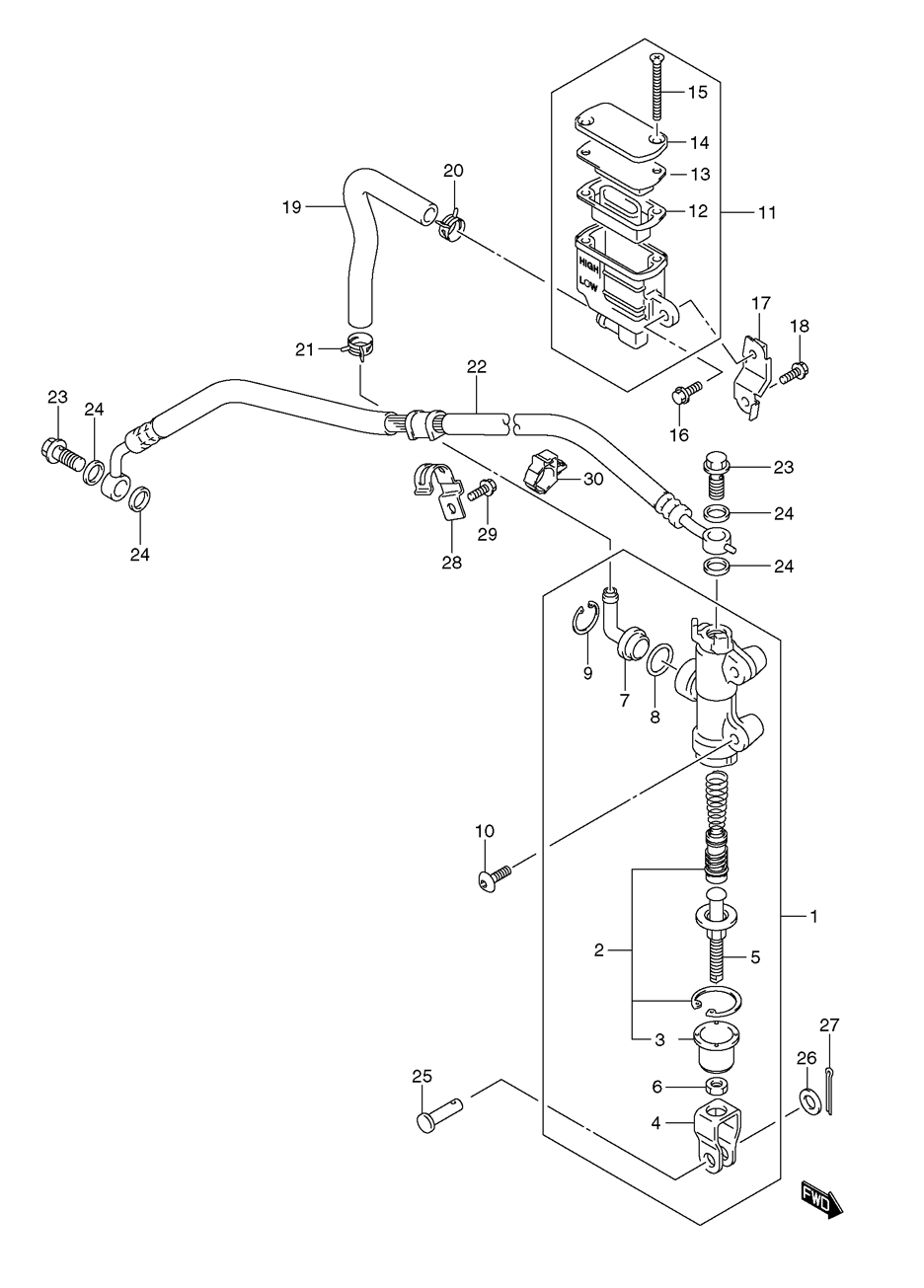

BRAKE - REAR MASTER CYLINDER для Suzuki GSX-R750 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
169600-01H20 CYLINDER ASSEMBLY, REAR MASTERCYLINDER ASSEMBLY, REAR MASTER
-
269600-34820 ...PISTON / CAP SET...PISTON / CAP SET
-
369691-00A00 ......BOOT......BOOT
-
469692-22H00 ...YOKE...YOKE
-
569670-01H00 ...ROD, PUSH...ROD, PUSH
-
669693-05A00 ...NUT...NUT
-
769672-00B20 ...CONNECTOR...CONNECTOR
-
869686-34200 ...O RING...O RING
-
969674-00B20 ...CIRCLIP...CIRCLIP
-
1009139-06125 BOLTBOLT
-
1169740-01H10 TANK ASSEMBLY, REAR RESERVOIRTANK ASSEMBLY, REAR RESERVOIR
-
1269667-01H00 ...DIAPHRAGM...DIAPHRAGM
-
1369668-01H00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
1469669-01H00 ...CAP...CAP
-
1569689-01H00 ...SCREW...SCREW
-
1601547-0612A BOLT, RESERVOIR TANKBOLT, RESERVOIR TANK
-
1769750-01H00 BRACKET, RR RESERVOIR TANKBRACKET, RR RESERVOIR TANK
-
1801547-0612A BOLT, BRACKETBOLT, BRACKET
-
1969730-01H10 HOSE, RESERVOIR TANKHOSE, RESERVOIR TANK
-
2009401-12404 CLAMPCLAMP
-
2109401-14410 CLIP, LOWERCLIP, LOWER
-
2269480-01H00 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
2309360-10062 BOLT, BRAKE FLUIDBOLT, BRAKE FLUID
-
2409161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
2509200-06068 PINPIN
-
2608322-0106A WASHERWASHER
-
2704111-2015A PIN, COTTERPIN, COTTER
-
2869268-01H00 CLAMP, RR BRAKE HOSECLAMP, RR BRAKE HOSE
-
2901547-0612A BOLTBOLT
-
3009403-17306 GUIDE, RR BRAKE HOSEGUIDE, RR BRAKE HOSE
