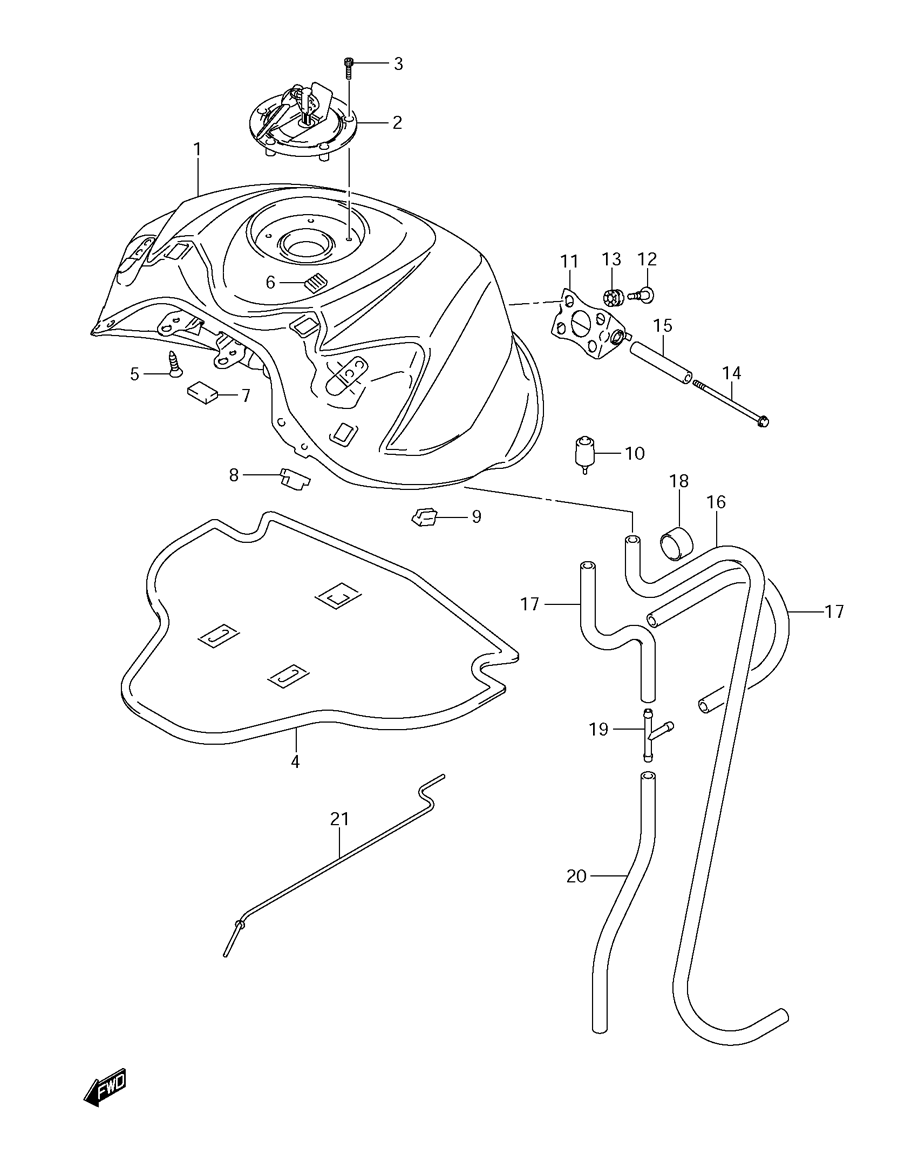

FUEL TANK для Suzuki GSX-R750 K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    44100-37H00-019 TANK ASSEMBLY, FUEL (BLACK) (019 FOR CRU) (EXCEPT CALF.)
    TANK ASSEMBLY, FUEL (BLACK) (019 FOR CRU) (EXCEPT CALF.)
  • 1
    44100-37H00-YPA TANK ASSEMBLY, FUEL (WHITE) (YPA FOR EAH) (EXCEPT CALF.)
    TANK ASSEMBLY, FUEL (WHITE) (YPA FOR EAH) (EXCEPT CALF.)
  • 1
    44100-37H00-YMG TANK ASSEMBLY, FUEL (GOLD) (YMG FOR FGG) (EXCEPT CALF.)
    TANK ASSEMBLY, FUEL (GOLD) (YMG FOR FGG) (EXCEPT CALF.)
  • 1
    44100-37H00-YSF TANK ASSEMBLY, FUEL (BLUE) (YSF FOR GLR) (EXCEPT CALF.)
    TANK ASSEMBLY, FUEL (BLUE) (YSF FOR GLR) (EXCEPT CALF.)
  • 1
    44100-37H20-019 TANK ASSEMBLY, FUEL (BLACK) (019 FOR CRU) (FOR CALF. ONLY)
    TANK ASSEMBLY, FUEL (BLACK) (019 FOR CRU) (FOR CALF. ONLY)
  • 1
    44100-37H20-YPA TANK ASSEMBLY, FUEL (WHITE) (YPA FOR EAH) (FOR CALF. ONLY)
    TANK ASSEMBLY, FUEL (WHITE) (YPA FOR EAH) (FOR CALF. ONLY)
  • 1
    44100-37H20-YMG TANK ASSEMBLY, FUEL (GOLD) (YMG FOR FGG) (FOR CALF. ONLY)
    TANK ASSEMBLY, FUEL (GOLD) (YMG FOR FGG) (FOR CALF. ONLY)
  • 1
    44100-37H20-YSF TANK ASSEMBLY, FUEL (BLUE) (YSF FOR GLR) (FOR CALF. ONLY)
    TANK ASSEMBLY, FUEL (BLUE) (YSF FOR GLR) (FOR CALF. ONLY)
  • 2
    44200-16850 CAP SET, FUEL TANK (EXCEPT CALF.)
    CAP SET, FUEL TANK (EXCEPT CALF.)
  • 2
    44200-16860 CAP SET, FUEL TANK (FOR CALF. ONLY)
    CAP SET, FUEL TANK (FOR CALF. ONLY)
  • 3
    09106-05017 SCREW
    SCREW
  • 4
    44191-37H00 SHIELD, FUEL TANK HEAT
    SHIELD, FUEL TANK HEAT
  • 5
    09139-06172 SCREW, BRACKET
    SCREW, BRACKET
  • 6
    44572-44G00 FASTENER, COVER
    FASTENER, COVER
  • 7
    09329-18001 CUSHION, BRACKET
    CUSHION, BRACKET
  • 8
    44541-41G00 CUSHION, SIDE
    CUSHION, SIDE
  • 9
    44276-21H00 CUSHION, TANK COVER
    CUSHION, TANK COVER
  • 10
    44542-41G00 CUSHION, REAR
    CUSHION, REAR
  • 11
    44530-41G00 BRACKET, REAR
    BRACKET, REAR
  • 12
    44543-37H00 SCREW, BRACKET
    SCREW, BRACKET
  • 13
    09320-08071 CUSHION
    CUSHION
  • 14
    09106-06119 BOLT, JOINT
    BOLT, JOINT
  • 15
    44561-18G00 SPACER, JOINT
    SPACER, JOINT
  • 16
    44423-41G00 HOSE, DRAIN
    HOSE, DRAIN
  • 17
    44424-38G00 HOSE, BREATHER
    HOSE, BREATHER
  • 18
    09352-12163-600 HOSE, JOINT
    HOSE, JOINT
  • 19
    09367-06002 3 WAY
    3 WAY
  • 20
    09352-50823-00B HOSE, BREATHER NO.2
    HOSE, BREATHER NO.2
  • 21
    44574-35F00 STAY, FUEL TANK
    STAY, FUEL TANK
