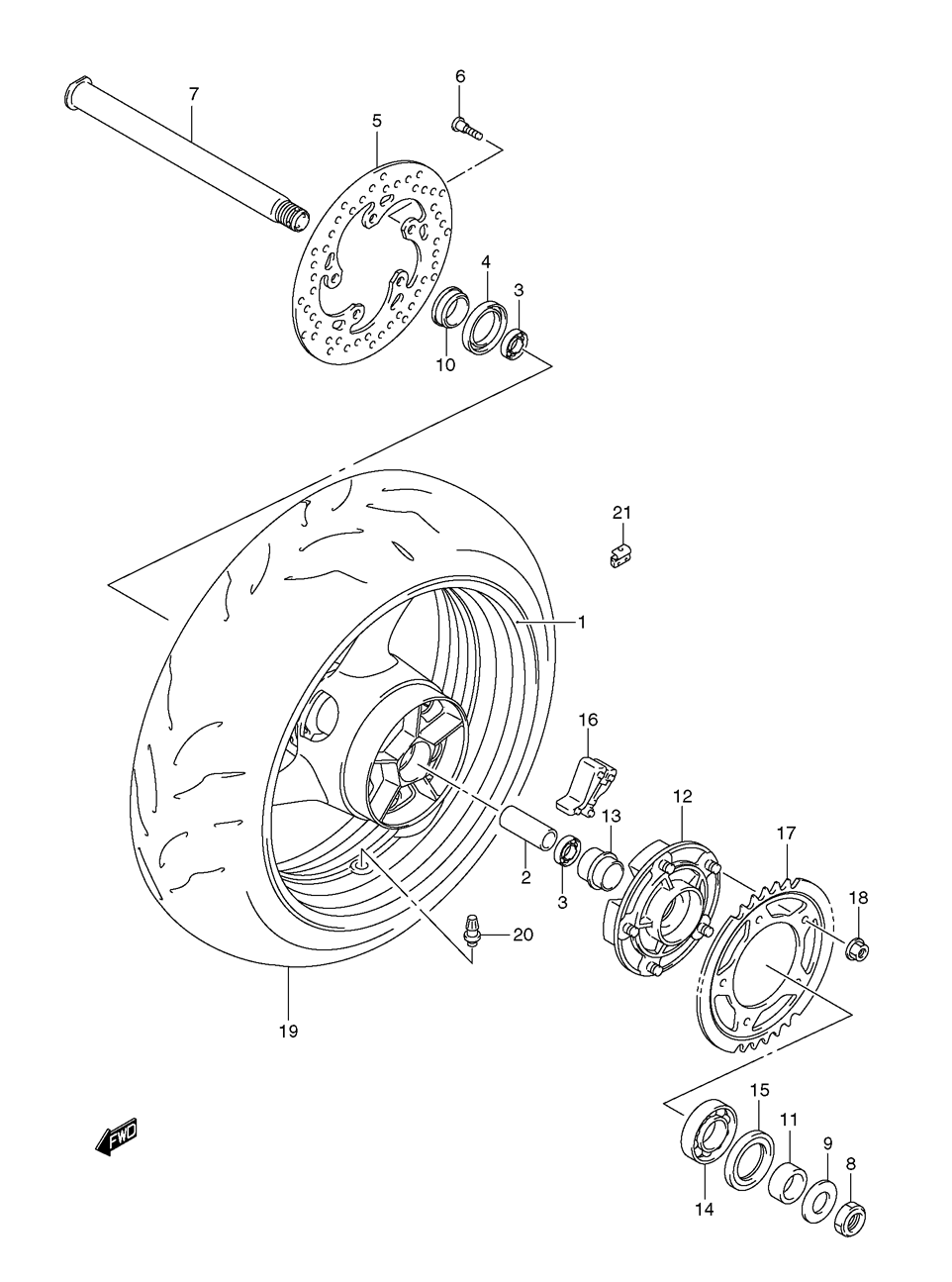

WHEEL - REAR для Suzuki GSX-R750 K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    64111-37H00-019 WHEEL, REAR (17M/CXMT5.50) (BLACK) (019 FOR CRU/ECE/EAH/FGG/GLR)
    WHEEL, REAR (17M/CXMT5.50) (BLACK) (019 FOR CRU/ECE/EAH/FGG/GLR)
  • 1
    64111-37H00-YMY WHEEL, REAR (17M/CXMT5.50) (SILVER) (YMY FOR CRU)
    WHEEL, REAR (17M/CXMT5.50) (SILVER) (YMY FOR CRU)
  • 2
    64731-01H00 SPACER, HUB BEARING
    SPACER, HUB BEARING
  • 3
    09262-28043 BEARING (28X52X12)
    BEARING (28X52X12)
  • 4
    09284-37001 SEAL, RR WHEEL BEARING, R
    SEAL, RR WHEEL BEARING, R
  • 5
    69211-18G00 DISC, REAR BRAKE
    DISC, REAR BRAKE
  • 6
    09106-08160 BOLT
    BOLT
  • 7
    64711-49G00 AXLE, REAR
    AXLE, REAR
  • 8
    09159-25003 NUT
    NUT
  • 9
    09160-25070 WASHER
    WASHER
  • 10
    64741-35F00 SPACER, AXLE RIGHT HAND
    SPACER, AXLE RIGHT HAND
  • 11
    64751-35F00 SPACER, AXLE LEFT HAND
    SPACER, AXLE LEFT HAND
  • 12
    64610-44G00 DRUM, REAR SPROCKET
    DRUM, REAR SPROCKET
  • 13
    64733-35F00 RETAINER, SPROCKET DRUM
    RETAINER, SPROCKET DRUM
  • 14
    09262-32007 BEARING (32X65X17)
    BEARING (32X65X17)
  • 15
    09285-39001 SEAL (39X65X7)
    SEAL (39X65X7)
  • 16
    64651-44G00 ABSORBER, HUB SHOCK
    ABSORBER, HUB SHOCK
  • 17
    64511-39F00 SPROCKET, REAR (NO. OF TEETH: 45)
    SPROCKET, REAR (NO. OF TEETH: 45)
  • 18
    08319-3110A NUT
    NUT
  • 19
    65110-38H00 TIRE, REAR, 180/55 ZR17M/C (73W)(BRIDGESTONE)
    TIRE, REAR, 180/55 ZR17M/C (73W)(BRIDGESTONE)
  • 20
    43130-24A00 VALVE ASSEMBLY, WHEEL RIM (TR412)
    VALVE ASSEMBLY, WHEEL RIM (TR412)
  • 21
    55411-22H00 BALANCER, WHEEL NO.1
    BALANCER, WHEEL NO.1
  • 21
    55412-22H00 BALANCER, WHEEL NO.2
    BALANCER, WHEEL NO.2
  • 21
    55413-22H00 BALANCER, WHEEL NO.3
    BALANCER, WHEEL NO.3
