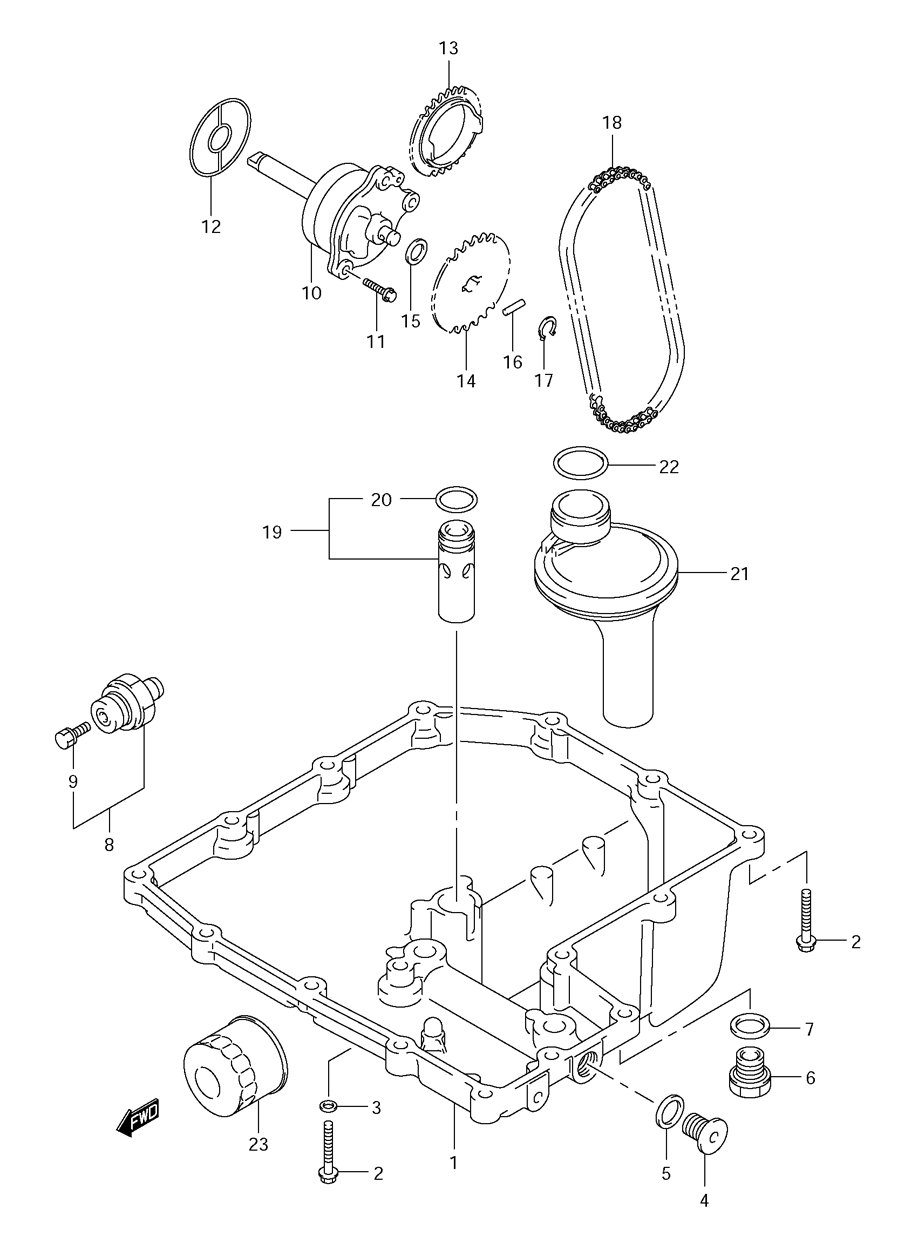

OIL PAN W/ OIL PUMP ASSY. для Suzuki GSX650F K8 - 2008 года выпуска`
-
№АртикулНазвание
-
111511-18H10 PAN, OILPAN, OIL
-
201547-0625A BOLTBOLT
-
309168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
409248-12004 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
509168-12002 GASKET (12.1X16.2X1.2)GASKET (12.1X16.2X1.2)
-
609247-14036 PLUG, OIL DRAINPLUG, OIL DRAIN
-
709168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
837820-33D10 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
937822-33D00 ...BOLT...BOLT
-
1016400-18H00 PUMP ASSEMBLY, OILPUMP ASSEMBLY, OIL
-
1101547-0620A BOLTBOLT
-
1216491-33E00 O RINGO RING
-
1316321-01H00 SPROCKET, DRIVESPROCKET, DRIVE
-
1416331-18H00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
1509181-10158 WASHERWASHER
-
1609261-04009 PINPIN
-
1708331-31109 CIRCLIPCIRCLIP
-
1816310-18H00 CHAIN, OIL PUMP DRIVECHAIN, OIL PUMP DRIVE
-
1916440-24F00 VALVE ASSEMBLY, OIL RELIEFVALVE ASSEMBLY, OIL RELIEF
-
2009280-13004 ...O RING (DIAMETER: 1.9,INSIDE DIAMETER: 13.0)...O RING (DIAMETER: 1.9,INSIDE DIAMETER: 13.0)
-
2116520-18H00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
2209280-25004 O RINGO RING
-
2316510-03G00-X07 FILTER ASSEMBLY, ENGINE OILFILTER ASSEMBLY, ENGINE OIL
