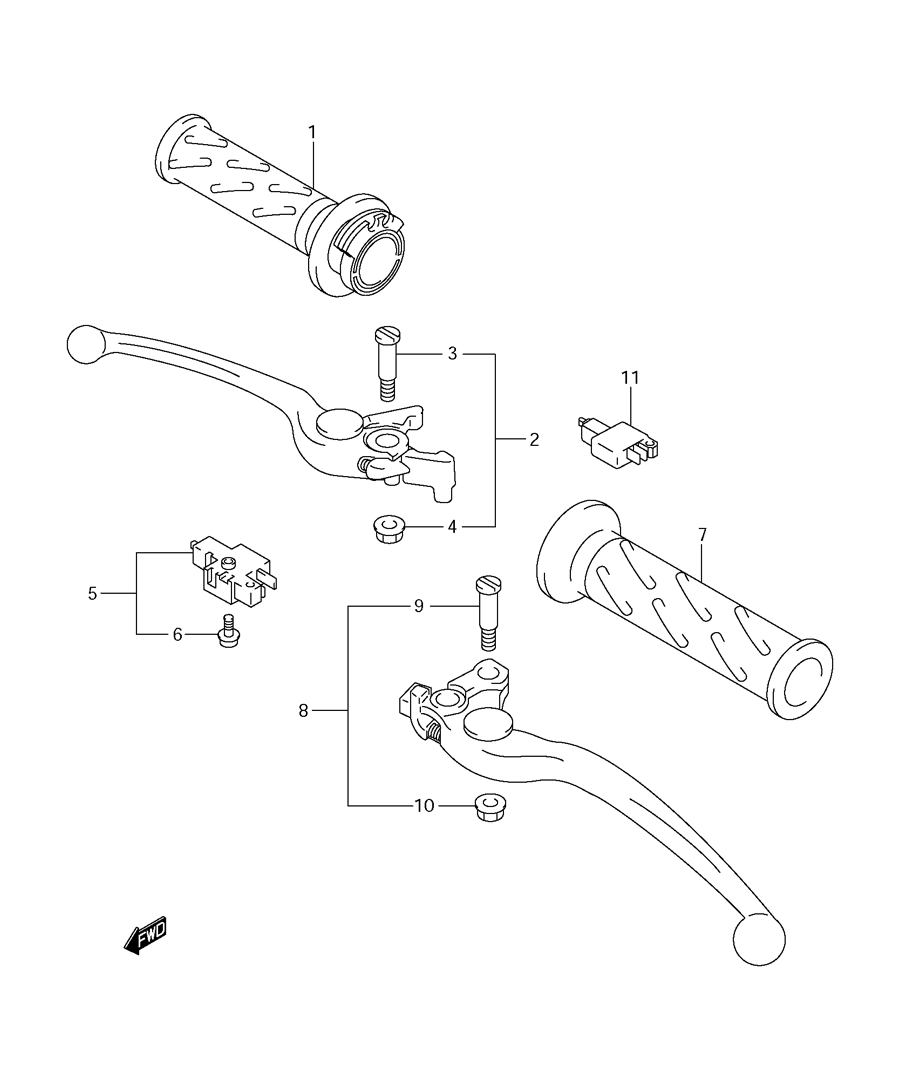

HANDLEBAR - LEVERS для Suzuki GSX650F K8 - 2008 года выпуска`
-
№АртикулНазвание
-
157110-29G01 GRIP, THROTTLEGRIP, THROTTLE
-
257300-44G10 LEVER ASSEMBLY, BRAKELEVER ASSEMBLY, BRAKE
-
357431-17H00 ...BOLT...BOLT
-
408319-2106A ...NUT...NUT
-
557460-17C11 SWITCH ASSEMBLY, STOPSWITCH ASSEMBLY, STOP
-
657465-17C00 ...SCREW...SCREW
-
757211-22D01 GRIP, LEFT HANDGRIP, LEFT HAND
-
857500-24F20 LEVER ASSEMBLY, CLUTCHLEVER ASSEMBLY, CLUTCH
-
957431-17H00 ...BOLT...BOLT
-
1008316-1006B ...NUT...NUT
-
1157560-02FA0 SWITCH ASSEMBLY, CLUTCHSWITCH ASSEMBLY, CLUTCH
