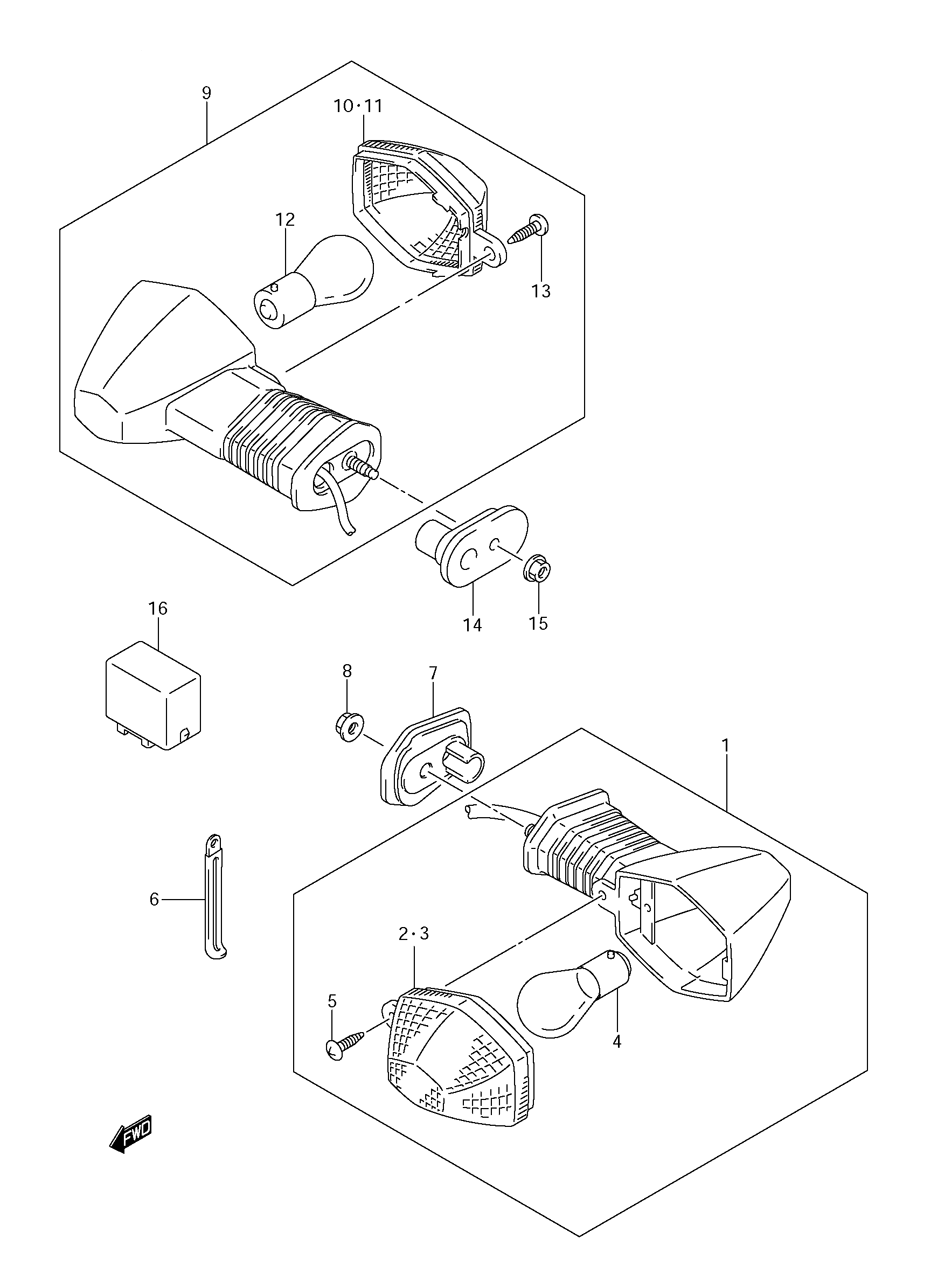

TURN SIGNAL ASSY. для Suzuki GSX650F K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    35601-38G10 LAMP ASSEMBLY, FRONT TURNSIGNAL, RIGHT HAND
    LAMP ASSEMBLY, FRONT TURNSIGNAL, RIGHT HAND
  • 1
    35602-38G10 LAMP ASSEMBLY, FRONT TURNSIGNAL, LEFT HAND
    LAMP ASSEMBLY, FRONT TURNSIGNAL, LEFT HAND
  • 2
    35612-29FA0 ...LENS, RIGHT HAND
    ...LENS, RIGHT HAND
  • 3
    35632-29FA0 ...LENS, LEFT HAND
    ...LENS, LEFT HAND
  • 4
    09471-12186 ...BULB (12V 21W)
    ...BULB (12V 21W)
  • 5
    03241-0416B ...SCREW
    ...SCREW
  • 6
    09404-06429 CLAMP (LENGTH: 45)
    CLAMP (LENGTH: 45)
  • 7
    35629-18G00 PLATE, FRONT TURNSIGNAL
    PLATE, FRONT TURNSIGNAL
  • 8
    08316-1005B NUT
    NUT
  • 9
    35603-29FB0 LAMP ASSEMBLY, REAR TURNSIGNAL, RIGHT
    LAMP ASSEMBLY, REAR TURNSIGNAL, RIGHT
  • 9
    35604-29FB0 LAMP ASSEMBLY, REAR TURNSIGNAL, LEFT
    LAMP ASSEMBLY, REAR TURNSIGNAL, LEFT
  • 10
    35632-29FA0 ...LENS, RIGHT HAND
    ...LENS, RIGHT HAND
  • 11
    35612-29FA0 ...LENS, LEFT HAND
    ...LENS, LEFT HAND
  • 12
    09471-12186 ...BULB (12V 21W)
    ...BULB (12V 21W)
  • 13
    03241-0416B ...SCREW
    ...SCREW
  • 14
    35629-31F40 PLATE, REAR TURNSIGNAL
    PLATE, REAR TURNSIGNAL
  • 15
    08316-1005B NUT
    NUT
  • 16
    38610-03F00 RELAY ASSEMBLY, TURNSIGNAL
    RELAY ASSEMBLY, TURNSIGNAL
