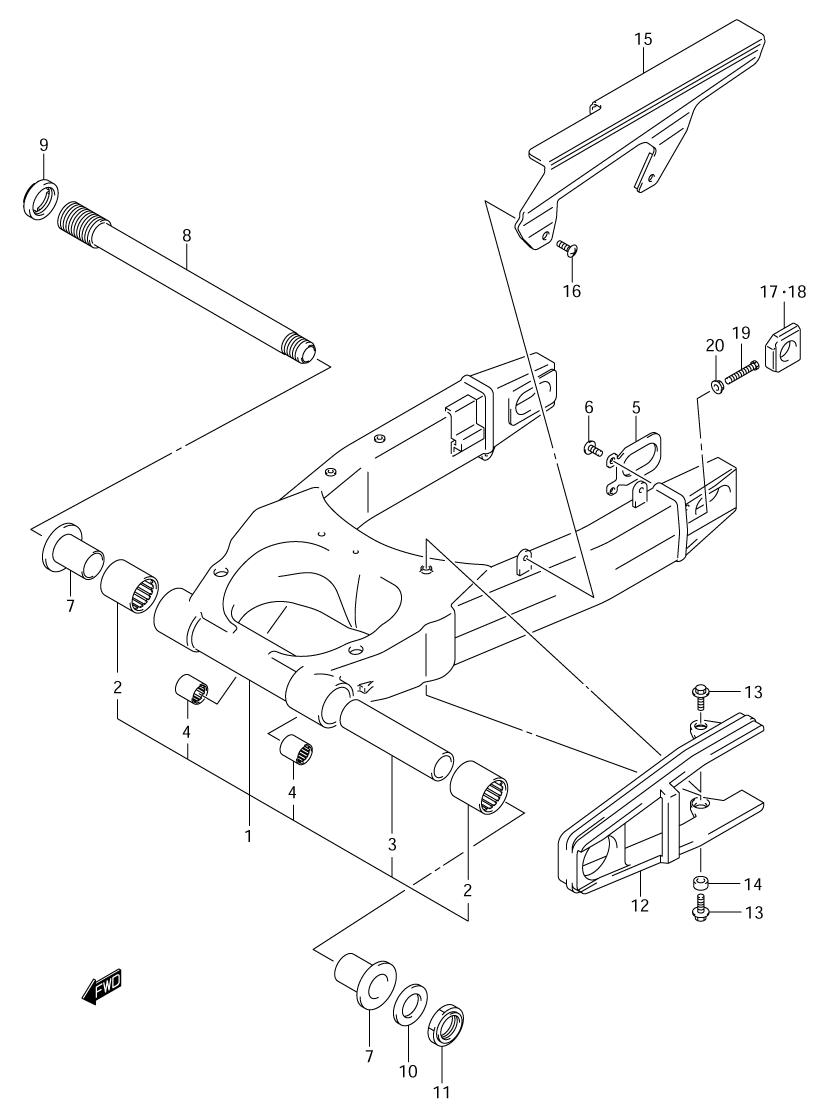

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki SV1000S K5 - 2005 года выпуска`
-
№АртикулНазвание
-
161000-16G40-YAP SWINGING ARM ASSY., REARSWINGING ARM ASSY., REAR
-
209263-30053 ...BEARING, PIVOT (30X40X33)...BEARING, PIVOT (30X40X33)
-
361281-33E10 ...SPACER, CENTER...SPACER, CENTER
-
409263-17039 ...BEARING, CUSHION ROD...BEARING, CUSHION ROD
-
561124-33E00 PLATE, BRACKETPLATE, BRACKET
-
609125-06073 SCREWSCREW
-
761251-16G00 SPACER, BEARINGSPACER, BEARING
-
861211-16G00 SHAFT, PIVOTSHAFT, PIVOT
-
961214-40C31 NUT, PIVOT BOLTNUT, PIVOT BOLT
-
1009160-25070 WASHERWASHER
-
1109159-25001 NUTNUT
-
1261273-16G00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1309116-06192 BOLT (6X20)BOLT (6X20)
-
1409180-06299 SPACERSPACER
-
1561310-16G00 CASE, CHAINCASE, CHAIN
-
1609113-06001 SCREWSCREW
-
1761445-40F00 ADJUSTER, CHAIN, RADJUSTER, CHAIN, R
-
1861446-40F00 ADJUSTER, CHAIN, LADJUSTER, CHAIN, L
-
1909100-08287 BOLT (8X50)BOLT (8X50)
-
2008316-10083 NUTNUT
