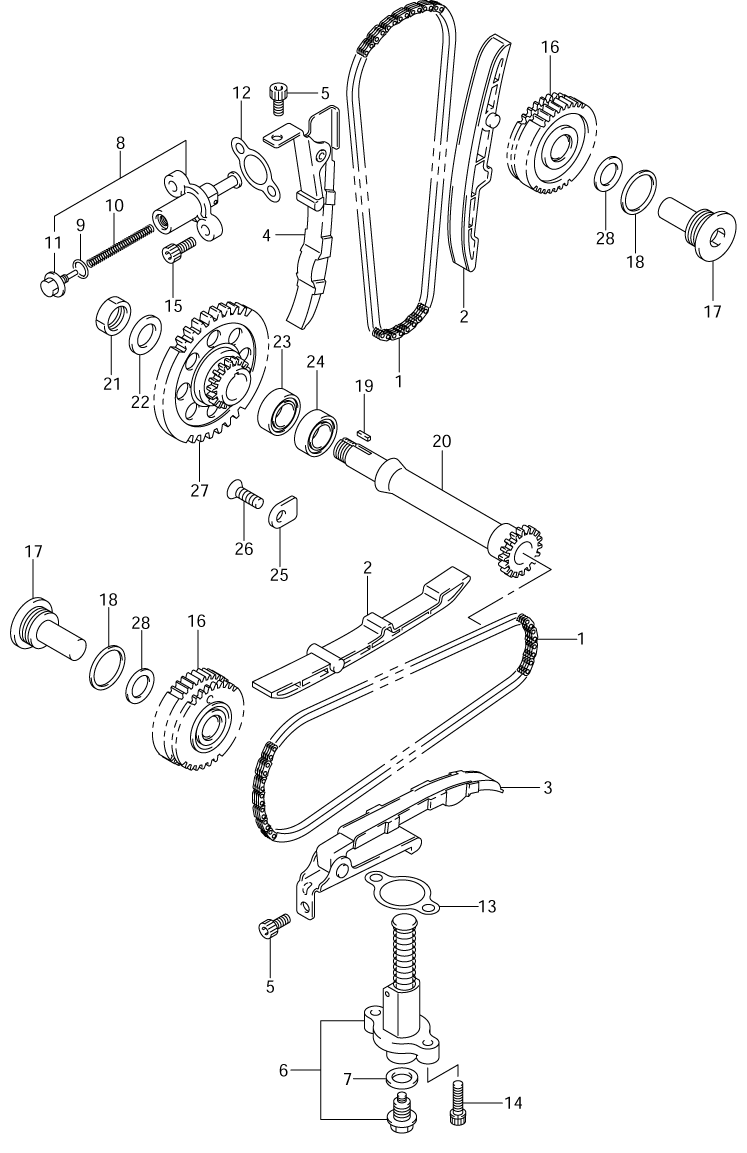

CAM CHAIN ASSY. W/ TENSIONER для Suzuki SV1000S K5 - 2005 года выпуска`
-
№АртикулНазвание
-
112760-23F00 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-06G00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312810-06G00 TENSIONER, FRONT CAM CHAINTENSIONER, FRONT CAM CHAIN
-
412815-06G00 TENSIONER, REAR CAM CHAINTENSIONER, REAR CAM CHAIN
-
507120-06123 BOLTBOLT
-
612832-05A10 ADJUSTER ASSY., FRONT TENSIONEADJUSTER ASSY., FRONT TENSIONE
-
709168-12018 ...GASKET...GASKET
-
812830-30A01 ADJUSTER ASSY., REAR TENSIONERADJUSTER ASSY., REAR TENSIONER
-
912832-02A00 ...O-RING...O-RING
-
1012833-30A01 ...SPRING...SPRING
-
1112834-02A00 ...PLUG...PLUG
-
1212837-19B10 GASKETGASKET
-
1312837-24A10 GASKETGASKET
-
1407130-06253 BOLTBOLT
-
1507130-06203 BOLTBOLT
-
1612750-06G00 GEAR, CAM CHAIN IDLER NO.2GEAR, CAM CHAIN IDLER NO.2
-
1712755-02F01 SHAFT, IDLER NO.2SHAFT, IDLER NO.2
-
1809168-26001 GASKETGASKET
-
1909421-04004 KEYKEY
-
2012716-06G00 SHAFT, IDLERSHAFT, IDLER
-
2109140-16001 NUTNUT
-
2209181-16212 WASHERWASHER
-
2308113-63030 BEARING, (RIGHT)BEARING, (RIGHT)
-
2409262-25006 BEARING, (LEFT)BEARING, (LEFT)
-
2524741-20A00 RETAINER, BEARINGRETAINER, BEARING
-
2609126-06011 SCREWSCREW
-
27-212731-06G01 SPROCKET, IDLER NO.1SPROCKET, IDLER NO.1
-
28-109181-15164 SHIM, CAM CHAIN IDLER,T:0.9SHIM, CAM CHAIN IDLER,T:0.9
-
28-209181-15166 SHIM, CAM CHAIN IDLER,T:1.0SHIM, CAM CHAIN IDLER,T:1.0
-
28-309181-15172 SHIM, CAM CHAIN IDLER,T:1.1SHIM, CAM CHAIN IDLER,T:1.1
-
28-409181-15176 SHIM, CAM CHAIN IDLER,T:1.2SHIM, CAM CHAIN IDLER,T:1.2
-
28-509181-15181 SHIM, CAM CHAIN IDLER,T:1.3SHIM, CAM CHAIN IDLER,T:1.3
-
28-609181-15182 SHIM, CAM CHAIN IDLER,T:1.4SHIM, CAM CHAIN IDLER,T:1.4
