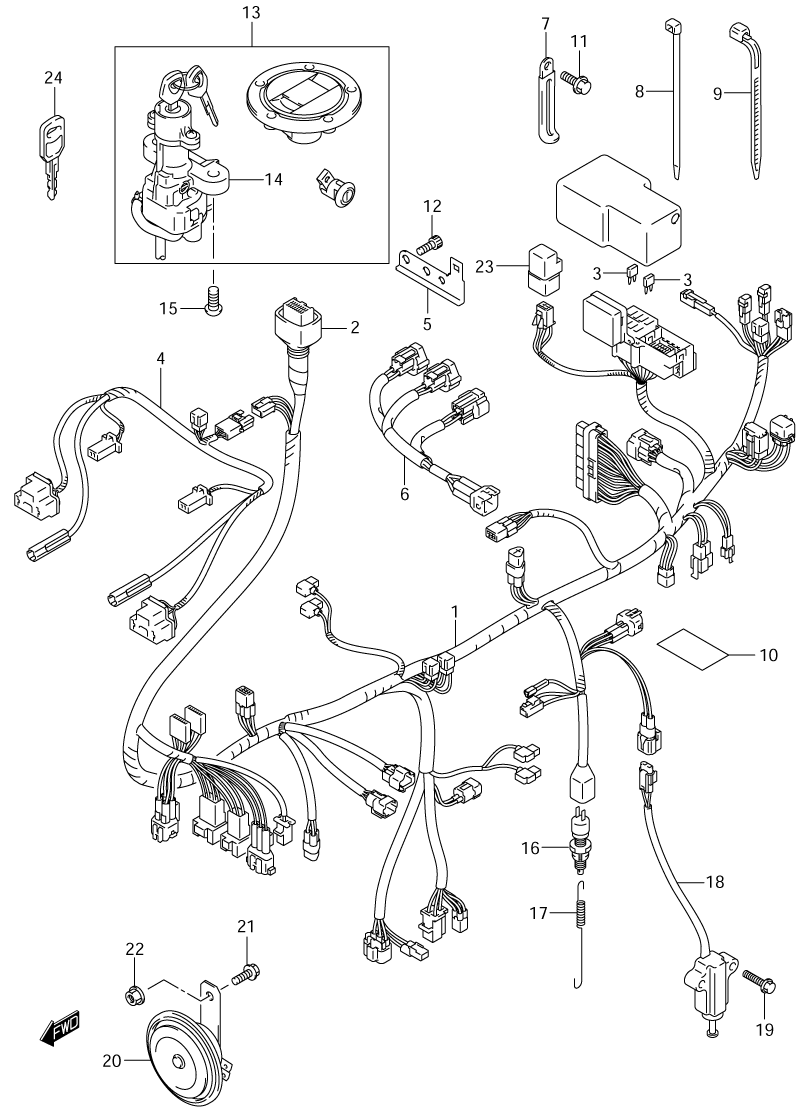

ELECTRICAL - WIRING HARNESS для Suzuki SV1000S K5 - 2005 года выпуска
-
№АртикулНазвание
-
1-336610-16GM0 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
236618-33E00 ...CAP...CAP
-
3-109481-10501 ...FUSE (10A)...FUSE (10A)
-
3-209481-15501 ...FUSE (15A)...FUSE (15A)
-
436620-16G10 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
536687-16G00 HOLDER, COUPLERHOLDER, COUPLER
-
636859-16G00 WIRE, INJECTOR LEADWIRE, INJECTOR LEAD
-
709404-06429 CLAMP (L:45)CLAMP (L:45)
-
809407-14407 CLAMP (L:145)CLAMP (L:145)
-
9-109407-11401 CLAMP (L:95)CLAMP (L:95)
-
9-209407-14403 CLAMP (L:125)CLAMP (L:125)
-
9-309407-18402 CLAMP (L:165)CLAMP (L:165)
-
1036611-16G00 PROTECTOR (28X50X0.5)PROTECTOR (28X50X0.5)
-
1101550-06103 BOLTBOLT
-
1207130-06103 BOLTBOLT
-
13-237000-16820 LOCK SETLOCK SET
-
13-437000-16830 LOCK SETLOCK SET
-
14-237100-16G20 ...LOCK ASSY., STEERING...LOCK ASSY., STEERING
-
1509139-08016 SCREW (8X20)SCREW (8X20)
-
16-237740-45D00 SWITCH ASSY., STOP LAMPSWITCH ASSY., STOP LAMP
-
17-209443-06016 SPRING, STOP LAMPSPRING, STOP LAMP
-
18-237840-16G00 SWITCH ASSY., SIDE STANDSWITCH ASSY., SIDE STAND
-
19-201550-06257 BOLTBOLT
-
2038500-16G00 HORN ASSY.HORN ASSY.
-
2101550-08123 BOLTBOLT
-
2208316-10083 NUTNUT
-
2338740-24X50 RELAY ASSY., FUEL PUMPRELAY ASSY., FUEL PUMP
-
2437146-33E00 KEY, BLANK (OPT)KEY, BLANK (OPT)
