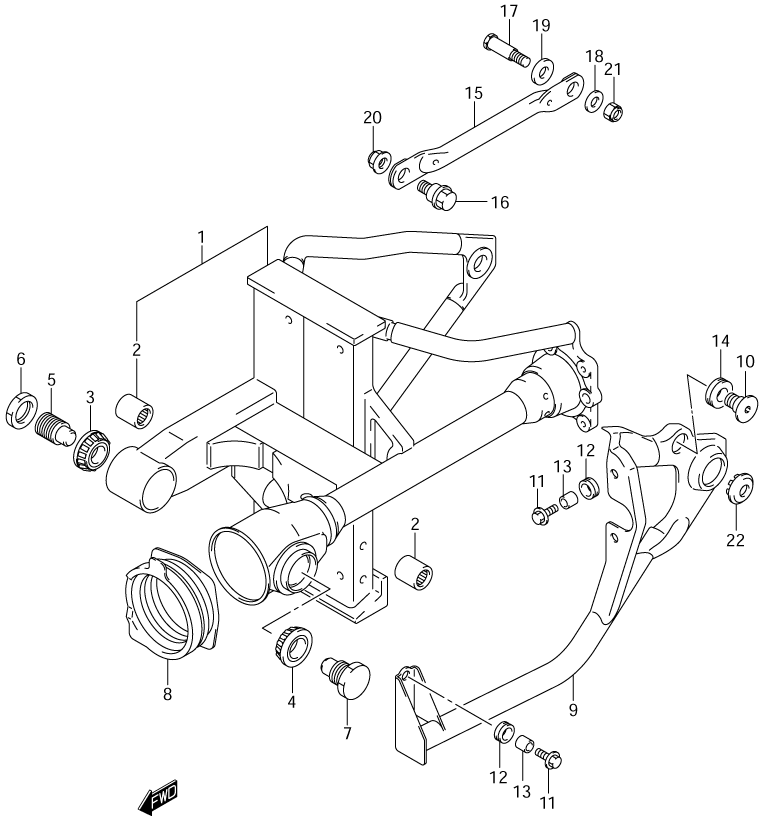

SUSPENSION - REAR SWING ARM для Suzuki VL800 K4 VOLUSIA - 2004 года выпуска
-
№АртикулНазвание
-
161101-41871-019 SWINGING ARM SET, REARSWINGING ARM SET, REAR
-
209263-17037 ...BEARING, ROD (17X24X25)...BEARING, ROD (17X24X25)
-
309265-17013 BEARING, PIVOT (RIGHT) (17X40X13.25,WITH PLATE)BEARING, PIVOT (RIGHT) (17X40X13.25,WITH PLATE)
-
409265-17012 BEARING, PIVOT (LEFT) (17X40X13.25)BEARING, PIVOT (LEFT) (17X40X13.25)
-
561213-24A00 BOLT, PIVOT (RIGHT)BOLT, PIVOT (RIGHT)
-
609140-24007 NUT, PIVOT (RIGHT)NUT, PIVOT (RIGHT)
-
761213-10F00 BOLT, PIVOT (LEFT)BOLT, PIVOT (LEFT)
-
861372-41F00 BOOT, SHAFTBOOT, SHAFT
-
961120-41F10-019 COVER, RR SWGARM (LEFT)COVER, RR SWGARM (LEFT)
-
1061127-41F10 BOLT, RR SWGARM COVER, (RIGHT/REAR)BOLT, RR SWGARM COVER, (RIGHT/REAR)
-
1109116-06152 BOLT, (RIGHT/REAR) SWGARM COVERBOLT, (RIGHT/REAR) SWGARM COVER
-
1209320-10049 CUSHION, COVERCUSHION, COVER
-
1309180-06286 SPACER, COVERSPACER, COVER
-
1409320-22003 CUSHION, COVER (RIGHT/REAR)CUSHION, COVER (RIGHT/REAR)
-
1564310-41F00 TORQUE LINK, REARTORQUE LINK, REAR
-
1609111-10062 BOLT, FRONTBOLT, FRONT
-
1709111-10057 BOLT, REARBOLT, REAR
-
1809160-10085 WASHER, REARWASHER, REAR
-
1909320-12501 CUSHION, REARCUSHION, REAR
-
2008319-31103 NUT, FRONTNUT, FRONT
-
2109159-10027 NUT, REARNUT, REAR
-
2241899-42F10 CAPCAP
