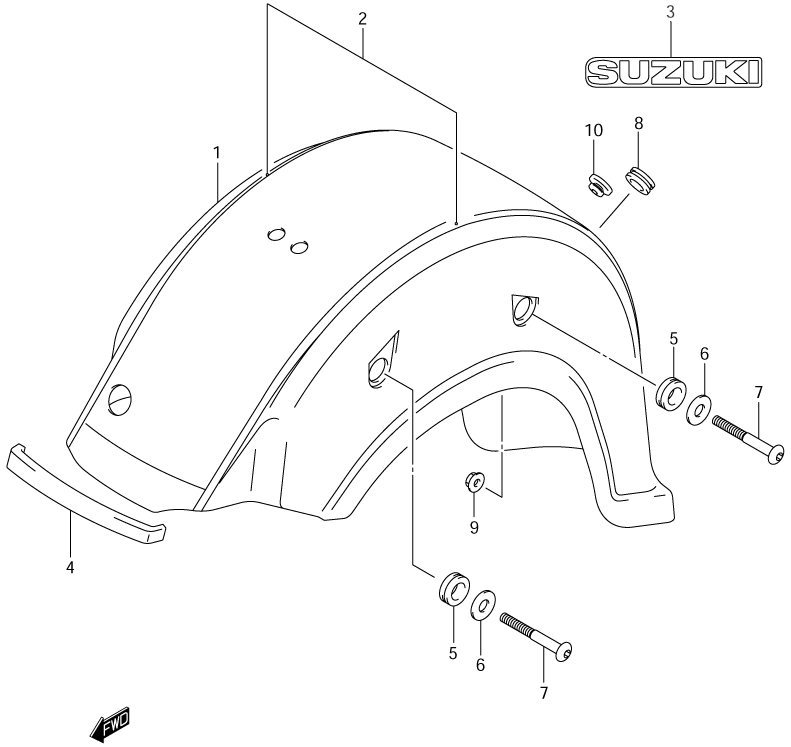

FENDER - REAR для Suzuki VL800 K4 VOLUSIA - 2004 года выпуска

  • №
    Артикул
    Название
  • 1-1
    63110-41F40-YAY FENDER, REAR (YAY - BLACK)
    FENDER, REAR (YAY - BLACK)
  • 1-2
    63110-41F40-AAV FENDER, REAR (AAV - SILVER/WHITE)
    FENDER, REAR (AAV - SILVER/WHITE)
  • 1-3
    63110-41F40-AAW FENDER, REAR (AAW - BLUE/SILVER)
    FENDER, REAR (AAW - BLUE/SILVER)
  • 2-1
    68170-41F20-ADK ...TAPE SET (ADK - BROWN/BLACK) (FOR YAY - BLACK)
    ...TAPE SET (ADK - BROWN/BLACK) (FOR YAY - BLACK)
  • 2-2
    68170-41F20-ABZ ...TAPE SET (ABZ - GRAY/GOLD/SILVER/WHITE) (FOR AAV - SILVER/WHITE)
    ...TAPE SET (ABZ - GRAY/GOLD/SILVER/WHITE) (FOR AAV - SILVER/WHITE)
  • 2-3
    68170-41F20-ACA ...TAPE SET (ACA - SILVER/BLUE/GRAY) (FOR AAW - BLUE/SILVER)
    ...TAPE SET (ACA - SILVER/BLUE/GRAY) (FOR AAW - BLUE/SILVER)
  • 3-1
    68171-26F00-ACV ...EMBLEM (ACV - SILVER/BLACK) (FOR YAY - BLACK)
    ...EMBLEM (ACV - SILVER/BLACK) (FOR YAY - BLACK)
  • 3-2
    68171-26F00-ADF ...EMBLEM (ADF - SILVER/WHITE) (FOR AAV - SILVER/WHITE)
    ...EMBLEM (ADF - SILVER/WHITE) (FOR AAV - SILVER/WHITE)
  • 3-3
    68171-26F00-ADG ...EMBLEM (ADG - SILVER/GRAY) (FOR AAW - BLUE/SILVER)
    ...EMBLEM (ADG - SILVER/GRAY) (FOR AAW - BLUE/SILVER)
  • 4
    47161-29B00 CUSHION, FRONT
    CUSHION, FRONT
  • 5
    47191-24F00 CUSHION
    CUSHION
  • 6
    09160-15002 WASHER
    WASHER
  • 7
    63161-41F00 BOLT
    BOLT
  • 8
    09320-15008 CUSHION, PILLION SEAT
    CUSHION, PILLION SEAT
  • 9
    08316-10083 NUT
    NUT
  • 10
    09321-10007 CUSHION, BRACE
    CUSHION, BRACE
