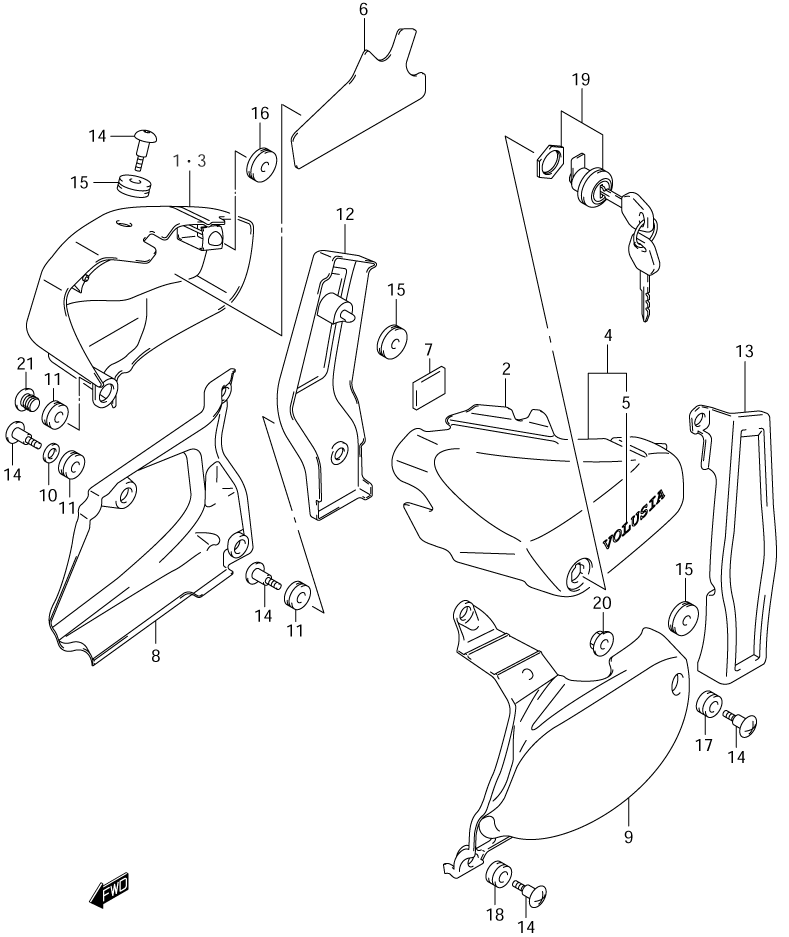

SIDE COVER для Suzuki VL800 K4 VOLUSIA - 2004 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47110-41F30-YAY COVER, FRAME (RIGHT) (YAY - BLACK) (FOR YAY - BLACK) (EXCEPT CALIF.)
    COVER, FRAME (RIGHT) (YAY - BLACK) (FOR YAY - BLACK) (EXCEPT CALIF.)
  • 1-2
    47110-41F30-YV2 COVER, FRAME (RIGHT) (YV2 - SILVER) (FOR AAV - SILVER/WHITE) (EXCEPT CALIF.)
    COVER, FRAME (RIGHT) (YV2 - SILVER) (FOR AAV - SILVER/WHITE) (EXCEPT CALIF.)
  • 1-3
    47110-41F30-YAR COVER, FRAME (RIGHT) (YAR - BLUE) (FOR AAW - BLUE/SILVER) (EXCEPT CALIF.)
    COVER, FRAME (RIGHT) (YAR - BLUE) (FOR AAW - BLUE/SILVER) (EXCEPT CALIF.)
  • 1-4
    47110-41F40-YAY COVER, FRAME (RIGHT) (YAY - BLACK) (FOR YAY - BLACK) (CALIF. ONLY)
    COVER, FRAME (RIGHT) (YAY - BLACK) (FOR YAY - BLACK) (CALIF. ONLY)
  • 1-5
    47110-41F40-YV2 COVER, FRAME (RIGHT) (YV2 - SILVER) (FOR AAV - SILVER/WHITE) (CALIF. ONLY)
    COVER, FRAME (RIGHT) (YV2 - SILVER) (FOR AAV - SILVER/WHITE) (CALIF. ONLY)
  • 1-6
    47110-41F40-YAR COVER, FRAME (RIGHT) (YAR - BLUE) (FOR AAW - BLUE/SILVER) (CALIF. ONLY)
    COVER, FRAME (RIGHT) (YAR - BLUE) (FOR AAW - BLUE/SILVER) (CALIF. ONLY)
  • 2-1
    47211-41F00-YAY COVER, FRAME (LEFT) (YAY - BLACK) (FOR YAY - BLACK)
    COVER, FRAME (LEFT) (YAY - BLACK) (FOR YAY - BLACK)
  • 2-2
    47211-41F00-YV2 COVER, FRAME (LEFT) (YV2 - SILVER) (FOR AAV - SILVER/WHITE)
    COVER, FRAME (LEFT) (YV2 - SILVER) (FOR AAV - SILVER/WHITE)
  • 2-3
    47211-41F00-YAR COVER, FRAME (LEFT) (YAR - BLUE) (FOR AAW - BLUE/SILVER)
    COVER, FRAME (LEFT) (YAR - BLUE) (FOR AAW - BLUE/SILVER)
  • 6
    47166-41F00 SHIELD, FRAME COVER (RIGHT)
    SHIELD, FRAME COVER (RIGHT)
  • 7
    93676-80020 CUSHION, (LEFT)
    CUSHION, (LEFT)
  • 8
    47130-41F00 COVER, SIDE LOWER (RIGHT)
    COVER, SIDE LOWER (RIGHT)
  • 9
    47231-41F00 COVER, SIDE LOWER (LEFT)
    COVER, SIDE LOWER (LEFT)
  • 10
    09160-10123 WASHER
    WASHER
  • 11
    09320-08021 CUSHION
    CUSHION
  • 12
    47141-41F00-019 COVER, SIDE REAR (RIGHT) (019 - BLACK)
    COVER, SIDE REAR (RIGHT) (019 - BLACK)
  • 13
    47241-41F00-019 COVER, SIDE REAR (LEFT) (019 - BLACK)
    COVER, SIDE REAR (LEFT) (019 - BLACK)
  • 14
    09139-06126 SCREW
    SCREW
  • 15
    09320-08018 CUSHION
    CUSHION
  • 16
    09320-08028 CUSHION BOX REAR
    CUSHION BOX REAR
  • 17
    09320-09501 CUSHION
    CUSHION
  • 18
    09320-09026 CUSHION BOX FRONT
    CUSHION BOX FRONT
  • 19
    95700-07860 LOCK SET, FUEL LID
    LOCK SET, FUEL LID
  • 20
    08316-10063 NUT, SIDE LOWER (LEFT)
    NUT, SIDE LOWER (LEFT)
  • 21
    09250-09001 PLUG
    PLUG
