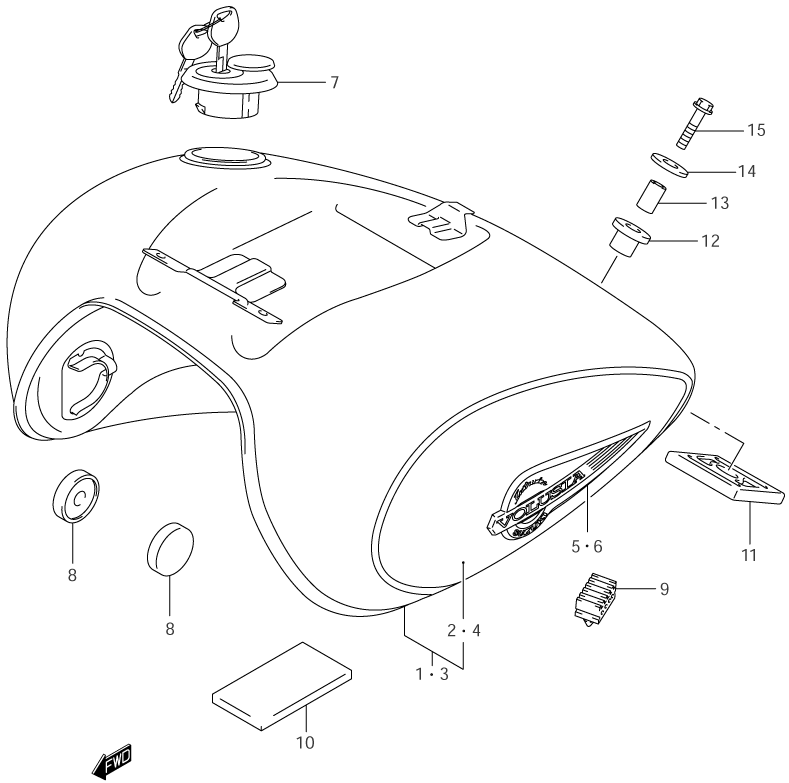

FUEL TANK для Suzuki VL800 K3 VOLUSIA - 2003 года выпуска

№

Артикул

Название
1-1

44100-41F70-33J TANK ASSY., FUEL (33J - BLACK) (EXCEPT CALIF.)

TANK ASSY., FUEL (33J - BLACK) (EXCEPT CALIF.)
1-2

44100-41F80-33J TANK ASSY., FUEL (33J - BLACK) (CALIF. ONLY)

TANK ASSY., FUEL (33J - BLACK) (CALIF. ONLY)
2

68110-41F10-LT2 ...TAPE SET, FUEL TANK (LT2 - GOLD/BLACK/BLACK) (FOR 33J - BLACK)

...TAPE SET, FUEL TANK (LT2 - GOLD/BLACK/BLACK) (FOR 33J - BLACK)
3-1

44100-41FA0-KT9 TANK ASSY., FUEL (KT9 - SILVER/WHITE) (EXCEPT CALIF.)

TANK ASSY., FUEL (KT9 - SILVER/WHITE) (EXCEPT CALIF.)
3-2

44100-41FA0-KU1 TANK ASSY., FUEL (KU1 - SILVER/GREEN) (EXCEPT CALIF.)

TANK ASSY., FUEL (KU1 - SILVER/GREEN) (EXCEPT CALIF.)
3-3

44100-41FB0-KT9 TANK ASSY., FUEL (KT9 - SILVER/WHITE) (CALIF. ONLY)

TANK ASSY., FUEL (KT9 - SILVER/WHITE) (CALIF. ONLY)
3-4

44100-41FB0-KU1 TANK ASSY., FUEL (KU1 - SILVER/GREEN) (CALIF. ONLY)

TANK ASSY., FUEL (KU1 - SILVER/GREEN) (CALIF. ONLY)
4-1

68110-41F20-LS9 ...TAPE SET, FUEL TANK (LS9 - GRAY/SILVER/SILVERWHITE) (FOR KT9 - SILVER/WHITE)

...TAPE SET, FUEL TANK (LS9 - GRAY/SILVER/SILVERWHITE) (FOR KT9 - SILVER/WHITE)
4-2

68110-41F20-LT1 ...TAPE SET, FUEL TANK (LT1 - GOLD/GRAY/GREEN/SILVER) (FOR KU1 - SILVER/GREEN)

...TAPE SET, FUEL TANK (LT1 - GOLD/GRAY/GREEN/SILVER) (FOR KU1 - SILVER/GREEN)
5

68111-41F10 EMBLEM, (RIGHT)

EMBLEM, (RIGHT)
6

68121-41F10 EMBLEM, (LEFT)

EMBLEM, (LEFT)
7-1

44200-41810 CAP SET, FUEL TANK (EXCEPT CALIF.)

CAP SET, FUEL TANK (EXCEPT CALIF.)
7-2

44200-41820 CAP SET, FUEL TANK (CALIF. ONLY)

CAP SET, FUEL TANK (CALIF. ONLY)
8

09329-10007 CUSHION, FRONT

CUSHION, FRONT
9

45149-31300 CUSHION, SIDE

CUSHION, SIDE
10

44545-41F00 CUSHION, INNER

CUSHION, INNER
11

44542-41F00 CUSHION, REAR LOWER

CUSHION, REAR LOWER
12

44541-41F00 CUSHION, REAR UPPER

CUSHION, REAR UPPER
13

09180-08057 SPACER

SPACER
14

09160-08140 WASHER

WASHER
15

01550-08353 BOLT

BOLT
