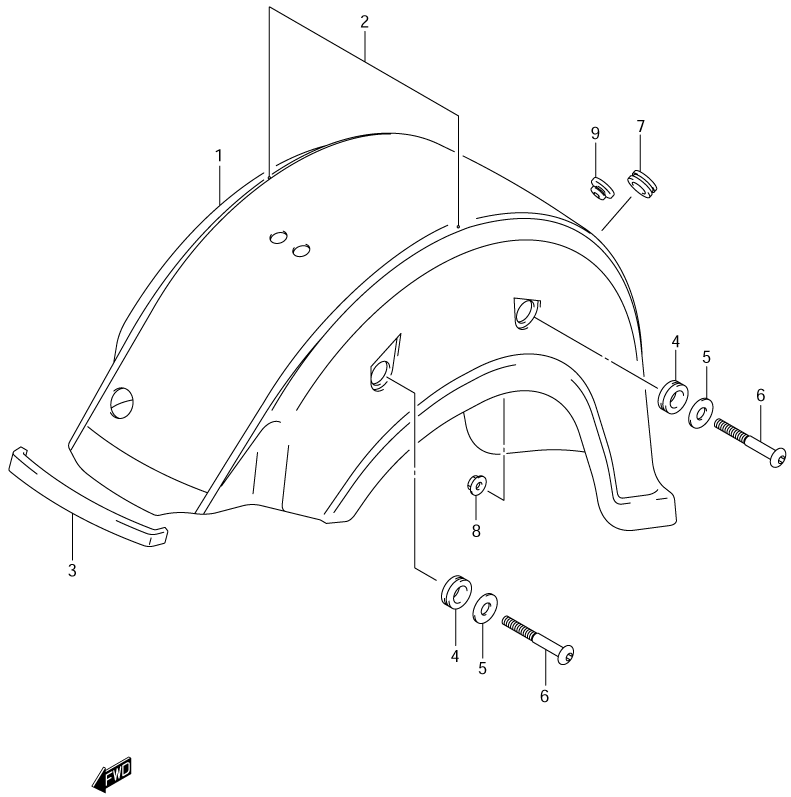

FENDER - REAR для Suzuki VL800 K3 VOLUSIA - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    63110-41F30-33J FENDER, REAR (33J - BLACK)
    FENDER, REAR (33J - BLACK)
  • 1-2
    63110-41F30-KT9 FENDER, REAR (KT9 - SILVER/WHITE)
    FENDER, REAR (KT9 - SILVER/WHITE)
  • 1-3
    63110-41F30-KU1 FENDER, REAR (KU1 - SILVER/GREEN)
    FENDER, REAR (KU1 - SILVER/GREEN)
  • 2-1
    68170-41F10-LT2 ...TAPE SET (LT2 - GOLD/BLACK/BLACK) (FOR 33J - BLACK)
    ...TAPE SET (LT2 - GOLD/BLACK/BLACK) (FOR 33J - BLACK)
  • 2-2
    68170-41F10-LS9 ...TAPE SET (LS9 - GRAY/SILVER/SILVERWHITE) (FOR KT9 - SILVER/WHITE)
    ...TAPE SET (LS9 - GRAY/SILVER/SILVERWHITE) (FOR KT9 - SILVER/WHITE)
  • 2-3
    68170-41F10-LT1 ...TAPE SET (LT1 - GOLD/GRAY/GREEN/SILVER) (FOR KU1 - SILVER/GREEN)
    ...TAPE SET (LT1 - GOLD/GRAY/GREEN/SILVER) (FOR KU1 - SILVER/GREEN)
  • 3
    47161-29B00 CUSHION, FRONT
    CUSHION, FRONT
  • 4
    47191-24F00 CUSHION
    CUSHION
  • 5
    09160-15002 WASHER
    WASHER
  • 6
    63161-41F00 BOLT
    BOLT
  • 7
    09320-15008 CUSHION, PILLION SEAT
    CUSHION, PILLION SEAT
  • 8
    08316-10083 NUT
    NUT
  • 9
    09321-10007 CUSHION, BRACE
    CUSHION, BRACE
