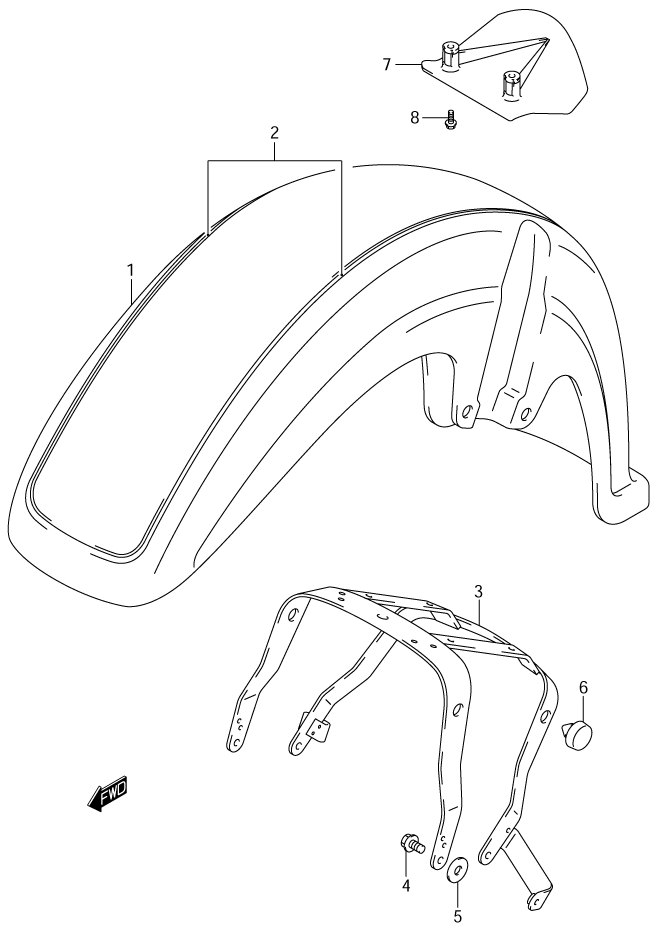

FENDER - FRONT для Suzuki VL800 K3 VOLUSIA - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    53110-41F30-33J FENDER, FRONT (33J - BLACK)
    FENDER, FRONT (33J - BLACK)
  • 1-2
    53110-41F30-KT9 FENDER, FRONT (KT9 - SILVER/WHITE)
    FENDER, FRONT (KT9 - SILVER/WHITE)
  • 1-3
    53110-41F30-KU1 FENDER, FRONT (KU1 - SILVER/GREEN)
    FENDER, FRONT (KU1 - SILVER/GREEN)
  • 2-1
    68150-41F10-LT2 ...TAPE SET (LT2 - GOLD/BLACK/BLACK) (FOR 33J - BLACK)
    ...TAPE SET (LT2 - GOLD/BLACK/BLACK) (FOR 33J - BLACK)
  • 2-2
    68150-41F10-LS9 ...TAPE SET (LS9 - GRAY/SILVER/SILVERWHITE) (FOR KT9 - SILVER/WHITE)
    ...TAPE SET (LS9 - GRAY/SILVER/SILVERWHITE) (FOR KT9 - SILVER/WHITE)
  • 2-3
    68150-41F10-LT1 ...TAPE SET (LT1 - GOLD/GRAY/GREEN/SILVER) (FOR KU1 - SILVER/GREEN)
    ...TAPE SET (LT1 - GOLD/GRAY/GREEN/SILVER) (FOR KU1 - SILVER/GREEN)
  • 3
    53120-41F10 BRACE, FRONT FENDER
    BRACE, FRONT FENDER
  • 4
    01550-06203 BOLT
    BOLT
  • 5
    53276-41F00 WASHER
    WASHER
  • 6
    09321-10007 CUSHION
    CUSHION
  • 7
    53181-41F00 WING, FRONT
    WING, FRONT
  • 8
    09111-06066 BOLT
    BOLT
