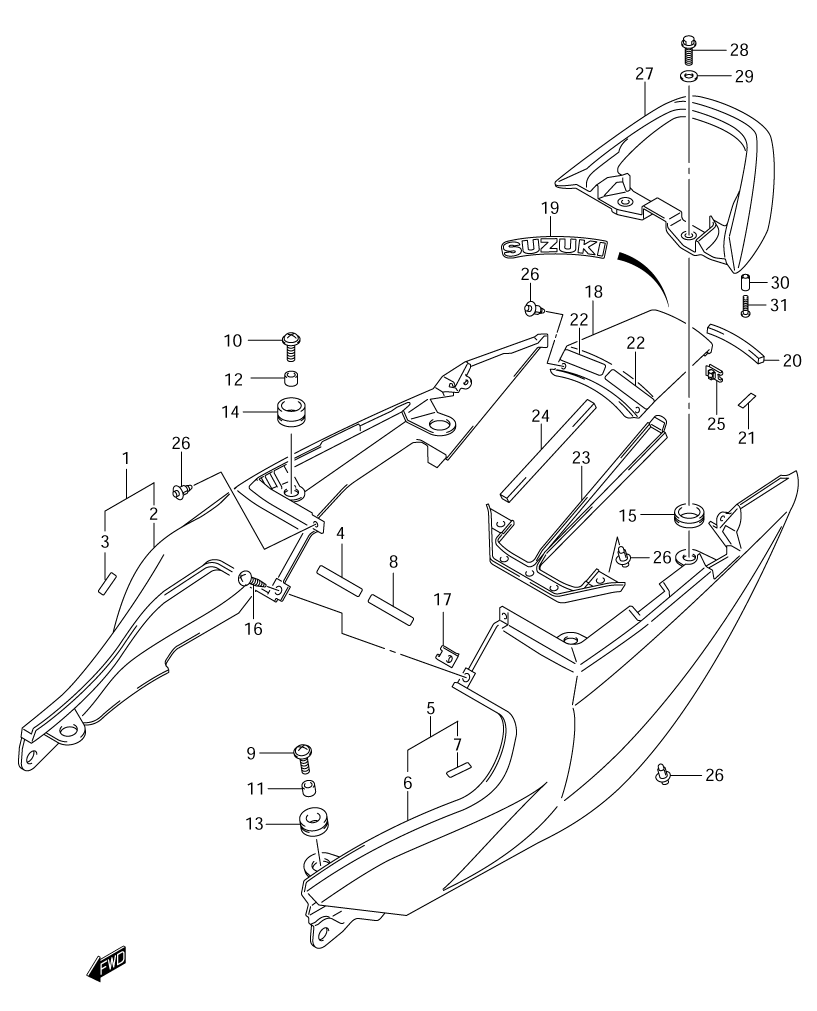

SEAT TAIL COVER для Suzuki SV1000S K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    45501-16G10-YC2 COVER, SEAT TAIL, R (YC2 - BLUE)
    COVER, SEAT TAIL, R (YC2 - BLUE)
  • 1-2
    45501-16G10-YD8 COVER, SEAT TAIL, R (YD8 - SILVER)
    COVER, SEAT TAIL, R (YD8 - SILVER)
  • 1-3
    45501-16G10-YAV COVER, SEAT TAIL, R (YAV - COPPER)
    COVER, SEAT TAIL, R (YAV - COPPER)
  • 2-1
    45511-16G00-YC2 ...COVER, SEAT TAIL, R (YC2 - BLUE)
    ...COVER, SEAT TAIL, R (YC2 - BLUE)
  • 2-2
    45511-16G00-YD8 ...COVER, SEAT TAIL, R (YD8 - SILVER)
    ...COVER, SEAT TAIL, R (YD8 - SILVER)
  • 2-3
    45511-16G00-YAV ...COVER, SEAT TAIL, R (YAV - COPPER)
    ...COVER, SEAT TAIL, R (YAV - COPPER)
  • 3
    45516-42F00 ...TAPE, SEAT TAIL COVER FR
    ...TAPE, SEAT TAIL COVER FR
  • 4
    45517-16G10 ...TAPE, SEAT TAIL COVER FR NO.
    ...TAPE, SEAT TAIL COVER FR NO.
  • 5-1
    45502-16G10-YC2 COVER, SEAT TAIL, L (YC2 - BLUE)
    COVER, SEAT TAIL, L (YC2 - BLUE)
  • 5-2
    45502-16G10-YD8 COVER, SEAT TAIL, L (YD8 - SILVER)
    COVER, SEAT TAIL, L (YD8 - SILVER)
  • 5-3
    45502-16G10-YAV COVER, SEAT TAIL, L (YAV - COPPER)
    COVER, SEAT TAIL, L (YAV - COPPER)
  • 6-1
    45512-16G00-YC2 ...COVER, SEAT TAIL, L (YC2 - BLUE)
    ...COVER, SEAT TAIL, L (YC2 - BLUE)
  • 6-2
    45512-16G00-YD8 ...COVER, SEAT TAIL, L (YD8 - SILVER)
    ...COVER, SEAT TAIL, L (YD8 - SILVER)
  • 6-3
    45512-16G00-YAV ...COVER, SEAT TAIL, L (YAV - COPPER)
    ...COVER, SEAT TAIL, L (YAV - COPPER)
  • 7
    45516-42F00 ...TAPE, SEAT TAIL COVER FR
    ...TAPE, SEAT TAIL COVER FR
  • 8
    45517-16G10 ...TAPE, SEAT TAIL COVER FR NO.
    ...TAPE, SEAT TAIL COVER FR NO.
  • 9
    09136-06105 SCREW
    SCREW
  • 10
    09136-06105 SCREW
    SCREW
  • 11
    09180-06286 SPACER
    SPACER
  • 12
    09180-06286 SPACER
    SPACER
  • 13
    09320-10045 CUSHION
    CUSHION
  • 14
    09320-10045 CUSHION
    CUSHION
  • 15
    09320-20010 CUSHION
    CUSHION
  • 16
    03241-15123 SCREW
    SCREW
  • 17
    09148-05038 NUT
    NUT
  • 18-1
    45503-16G00-YC2 COVER, SEAT TAIL, CENTER (YC2 - BLUE)
    COVER, SEAT TAIL, CENTER (YC2 - BLUE)
  • 18-2
    45503-16G00-YD8 COVER, SEAT TAIL, CENTER (YD8 - SILVER)
    COVER, SEAT TAIL, CENTER (YD8 - SILVER)
  • 18-3
    45503-16G00-YAV COVER, SEAT TAIL, CENTER (YAV - COPPER)
    COVER, SEAT TAIL, CENTER (YAV - COPPER)
  • 19-1
    68161-16G00-YD8 ...EMBLEM, "SUZUKI" (YD8 - SILVER) (FOR YC2 - BLUE, YAV - COPPER)
    ...EMBLEM, "SUZUKI" (YD8 - SILVER) (FOR YC2 - BLUE, YAV - COPPER)
  • 19-2
    68161-16G00-YU8 ...EMBLEM, "SUZUKI" (YU8 - SILVER) (FOR YD8 - SILVER)
    ...EMBLEM, "SUZUKI" (YU8 - SILVER) (FOR YD8 - SILVER)
  • 20
    45518-16G00 ...CUSHION, SEAT TAIL COVER CTR
    ...CUSHION, SEAT TAIL COVER CTR
  • 21
    45517-16G00 ...TAPE, SEAT TAIL COVER
    ...TAPE, SEAT TAIL COVER
  • 22
    45516-42F00 ...TAPE
    ...TAPE
  • 23-1
    45514-16G00-YC2 COVER, SEAT TAIL, REAR (YC2 - BLUE)
    COVER, SEAT TAIL, REAR (YC2 - BLUE)
  • 23-2
    45514-16G00-YD8 COVER, SEAT TAIL, REAR (YD8 - SILVER)
    COVER, SEAT TAIL, REAR (YD8 - SILVER)
  • 23-3
    45514-16G00-YAV COVER, SEAT TAIL, REAR (YAV - COPPER)
    COVER, SEAT TAIL, REAR (YAV - COPPER)
  • 24
    45519-16G00 CUSHION, SEAT TAIL COVER RR
    CUSHION, SEAT TAIL COVER RR
  • 25
    09148-06018 NUT
    NUT
  • 26
    09409-06314-5PK CLIP (5PK - )
    CLIP (5PK - )
  • 27-1
    46211-16G00-YC2 HANDLE, PILLION RIDER (YC2 - BLUE)
    HANDLE, PILLION RIDER (YC2 - BLUE)
  • 27-2
    46211-16G00-YD8 HANDLE, PILLION RIDER (YD8 - SILVER)
    HANDLE, PILLION RIDER (YD8 - SILVER)
  • 27-3
    46211-16G00-YAV HANDLE, PILLION RIDER (YAV - COPPER)
    HANDLE, PILLION RIDER (YAV - COPPER)
  • 28
    01551-08403 BOLT
    BOLT
  • 29
    09160-08501 WASHER
    WASHER
  • 30
    09180-06271 SPACER
    SPACER
  • 31
    09139-06112 SCREW
    SCREW
