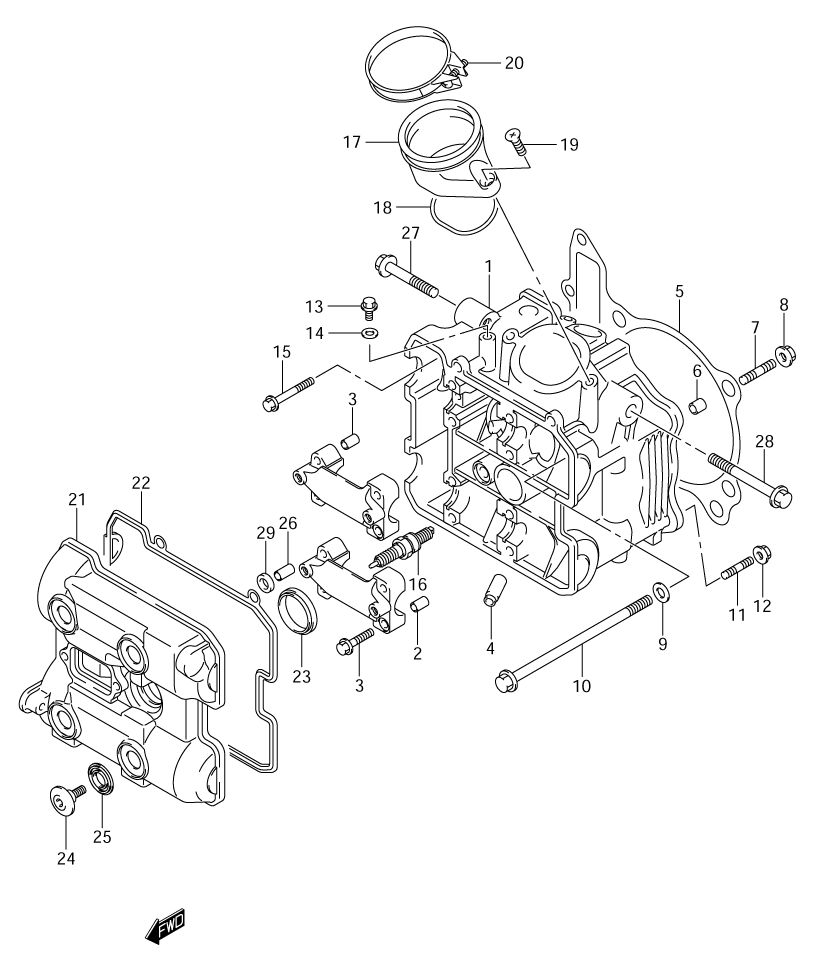

CYLINDER HEAD (FRONT) для Suzuki SV1000S K3 - 2003 года выпуска`
-
№АртикулНазвание
-
111100-16G00 HEAD ASSY., CYLINDER FRONTHEAD ASSY., CYLINDER FRONT
-
209206-08001 ...PIN...PIN
-
309103-06026 ...BOLT (6X39)...BOLT (6X39)
-
411115-32E70 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
511141-02F01 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
604211-13189 PINPIN
-
709108-08143 STUD BOLT (8X35)STUD BOLT (8X35)
-
808316-10083 NUTNUT
-
909160-10082 WASHERWASHER
-
1009103-10276 BOLT (10X175)BOLT (10X175)
-
1109108-06096 STUD BOLT (6X30)STUD BOLT (6X30)
-
1208316-10063 NUTNUT
-
1307120-06123 PLUGPLUG
-
1409168-06023 GASKETGASKET
-
1509103-06103 BOLT (6X70)BOLT (6X70)
-
16-109482-00412 SPARK PLUG (NGK,CR8EK)SPARK PLUG (NGK,CR8EK)
-
16-209482-00413 SPARK PLUG (DENSO,U24ETR)SPARK PLUG (DENSO,U24ETR)
-
16-309482-00410 SPARK PLUG (NGK,CR9EK) (OPT)SPARK PLUG (NGK,CR9EK) (OPT)
-
16-409482-00411 SPARK PLUG (DENSO,U27ETR) (OPT)SPARK PLUG (DENSO,U27ETR) (OPT)
-
16-509482-00462 SPARK PLUG (NGK,CR10EK) (OPT)SPARK PLUG (NGK,CR10EK) (OPT)
-
16-609482-00463 SPARK PLUG (DENSO,U31ETR) (OPT)SPARK PLUG (DENSO,U31ETR) (OPT)
-
17-113101-16G00 PIPE, INTAKE FRONTPIPE, INTAKE FRONT
-
1809280-55005 ...O-RING...O-RING
-
1902122-06163 SCREWSCREW
-
2009402-78208 CLAMPCLAMP
-
2111171-16G00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
2211173-02F00 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
2311178-17E00 GASKETGASKET
-
2409106-07009 BOLT (7X17.5)BOLT (7X17.5)
-
2509161-11008 WASHERWASHER
-
2609206-08007 PINPIN
-
2701550-10657 BOLT, (RIGHT)BOLT, (RIGHT)
-
2801550-10857 BOLT, (LEFT)BOLT, (LEFT)
-
2911182-35F00 GASKET, 2ND AIR PASSAGEGASKET, 2ND AIR PASSAGE
