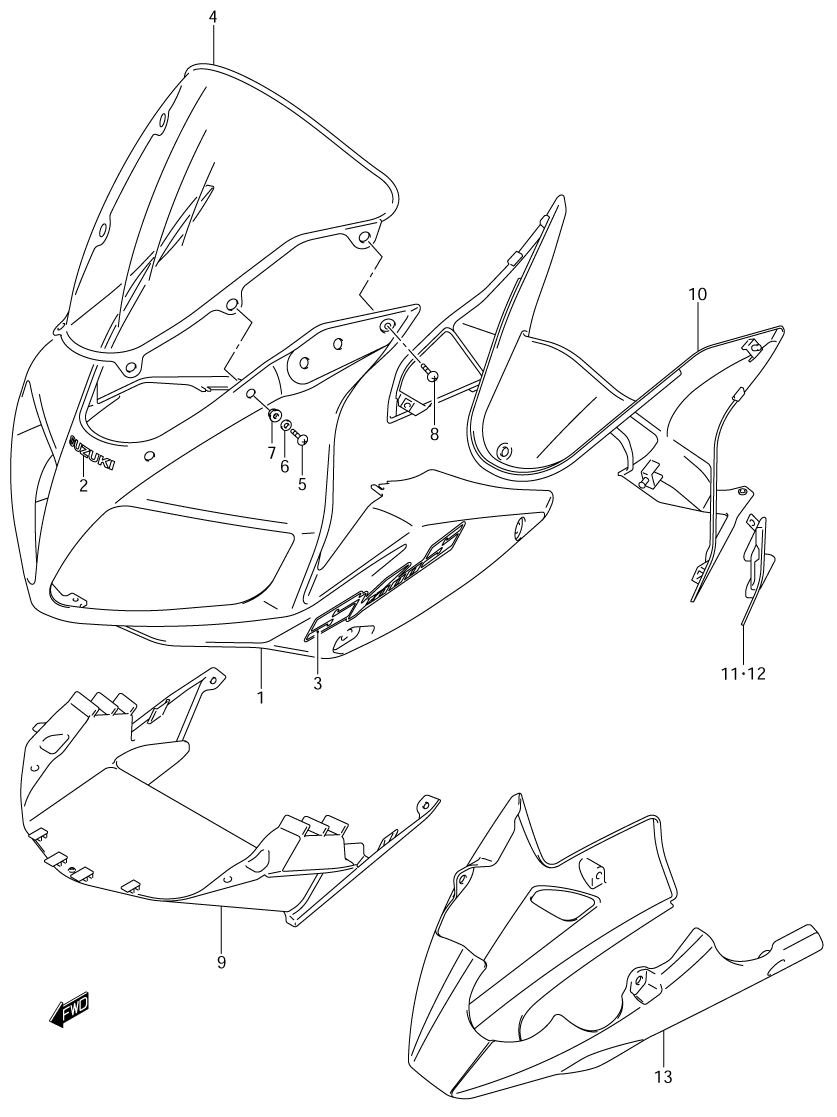

COWLING BODY для Suzuki SV1000S K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    94401-16G00-YD8 COWLING, BODY (YD8 - SILVER)
    COWLING, BODY (YD8 - SILVER)
  • 1-2
    94401-16G00-YC2 COWLING, BODY (YC2 - BLUE) (CANADA)
    COWLING, BODY (YC2 - BLUE) (CANADA)
  • 1-3
    94401-16G00-YAV COWLING, BODY (YAV - COPPER)
    COWLING, BODY (YAV - COPPER)
  • 2-1
    68280-04F00-YU8 ...EMBLEM, FRONT (YU8 - GRAY) (FOR YD8 - SILVER, YMX - SILVER)
    ...EMBLEM, FRONT (YU8 - GRAY) (FOR YD8 - SILVER, YMX - SILVER)
  • 2-2
    68280-04F00-YD8 ...EMBLEM, FRONT (YD8 - SILVER) (FOR YC2, YAV, Y7H, YU7)
    ...EMBLEM, FRONT (YD8 - SILVER) (FOR YC2, YAV, Y7H, YU7)
  • 3-1
    68281-16G00-ML4 ...EMBLEM, SIDE (ML4 - GRAY MET/GRAY/CHARCOAL MET/SILVER) (FOR YD8 - SILVER)
    ...EMBLEM, SIDE (ML4 - GRAY MET/GRAY/CHARCOAL MET/SILVER) (FOR YD8 - SILVER)
  • 3-2
    68281-16G00-ML6 ...EMBLEM, SIDE (ML6 - WHITE/SILVER/SILVER MET/BLUE) (FOR YC2 - BLUE)
    ...EMBLEM, SIDE (ML6 - WHITE/SILVER/SILVER MET/BLUE) (FOR YC2 - BLUE)
  • 3-3
    68281-16G00-ML7 ...EMBLEM, SIDE (ML7 - ORANGE/SILVER/BLUE/COPPER) (FOR YAV - COPPER)
    ...EMBLEM, SIDE (ML7 - ORANGE/SILVER/BLUE/COPPER) (FOR YAV - COPPER)
  • 4
    94610-16G00 WINDSCREEN
    WINDSCREEN
  • 5
    09139-05025 SCREW
    SCREW
  • 6
    08322-01053 WASHER
    WASHER
  • 7
    09159-05019 NUT
    NUT
  • 8
    09132-05053 SCREW, REAR
    SCREW, REAR
  • 9
    94461-16G10-YAD COVER, INNER (YAD - BLACK)
    COVER, INNER (YAD - BLACK)
  • 10
    94630-16G00 PANEL, METER
    PANEL, METER
  • 11
    94641-16G00 LID, METER PANEL (RIGHT)
    LID, METER PANEL (RIGHT)
  • 12
    94651-16G00 LID, METER PANEL (LEFT)
    LID, METER PANEL (LEFT)
  • 13-1
    94471-16G00-YD8 UNDER COWLING (YD8 - SILVER)
    UNDER COWLING (YD8 - SILVER)
  • 13-2
    94471-16G00-YC2 UNDER COWLING (YC2 - BLUE)
    UNDER COWLING (YC2 - BLUE)
  • 13-3
    94471-16G00-YAV UNDER COWLING (YAV - ORANGE)
    UNDER COWLING (YAV - ORANGE)
