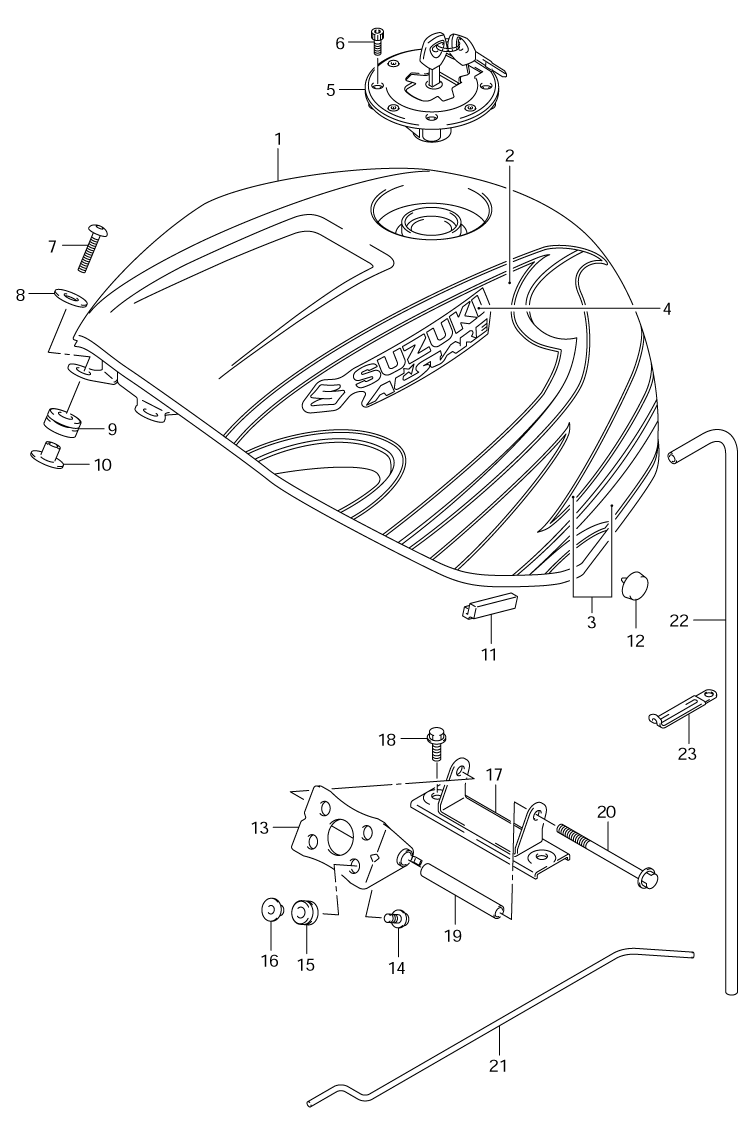

FUEL TANK для Suzuki GSX-R600Z K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    44100-39FR0-LS6 TANK ASSY., FUEL (LS6 - PURPLE/YELLOW) (EXCEPT CALIF.)
    TANK ASSY., FUEL (LS6 - PURPLE/YELLOW) (EXCEPT CALIF.)
  • 1-2
    44100-39FS0-LS6 TANK ASSY., FUEL (LS6 - PURPLE/YELLOW) (CALIF. ONLY)
    TANK ASSY., FUEL (LS6 - PURPLE/YELLOW) (CALIF. ONLY)
  • 2
    68110-39FA0-MG6 ...TAPE SET, FUEL TANK (UPPER) (MG6 - YELLOW/PURPLE/GREEN/BLACK/YELLOW)
    ...TAPE SET, FUEL TANK (UPPER) (MG6 - YELLOW/PURPLE/GREEN/BLACK/YELLOW)
  • 3
    68110-39FB0-MG6 ...TAPE SET, FUEL TANK (LOWER) (MG6 - YELLOW/PURPLE/GREEN/BLACK/YELLOW)
    ...TAPE SET, FUEL TANK (LOWER) (MG6 - YELLOW/PURPLE/GREEN/BLACK/YELLOW)
  • 4
    68111-39FA0-MG7 ...EMBLEM (MG7 - YELLOW/PURPLE/RED/BLUE/SILVER)
    ...EMBLEM (MG7 - YELLOW/PURPLE/RED/BLUE/SILVER)
  • 5-1
    44201-33820 CAP SET, FUEL TANK (EXCEPT CALIF.)
    CAP SET, FUEL TANK (EXCEPT CALIF.)
  • 5-2
    44200-33890 CAP SET, FUEL TANK (CALIF. ONLY)
    CAP SET, FUEL TANK (CALIF. ONLY)
  • 6
    09106-05017 BOLT
    BOLT
  • 7
    09139-06029 BOLT (FRONT)
    BOLT (FRONT)
  • 8
    09160-06054 WASHER
    WASHER
  • 9
    44511-19F00 CUSHION (FRONT)
    CUSHION (FRONT)
  • 10
    44512-19F00 SPACER (FRONT)
    SPACER (FRONT)
  • 11
    44541-35F00 CUSHION, SIDE
    CUSHION, SIDE
  • 12
    44542-35F00 CUSHION, SIDE (REAR)
    CUSHION, SIDE (REAR)
  • 13
    44530-35F00 BRACKET (REAR/UPPER)
    BRACKET (REAR/UPPER)
  • 14
    09116-06152 BOLT
    BOLT
  • 15
    09320-08001 CUSHION
    CUSHION
  • 16
    09169-06062 SPACER
    SPACER
  • 17
    44550-35F10 BRACKET (REAR/LOWER)
    BRACKET (REAR/LOWER)
  • 18
    01550-08163 BOLT BRACKET
    BOLT BRACKET
  • 19
    44561-35F00 SPACER JOINT
    SPACER JOINT
  • 20
    01550-06953 BOLT, JOINT
    BOLT, JOINT
  • 21
    44574-35F00 STAY
    STAY
  • 22
    44423-35F00 HOSE, WATER DRAIN
    HOSE, WATER DRAIN
  • 23
    09404-06432 CLAMP
    CLAMP
