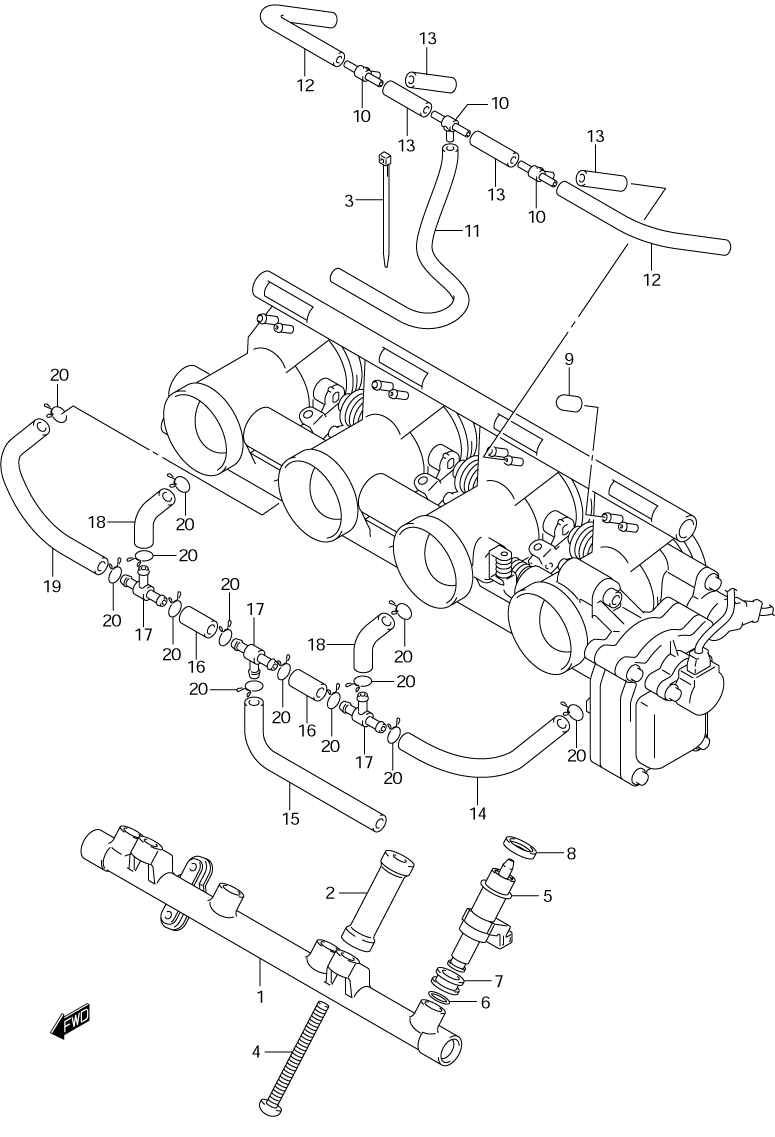

CARBURETOR - THROTTLE BODY FITTINGS для Suzuki GSX-R600Z K3 - 2003 года выпуска

№

Артикул

Название
1

15731-39F00 DERIVELY PIPE ASSY.

DERIVELY PIPE ASSY.
2

13582-39F00 PIPE

PIPE
3

13692-05A20 CLIP

CLIP
4

13602-39F00 SCREW

SCREW
5

15710-24F00 INJECTOR ASSY.

INJECTOR ASSY.
6

15721-24F00 O-RING

O-RING
7

15722-24F00 RING, CUSHION

RING, CUSHION
8

13672-24F00 SEAL RING

SEAL RING
9

13274-84000 CAP

CAP
10

13685-02FA0 3 WAY

3 WAY
11

13681-39F00-225 HOSE

HOSE
12

13681-39F00-225 HOSE

HOSE
13

13681-39F00-225 HOSE

HOSE
14

13683-39F40 HOSE ASSY. (CALIF. ONLY)

HOSE ASSY. (CALIF. ONLY)
15

13683-39F30 HOSE (CALIF. ONLY)

HOSE (CALIF. ONLY)
16

13683-10200 HOSE (CALIF. ONLY)

HOSE (CALIF. ONLY)
17

13685-48B00 NIPPLE (CALIF. ONLY)

NIPPLE (CALIF. ONLY)
18

13683-02FC0 HOSE (CALIF. ONLY)

HOSE (CALIF. ONLY)
19

13683-39F20 HOSE ASSY. (CALIF. ONLY)

HOSE ASSY. (CALIF. ONLY)
20

09401-10410 CLIP (CALIF. ONLY)

CLIP (CALIF. ONLY)
