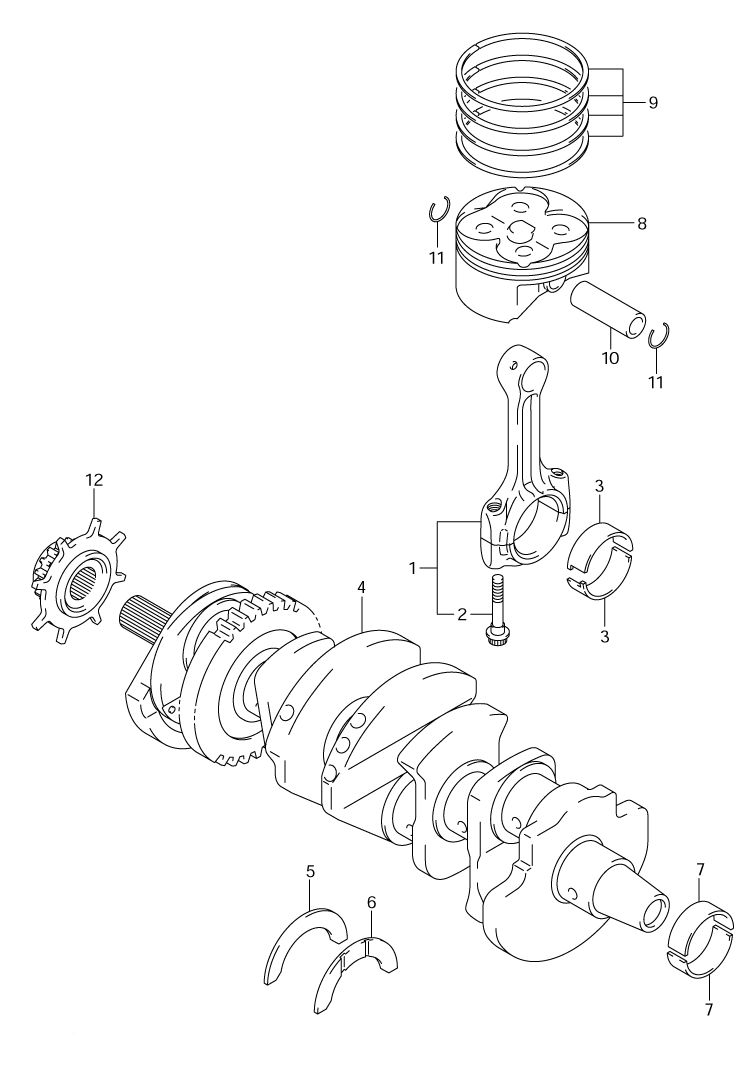

CRANKSHAFT W/ PISTON для Suzuki GSX-R600Z K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    12160-39F00 ROD ASSY., CONNECTING
    ROD ASSY., CONNECTING
  • 2
    12163-35F00 ...BOLT
    ...BOLT
  • 2A
    12165-27A50 ...PIN
    ...PIN
  • 3-1
    12164-39F00-0A0 BEARING, CRANK PIN (GREEN) SEE NOTE BELOW
    BEARING, CRANK PIN (GREEN) SEE NOTE BELOW
  • 3-2
    12164-39F00-0B0 BEARING, CRANK PIN (BLACK) SEE NOTE BELOW
    BEARING, CRANK PIN (BLACK) SEE NOTE BELOW
  • 3-3
    12164-39F00-0C0 BEARING, CRANK PIN (BROWN) SEE NOTE BELOW
    BEARING, CRANK PIN (BROWN) SEE NOTE BELOW
  • 3-4
    12164-39F00-0D0 BEARING, CRANK PIN (YELLOW) SEE NOTE BELOW
    BEARING, CRANK PIN (YELLOW) SEE NOTE BELOW
  • 4
    12000-39830 CRANKSHAFT SET
    CRANKSHAFT SET
  • 5
    12228-17E00-0D0 ...BEARING, THRUST (RIGHT/GREEN)
    ...BEARING, THRUST (RIGHT/GREEN)
  • 6-1
    12228-17E00-0A0 ...BEARING, THRUST (LEFT/RED)
    ...BEARING, THRUST (LEFT/RED)
  • 6-2
    12228-17E00-0B0 ...BEARING, THRUST (LEFT/BLACK)
    ...BEARING, THRUST (LEFT/BLACK)
  • 6-3
    12228-17E00-0C0 ...BEARING, THRUST (LEFT/BLUE)
    ...BEARING, THRUST (LEFT/BLUE)
  • 6-4
    12228-17E00-0D0 ...BEARING, THRUST (LEFT/GREEN)
    ...BEARING, THRUST (LEFT/GREEN)
  • 6-5
    12228-17E00-0E0 ...BEARING, THRUST (LEFT/YELLOW)
    ...BEARING, THRUST (LEFT/YELLOW)
  • 6-6
    12228-17E00-0F0 ...BEARING, THRUST (LEFT/WHITE)
    ...BEARING, THRUST (LEFT/WHITE)
  • 7-1
    12229-35F00-0A0 BEARING, CRANKSHAFT (GREEN) SEE NOTE BELOW
    BEARING, CRANKSHAFT (GREEN) SEE NOTE BELOW
  • 7-2
    12229-35F00-0B0 BEARING, CRANKSHAFT (BLACK) SEE NOTE BELOW
    BEARING, CRANKSHAFT (BLACK) SEE NOTE BELOW
  • 7-3
    12229-35F00-0C0 BEARING, CRANKSHAFT (BROWN) SEE NOTE BELOW
    BEARING, CRANKSHAFT (BROWN) SEE NOTE BELOW
  • 7-4
    12229-35F00-0D0 BEARING, CRANKSHAFT (YELLOW) SEE NOTE BELOW
    BEARING, CRANKSHAFT (YELLOW) SEE NOTE BELOW
  • 8
    12111-39F00-0F0 PISTON
    PISTON
  • 9
    12140-39F00 RING SET, PISTON
    RING SET, PISTON
  • 10
    12151-39F00 PIN, PISTON
    PIN, PISTON
  • 11
    09381-14001 CIRCLIP
    CIRCLIP
  • 12
    12731-35F00 SPROCKET, CAM CHAIN
    SPROCKET, CAM CHAIN
  • 13
    99104-BRGKT-025 NOTE: BEARING KIT FOR GSX-R600
    NOTE: BEARING KIT FOR GSX-R600
