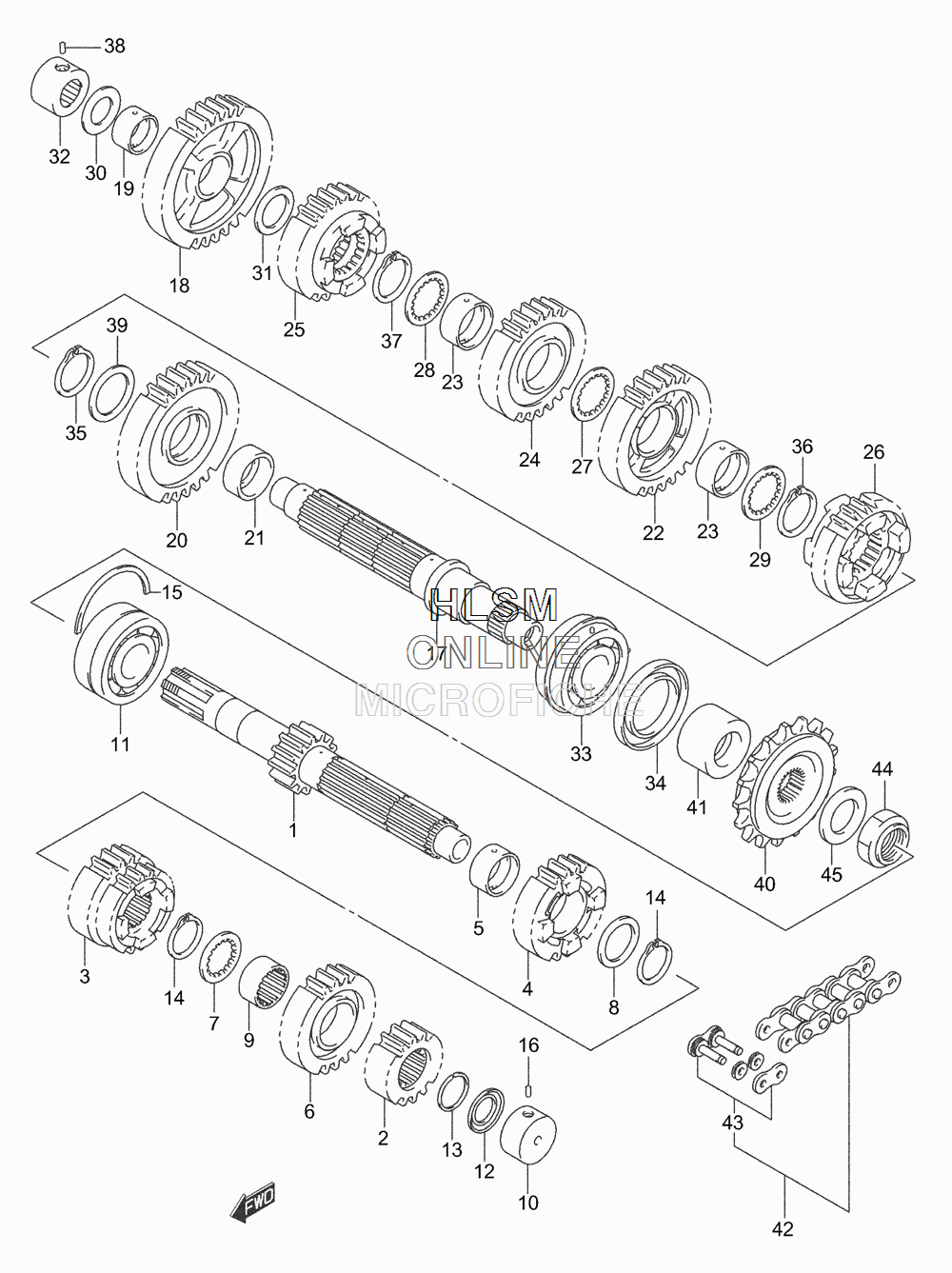

TRANSMISSION для Suzuki GSX-1300RZ K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    24120-24F00 SHAFT, COUNTER (NT:13)
    SHAFT, COUNTER (NT:13)
  • 2
    24221-24F00 GEAR, 2ND DRIVE (NT:16)
    GEAR, 2ND DRIVE (NT:16)
  • 3
    24231-24F10 GEAR, 3RD AND 4TH DRIVE (NT:19/21)
    GEAR, 3RD AND 4TH DRIVE (NT:19/21)
  • 4
    24251-24F00 GEAR, 5TH DRIVE (NT:22)
    GEAR, 5TH DRIVE (NT:22)
  • 5
    24252-24F00 BUSH, 5TH DRIVE
    BUSH, 5TH DRIVE
  • 5
    24252-24F10 BUSH, 5TH DRIVE
    BUSH, 5TH DRIVE
  • 6
    24261-24F00 GEAR, 6TH DRIVE (NT:23)
    GEAR, 6TH DRIVE (NT:23)
  • 7
    09167-27003 WASHER, 6TH DRIVE
    WASHER, 6TH DRIVE
  • 8
    09181-27014 WASHER, 5TH DRIVE
    WASHER, 5TH DRIVE
  • 9
    24262-24F00 BUSH, 6TH DRIVE
    BUSH, 6TH DRIVE
  • 9
    24262-24F10 BUSH, 4TH DRIVE
    BUSH, 4TH DRIVE
  • 10
    09263-20085 BEARING, CENTER SHAFT LEFT HAND
    BEARING, CENTER SHAFT LEFT HAND
  • 11
    09267-25012 BEARING, CENTER SHAFT RIGHT HAND
    BEARING, CENTER SHAFT RIGHT HAND
  • 12
    09285-20006 SEAL, OIL
    SEAL, OIL
  • 13
    09380-27004 CIRCLIP, 2ND DRIVE
    CIRCLIP, 2ND DRIVE
  • 14
    09380-27006 CIRCLIP, 5TH AND 6TH DRIVE
    CIRCLIP, 5TH AND 6TH DRIVE
  • 15
    09390-62012 C RING, CNTR SHAFT BRG RIGHT HAND
    C RING, CNTR SHAFT BRG RIGHT HAND
  • 16
    04221-07209 PIN, CNTR SHAFT BRG LEFT HAND
    PIN, CNTR SHAFT BRG LEFT HAND
  • 17
    24131-24F00 SHAFT, DRIVE
    SHAFT, DRIVE
  • 17
    24131-24F10 SHAFT, DRIVE
    SHAFT, DRIVE
  • 18
    24311-24F00 GEAR, 1ST DRIVEN (NT:34)
    GEAR, 1ST DRIVEN (NT:34)
  • 19
    24312-24F10 BUSH, 1ST DRIVEN
    BUSH, 1ST DRIVEN
  • 20
    24321-24F00 GEAR, 2ND DRIVEN (NT:31)
    GEAR, 2ND DRIVEN (NT:31)
  • 21
    24322-24F00 BUSH, 2ND DRIVEN
    BUSH, 2ND DRIVEN
  • 21
    24322-24F10 BUSH, 2ND DRIVEN
    BUSH, 2ND DRIVEN
  • 22
    24331-24F00 GEAR, 3RD DRIVEN (NT:29)
    GEAR, 3RD DRIVEN (NT:29)
  • 23
    24332-24F10 BUSH, 3RD AND 4TH DRIVEN
    BUSH, 3RD AND 4TH DRIVEN
  • 24
    24341-24F00 GEAR, 4TH DRIVEN (NT:27)
    GEAR, 4TH DRIVEN (NT:27)
  • 25
    24351-24F10 GEAR, 5TH DRIVEN (NT:25)
    GEAR, 5TH DRIVEN (NT:25)
  • 26
    24361-24F10 GEAR, 6TH DRIVEN (NT:24)
    GEAR, 6TH DRIVEN (NT:24)
  • 27
    09167-30008 WASHER, 3RD DRIVEN GEAR LEFT HAND
    WASHER, 3RD DRIVEN GEAR LEFT HAND
  • 28
    09167-30008 WASHER, 4TH DRIVEN GEAR RIGHT HAND
    WASHER, 4TH DRIVEN GEAR RIGHT HAND
  • 29
    09167-30008 WASHER, 3RD AND 4TH DRIVEN
    WASHER, 3RD AND 4TH DRIVEN
  • 30
    09181-20251 WASHER, 1ST DRIVEN RIGHT HAND
    WASHER, 1ST DRIVEN RIGHT HAND
  • 31
    09181-24005 WASHER, 1ST DRIVEN LEFT HAND
    WASHER, 1ST DRIVEN LEFT HAND
  • 32
    09263-20040 BEARING, DRIVE SHAFT RIGHT HAND
    BEARING, DRIVE SHAFT RIGHT HAND
  • 33
    09267-30011 BEARING, DRIVE SHAFT LEFT HAND
    BEARING, DRIVE SHAFT LEFT HAND
  • 34
    09283-42017 SEAL, DRIVE SHAFT
    SEAL, DRIVE SHAFT
  • 35
    09380-30009 CIRCLIP, 2ND DRIVEN
    CIRCLIP, 2ND DRIVEN
  • 36
    09380-30009 CIRCLIP, 3RD DRIVEN
    CIRCLIP, 3RD DRIVEN
  • 37
    09380-30009 CIRCLIP, 4TH DRIVEN
    CIRCLIP, 4TH DRIVEN
  • 38
    04221-07209 PIN, DRIVE SHAFT BRG RIGHT HAND
    PIN, DRIVE SHAFT BRG RIGHT HAND
  • 39
    08211-30405 WASHER, 2ND DRIVEN GEAR RIGHT HAND
    WASHER, 2ND DRIVEN GEAR RIGHT HAND
  • 40
    27510-21A31 SPROCKET, ENGINE (NT:17)
    SPROCKET, ENGINE (NT:17)
  • 41
    27531-24F00 SPACER, SPROCKET
    SPACER, SPROCKET
  • 42
    27600-24F00-112 CHAIN ASSY,DRIVEN (INCL. 43)
    CHAIN ASSY,DRIVEN (INCL. 43)
  • 43
    27620-24F00 JOINT SET, DRIVE
    JOINT SET, DRIVE
  • 44
    09159-20004 NUT
    NUT
  • 45
    09181-25268 WASHER (25X40X1.5)
    WASHER (25X40X1.5)
