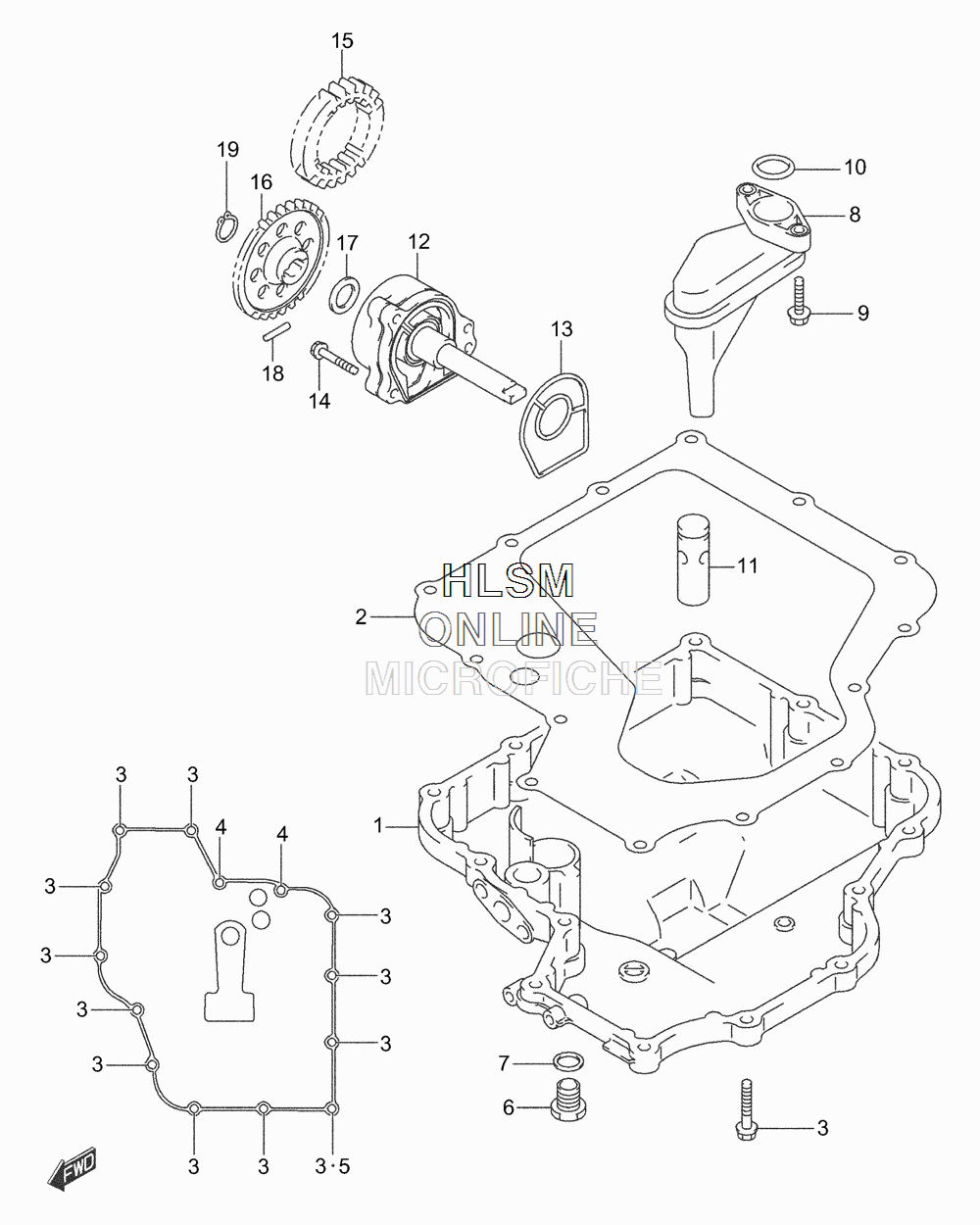

OIL PAN W/ OIL PUMP ASSY. для Suzuki GSX-1300RZ K3 - 2003 года выпуска`
-
№АртикулНазвание
-
111511-24F00 PAN, OILPAN, OIL
-
211489-24F01 GASKET, OIL PANGASKET, OIL PAN
-
301547-06303 BOLTBOLT
-
401547-06403 BOLTBOLT
-
509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
609247-14036 PLUG, OIL DRAINPLUG, OIL DRAIN
-
709168-14002 GASKETGASKET
-
816520-24F00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
901550-06203 BOLTBOLT
-
1009280-19008 O RING (D:2.62,ID:20.3)O RING (D:2.62,ID:20.3)
-
1116440-24F00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
1216400-24F01 PUMP ASSY, ENGINE OILPUMP ASSY, ENGINE OIL
-
1316491-24F00 O RINGO RING
-
1401547-06303 BOLTBOLT
-
1516321-33E10 GEAR, OIL PUMP DRIVE (NT:34)GEAR, OIL PUMP DRIVE (NT:34)
-
1616331-33E00 GEAR, OIL PUMP DRIVEN (NT:37)GEAR, OIL PUMP DRIVEN (NT:37)
-
1709181-12158 WASHERWASHER
-
1809261-05006 PINPIN
-
1908331-31126 CIRCLIPCIRCLIP
