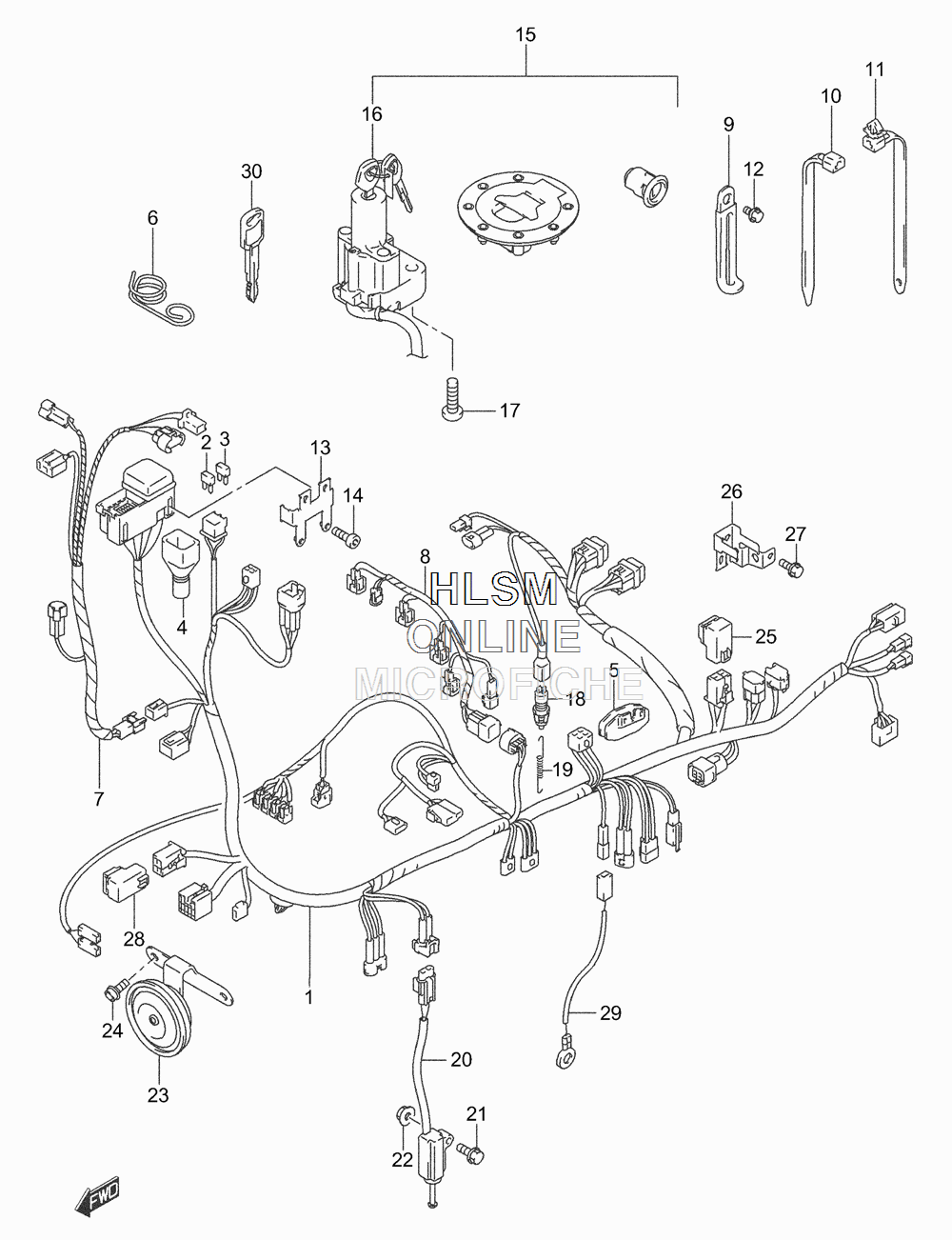

ELECTRICAL - WIRING HARNESS для Suzuki GSX-1300RZ K3 - 2003 года выпуска`
-
№АртикулНазвание
-
136610-24F60 HARNESS, WIRING NO.1 (INCL. 2-5)HARNESS, WIRING NO.1 (INCL. 2-5)
-
209481-10501 FUSE (10A)FUSE (10A)
-
309481-15501 FUSE (15A)FUSE (15A)
-
436618-33E00 BOOT, METER COUPLERBOOT, METER COUPLER
-
536611-24F00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
636619-24F00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
736620-24F10 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
836856-24F10 WIRE, INJECTION LEADWIRE, INJECTION LEAD
-
909404-06432 CLAMP (L:65)CLAMP (L:65)
-
909404-06431 CLAMPCLAMP
-
909404-06433 CLAMPCLAMP
-
1009407-14403 CLAMP (L:125)CLAMP (L:125)
-
1009407-18402 CLAMP (L:165)CLAMP (L:165)
-
1109407-11402 CLAMP (L:60)CLAMP (L:60)
-
1109407-14408 CLAMP, WATER HOSECLAMP, WATER HOSE
-
1201550-06103 BOLTBOLT
-
1336744-24F00 BRACKET, FUSE BOXBRACKET, FUSE BOX
-
1407120-05103 SCREW, FUSE BOXSCREW, FUSE BOX
-
1537000-24810 LOCK SETLOCK SET
-
1537000-24830 LOCK SET (INCL. 16)LOCK SET (INCL. 16)
-
1637100-24F00 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1709139-08016 SCREW (8X20)SCREW (8X20)
-
1837740-24A00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1909443-06012 SPRINGSPRING
-
2037840-24F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2109103-08357 BOLT (8X35)BOLT (8X35)
-
2208316-10083 NUTNUT
-
2338500-24F00 HORN ASSYHORN ASSY
-
2407120-06123 BOLT, HORNBOLT, HORN
-
2538740-26E00 RELAY ASSYRELAY ASSY
-
2638741-24F00 BRACKET, FUEL PUMP RLYBRACKET, FUEL PUMP RLY
-
2701550-06123 BOLTBOLT
-
2838740-26E00 RELAY ASSYRELAY ASSY
-
2936851-17E10 WIRE, OIL PRESSUREWIRE, OIL PRESSURE
-
3037146-33E00 KEY, BLANKKEY, BLANK
