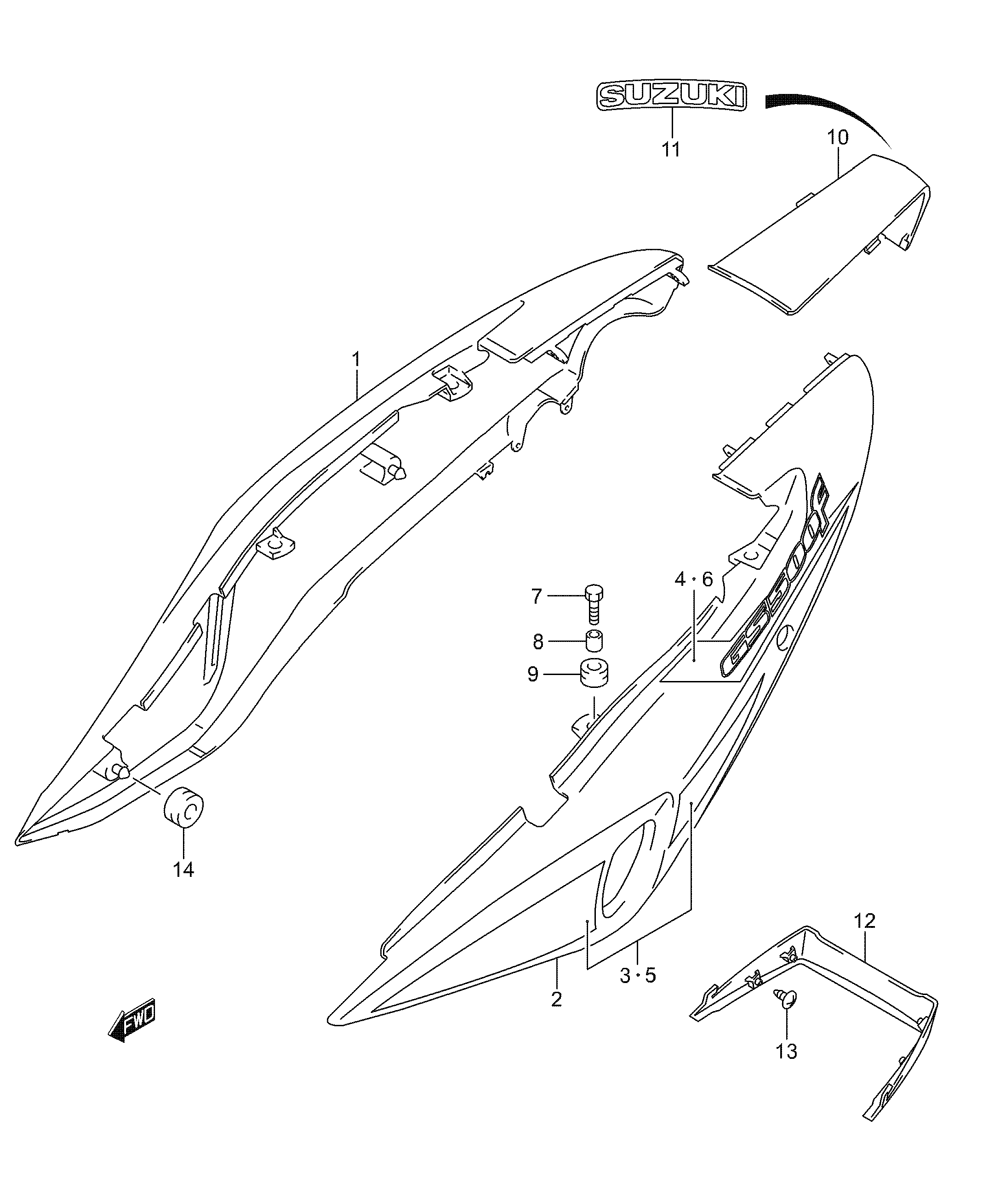

SIDE COVER для Suzuki GS-500F K3 - 2003 года выпуска
-
№АртикулНазвание
-
147111-01DA0-Y7L COVER, FRAME RIGHT HAND (BLACK)COVER, FRAME RIGHT HAND (BLACK)
-
147111-01DA0-0JW COVER, FRAME RIGHT HAND (WHITE)COVER, FRAME RIGHT HAND (WHITE)
-
147111-01DA0-Y9H COVER, FRAME RIGHT HAND (YELLOW)COVER, FRAME RIGHT HAND (YELLOW)
-
247211-0BE00-Y7L COVER, FRAME LEFT HAND (BLACK)COVER, FRAME LEFT HAND (BLACK)
-
247211-0BE00-0JW COVER, FRAME LEFT HAND (WHITE)COVER, FRAME LEFT HAND (WHITE)
-
247211-0BE00-Y9H COVER, FRAME LEFT HAND (YELLOW)COVER, FRAME LEFT HAND (YELLOW)
-
368130-01DB0-HU9 TAPE SET, FRONT RIGHT HAND (BLUE) (FOR 0JW)TAPE SET, FRONT RIGHT HAND (BLUE) (FOR 0JW)
-
368130-01DB0-AMF TAPE SET, FRONT RIGHT HAND (BLACK) (FOR Y7L)TAPE SET, FRONT RIGHT HAND (BLACK) (FOR Y7L)
-
368130-01DB0-BP9 TAPE SET, FRONT RIGHT HAND (YELLOW) (FOR Y9H)TAPE SET, FRONT RIGHT HAND (YELLOW) (FOR Y9H)
-
468135-01DB0-YFU TAPE, REAR FRAME COVER, RIGHT HAND (FOR 0JW)TAPE, REAR FRAME COVER, RIGHT HAND (FOR 0JW)
-
468135-01DB0-YFV TAPE, REAR FRAME COVER, RIGHT HAND (FOR Y7L)TAPE, REAR FRAME COVER, RIGHT HAND (FOR Y7L)
-
468135-01DB0-YFW TAPE, REAR FRAME COVER, RIGHT HAND (FOR Y9H)TAPE, REAR FRAME COVER, RIGHT HAND (FOR Y9H)
-
568140-01DB0-HU9 TAPE SET, FRONT LEFT HAND (BLUE) (FOR 0JW)TAPE SET, FRONT LEFT HAND (BLUE) (FOR 0JW)
-
568140-01DB0-AMF TAPE SET, FRONT LEFT HAND (BLACK) (FOR Y7L)TAPE SET, FRONT LEFT HAND (BLACK) (FOR Y7L)
-
568140-01DB0-BP9 TAPE SET, FRONT LEFT HAND (YELLOW) (FOR Y9H)TAPE SET, FRONT LEFT HAND (YELLOW) (FOR Y9H)
-
668145-01DB0-YFU TAPE, REAR FRAME COVER, LEFT HAND (FOR 0JW)TAPE, REAR FRAME COVER, LEFT HAND (FOR 0JW)
-
668145-01DB0-YFV TAPE, REAR FRAME COVER, LEFT HAND (FOR Y7L)TAPE, REAR FRAME COVER, LEFT HAND (FOR Y7L)
-
668145-01DB0-YFW TAPE, REAR FRAME COVER, LEFT HAND (FOR Y9H)TAPE, REAR FRAME COVER, LEFT HAND (FOR Y9H)
-
709116-06010 BOLTBOLT
-
809180-06263 SPACERSPACER
-
909320-09016 CUSHIONCUSHION
-
1047311-01DA0-0JW COVER, CENTER (WHITE)COVER, CENTER (WHITE)
-
1047311-01DA0-Y7L COVER, CENTER (BLACK)COVER, CENTER (BLACK)
-
1047311-01DA0-Y9H COVER, CENTER (YELLOW)COVER, CENTER (YELLOW)
-
1168165-01DA0-YD8 EMBLEM (SILVER) (FOR Y7L/YC2)EMBLEM (SILVER) (FOR Y7L/YC2)
-
1168165-01DA0-019 EMBLEM (BLACK) (FOR Y9H)EMBLEM (BLACK) (FOR Y9H)
-
1247321-01DA0-NE2 COVER, LOWERCOVER, LOWER
-
1303541-04103 SCREWSCREW
-
1409320-08018 CUSHIONCUSHION
