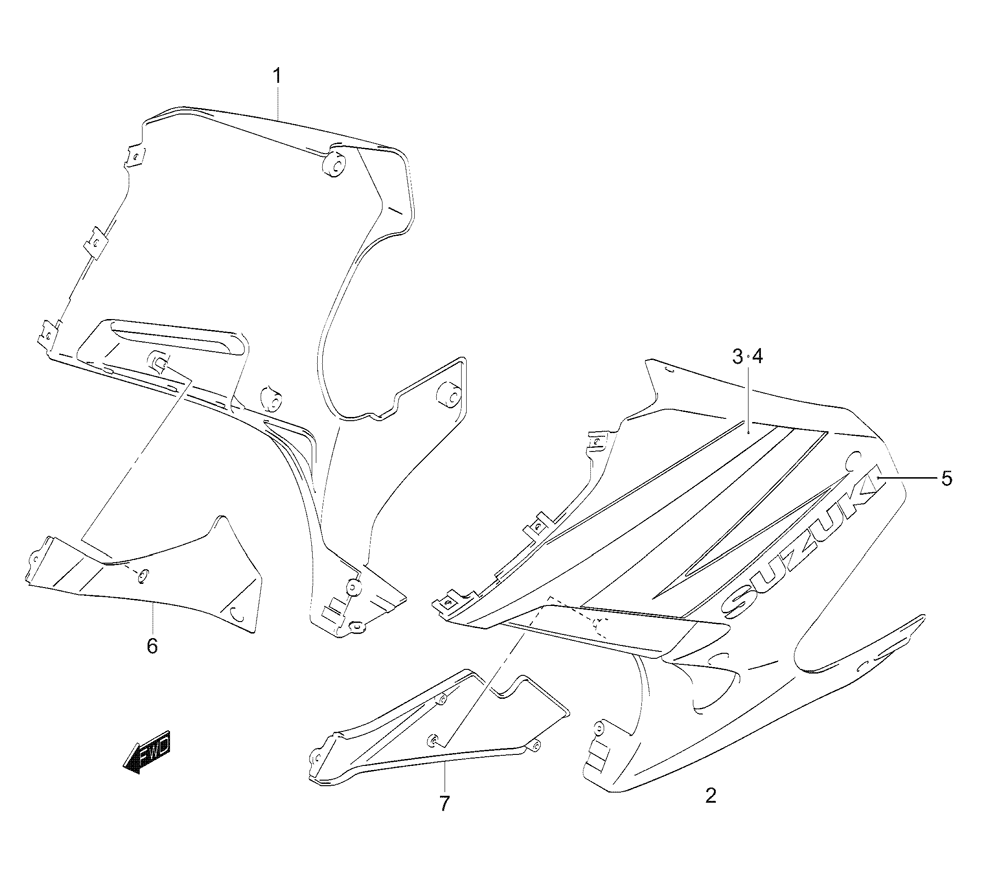

COWLING - UNDER BODY для Suzuki GS-500F K3 - 2003 года выпуска

№

Артикул

Название
1

94471C0BE10JYC2 COWL, UNDER RIGHT HAND (BLUE)

COWL, UNDER RIGHT HAND (BLUE)
1

94471C0BE10JY7L COWL, UNDER RIGHT HAND (BLACK)

COWL, UNDER RIGHT HAND (BLACK)
1

94471C0BE10JY9H COWL, UNDER RIGHT HAND (YELLOW)

COWL, UNDER RIGHT HAND (YELLOW)
2

94481C0BE10JYC2 COWL, UNDER LEFT HAND (BLUE)

COWL, UNDER LEFT HAND (BLUE)
2

94481C0BE10JY7L COWL, UNDER LEFT HAND (BLACK)

COWL, UNDER LEFT HAND (BLACK)
2

94481C0BE10JY9H COWL, UNDER LEFT HAND (YELLOW)

COWL, UNDER LEFT HAND (YELLOW)
3

68180-01DA0-HA9 TAPE SET, RIGHT HAND (FOR YC2)

TAPE SET, RIGHT HAND (FOR YC2)
3

68180-01DA0-MZ7 TAPE SET, RIGHT HAND (FOR Y7L)

TAPE SET, RIGHT HAND (FOR Y7L)
3

68180-01DA0-AMJ TAPE SET, RIGHT HAND (FOR Y9H)

TAPE SET, RIGHT HAND (FOR Y9H)
4

68190-01DA0-HA9 TAPE SET, LEFT HAND (FOR YC2)

TAPE SET, LEFT HAND (FOR YC2)
4

68190-01DA0-MZ7 TAPE SET, LEFT HAND (FOR Y7L)

TAPE SET, LEFT HAND (FOR Y7L)
4

68190-01DA0-AMJ TAPE SET, LEFT HAND (FOR Y9H)

TAPE SET, LEFT HAND (FOR Y9H)
5

68181-01DA0-0JW EMBLEM, ''SUZUKI'' (WHITE) (FOR YC2)

EMBLEM, ''SUZUKI'' (WHITE) (FOR YC2)
5

68181-01DA0-YU8 EMBLEM, ''SUZUKI'' (GRAY) (FOR Y7L)

EMBLEM, ''SUZUKI'' (GRAY) (FOR Y7L)
5

68181-01DA0-Y7L EMBLEM, ''SUZUKI'' (BLACK) (FOR Y9H)

EMBLEM, ''SUZUKI'' (BLACK) (FOR Y9H)
6

94461-01D00-NE2 COWL, INNER RIGHT HAND

COWL, INNER RIGHT HAND
7

94462-01D00-NE2 COWL, INNER LEFT HAND

COWL, INNER LEFT HAND
8

94472-01D00 SHIELD, UNDER COWL HEAT, RIGHT HAND

SHIELD, UNDER COWL HEAT, RIGHT HAND
9

94482-01D00 SHIELD, UNDER COWL HEAT, LEFT HAND

SHIELD, UNDER COWL HEAT, LEFT HAND
10

94473-01D00 SHIELD, UNDER HEAT, RIGHT HAND

SHIELD, UNDER HEAT, RIGHT HAND
11

94483-01D00 SHIELD, UNDDER HEAT, LEFT HAND

SHIELD, UNDDER HEAT, LEFT HAND
