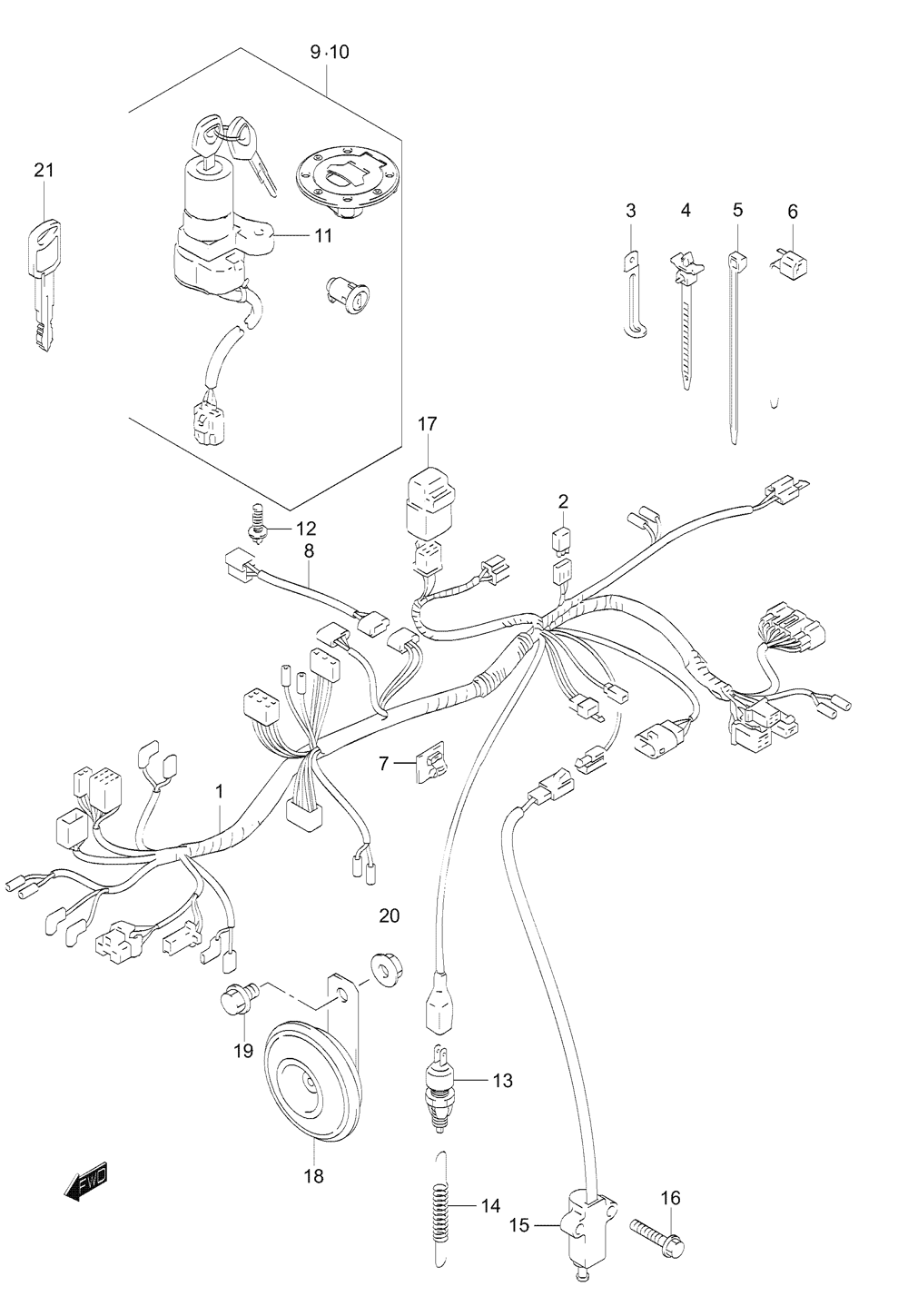

ELECTRICAL - WIRING HARNESS для Suzuki GS-500F K3 - 2003 года выпуска
-
№АртикулНазвание
-
136610-0BEJ0 HARNESS, WIRINGHARNESS, WIRING
-
236611-02E01 DIODEDIODE
-
309404-06429 CLAMP (L:65)CLAMP (L:65)
-
309404-06431 CLAMP (L:85)CLAMP (L:85)
-
409407-07E00 CLAMPCLAMP
-
5D2436-01425 CLAMPCLAMP
-
5D9448-01885 CLAMPCLAMP
-
609407-25401 CLAMP (L:235)CLAMP (L:235)
-
709403-06310 CLAMPCLAMP
-
836852-01D40 WIRE, AIR SOLENOIDWIRE, AIR SOLENOID
-
937000-01870 LOCK SETLOCK SET
-
1037000-01880 LOCK SETLOCK SET
-
1137100-01D40 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1209139-06026 BOLTBOLT
-
1337740-24A00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1409443-06042 SPRINGSPRING
-
1537840-26D00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
16D1557-06305 BOLTBOLT
-
1738740-24B00 RELAY ASSY, SIDE STANDRELAY ASSY, SIDE STAND
-
1838500-0BE00 HORN ASSYHORN ASSY
-
19D1557-08125 BOLTBOLT
-
20D8316-10085 NUTNUT
-
2137146-33E00 KEY, BLANKKEY, BLANK
