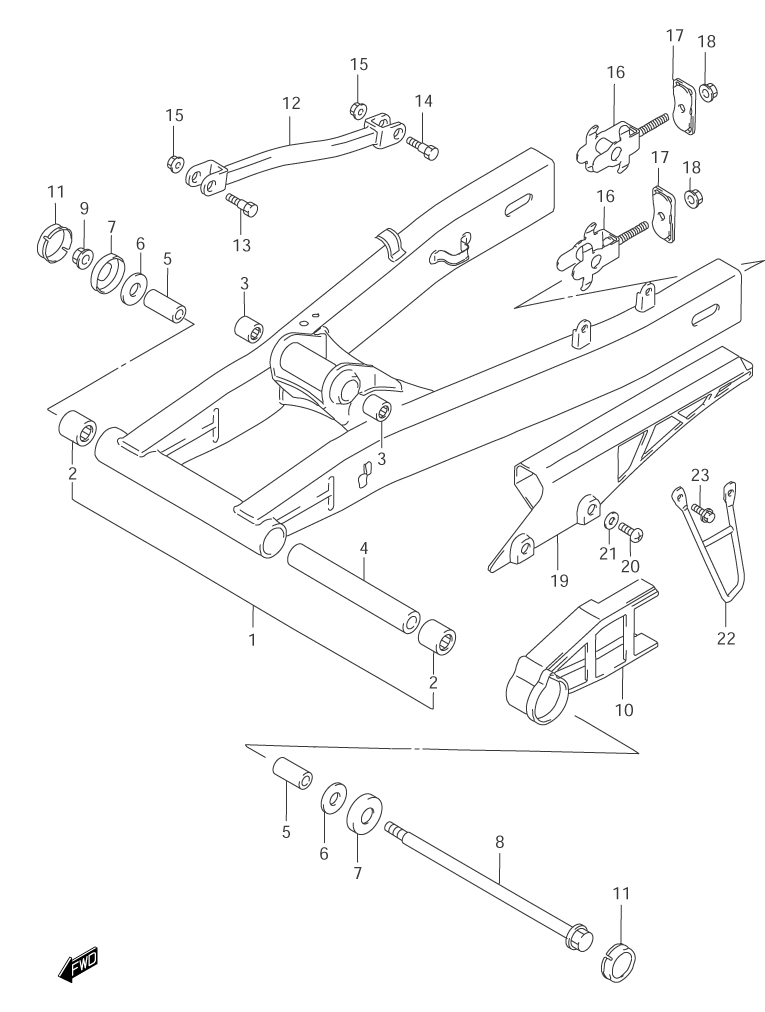

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki GSX600F K2 - 2002 года выпуска`
-
№АртикулНазвание
-
1-161000-08F00-13L SWINGING ARM ASSY. (REAR) (13L - SILVER)SWINGING ARM ASSY. (REAR) (13L - SILVER)
-
209263-22017 ...BEARING, PIVOT (22X29X30)...BEARING, PIVOT (22X29X30)
-
309263-20071 ...BEARING, ROD (20X27X23.5)...BEARING, ROD (20X27X23.5)
-
461282-08F00 SPACER, PIVOT (CENTER)SPACER, PIVOT (CENTER)
-
561251-38B00 SPACER, PIVOTSPACER, PIVOT
-
608211-16341 THRUST WASHERTHRUST WASHER
-
761262-32410 DUST SEALDUST SEAL
-
861211-08F00 SHAFT, PIVOTSHAFT, PIVOT
-
908319-31143 NUTNUT
-
1061273-20C00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1161222-43400 CAP, PIVOTCAP, PIVOT
-
1264310-08F00 TORQUE LINK (REAR) (BLACK)TORQUE LINK (REAR) (BLACK)
-
1309111-10051 BOLT (FRONT) (10X39)BOLT (FRONT) (10X39)
-
1409100-10187 BOLT (REAR) (10X34)BOLT (REAR) (10X34)
-
1508319-31107 NUTNUT
-
1661410-08F00 ADJUSTER, CHAINADJUSTER, CHAIN
-
1761420-08F00 PLATE, ADJUSTER GUIDEPLATE, ADJUSTER GUIDE
-
1808319-31087 NUTNUT
-
1961310-08F00 CASE, CHAINCASE, CHAIN
-
2002142-06123 SCREWSCREW
-
2109169-06026 WASHERWASHER
-
2261390-08F00 GUARD, CHAINGUARD, CHAIN
-
2301547-06123 BOLTBOLT
