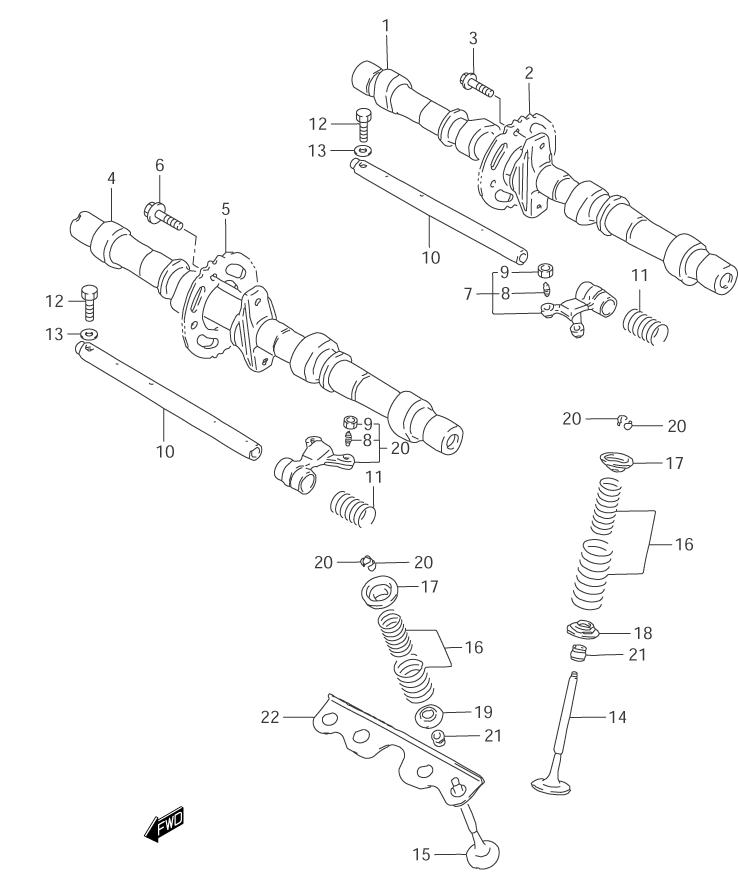

CAMSHAFT W/ VALVES для Suzuki GSX600F K2 - 2002 года выпуска

№

Артикул

Название
1

12711-26E00 CAM SHAFT, INTAKE

CAM SHAFT, INTAKE
2

12741-26E00 SPROCKET, CAM SHAFT

SPROCKET, CAM SHAFT
3

09103-07001 BOLT (7X11.5)

BOLT (7X11.5)
4

12721-26E00 CAM SHAFT, EXHAUST

CAM SHAFT, EXHAUST
5

12741-26E00 SPROCKET, CAM SHAFT

SPROCKET, CAM SHAFT
6

09103-07001 BOLT (7X11.5)

BOLT (7X11.5)
7

12840-19C00 ARM, VALVE ROCKER

ARM, VALVE ROCKER
8

12842-49201 ...SCREW

...SCREW
9

12843-27A00 ...NUT

...NUT
10

12861-27A00 SHAFT, VALVE ROCKER ARM

SHAFT, VALVE ROCKER ARM
11

09440-13014 SPRING

SPRING
12-2

09112-06004 BOLT

BOLT
13

08322-01063 WASHER

WASHER
14

12911-19C00 VALVE, INTAKE

VALVE, INTAKE
15

12912-19C00 VALVE, EXHAUST

VALVE, EXHAUST
16

12920-27A01 SPRING SET, VALVE

SPRING SET, VALVE
17

12931-27A20 RETAINER, SPRING

RETAINER, SPRING
18

12933-81400 SEAT, INTAKE

SEAT, INTAKE
19

12934-27A01 SEAT, EXHAUST

SEAT, EXHAUST
20

12932-27A00 COTTER, VALVE

COTTER, VALVE
21

09289-05011 OIL SEAL (5X10X8.7)

OIL SEAL (5X10X8.7)
22

11137-19C01 PLATE, VALVE SEAT

PLATE, VALVE SEAT
