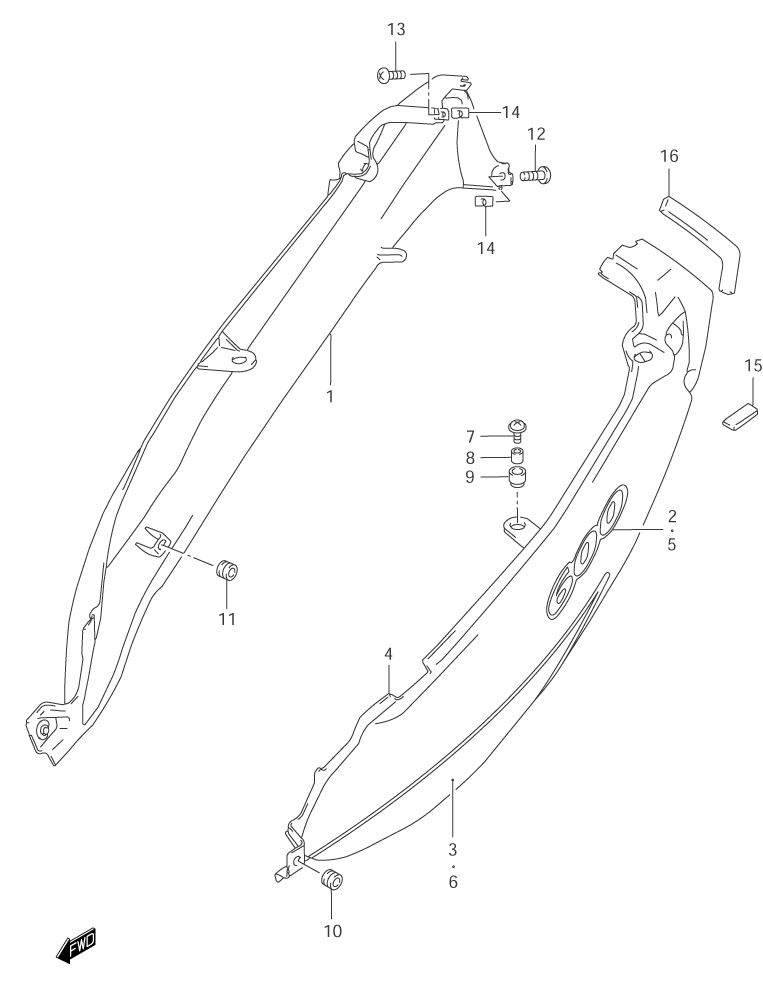

SIDE COVER для Suzuki GSX600F K2 - 2002 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47110-08F60-Y9H COVER, FRAME (RIGHT) (Y9H - YELLOW)
    COVER, FRAME (RIGHT) (Y9H - YELLOW)
  • 1-2
    47110-08F60-YC2 COVER, FRAME (RIGHT) (YC2 - BLUE)
    COVER, FRAME (RIGHT) (YC2 - BLUE)
  • 2-1
    68131-08F40-HS6 ...EMBLEM (RIGHT) (HS6 - YELLOW/BLACK) (FOR Y9H - YELLOW)
    ...EMBLEM (RIGHT) (HS6 - YELLOW/BLACK) (FOR Y9H - YELLOW)
  • 2-2
    68131-08F40-HS7 ...EMBLEM (RIGHT) (HS7 - BLUE/BLACK) (FOR YC2 - BLUE)
    ...EMBLEM (RIGHT) (HS7 - BLUE/BLACK) (FOR YC2 - BLUE)
  • 3-1
    68135-08F10-HS2 ...TAPE (RIGHT) (HS2 - SILVER/BLUE/YELLOW) (FOR Y9H - YELLOW)
    ...TAPE (RIGHT) (HS2 - SILVER/BLUE/YELLOW) (FOR Y9H - YELLOW)
  • 3-2
    68135-08F10-HS3 ...TAPE (RIGHT) (HS3 - SILVER/YELLOW/BLUE) (FOR YC2 - BLUE)
    ...TAPE (RIGHT) (HS3 - SILVER/YELLOW/BLUE) (FOR YC2 - BLUE)
  • 4-1
    47210-08F60-Y9H COVER, FRAME (LEFT) (Y9H - YELLOW)
    COVER, FRAME (LEFT) (Y9H - YELLOW)
  • 4-2
    47210-08F60-YC2 COVER, FRAME (LEFT) (YC2 - BLUE)
    COVER, FRAME (LEFT) (YC2 - BLUE)
  • 5-1
    68131-08F40-HS6 ...EMBLEM (LEFT) (HS6 - YELLOW/BLACK) (FOR Y9H - YELLOW)
    ...EMBLEM (LEFT) (HS6 - YELLOW/BLACK) (FOR Y9H - YELLOW)
  • 5-2
    68131-08F40-HS7 ...EMBLEM (LEFT) (HS7 - BLUE/BLACK) (FOR YC2 - BLUE)
    ...EMBLEM (LEFT) (HS7 - BLUE/BLACK) (FOR YC2 - BLUE)
  • 6-1
    68145-08F10-HS2 ...TAPE (LEFT) (HS2 - SILVER/BLUE/YELLOW) (FOR Y9H - YELLOW)
    ...TAPE (LEFT) (HS2 - SILVER/BLUE/YELLOW) (FOR Y9H - YELLOW)
  • 6-2
    68145-08F10-HS3 ...TAPE (LEFT) (HS3 - SILVER/YELLOW/BLUE) (FOR YC2 - BLUE)
    ...TAPE (LEFT) (HS3 - SILVER/YELLOW/BLUE) (FOR YC2 - BLUE)
  • 7
    09136-06105 SCREW (UPPER)
    SCREW (UPPER)
  • 8
    09180-06286 SPACER
    SPACER
  • 9
    09320-10045 CUSHION
    CUSHION
  • 10
    09320-08028 CUSHION (FRONT)
    CUSHION (FRONT)
  • 11
    09320-08018 CUSHION (CENTER)
    CUSHION (CENTER)
  • 12
    03241-15163 SCREW (LOWER)
    SCREW (LOWER)
  • 13
    03241-15123 SCREW (REAR)
    SCREW (REAR)
  • 14
    09148-05038 NUT
    NUT
  • 15
    44894-24A00 CUSHION (REAR)
    CUSHION (REAR)
  • 16
    47161-08F00 CUSHION
    CUSHION
