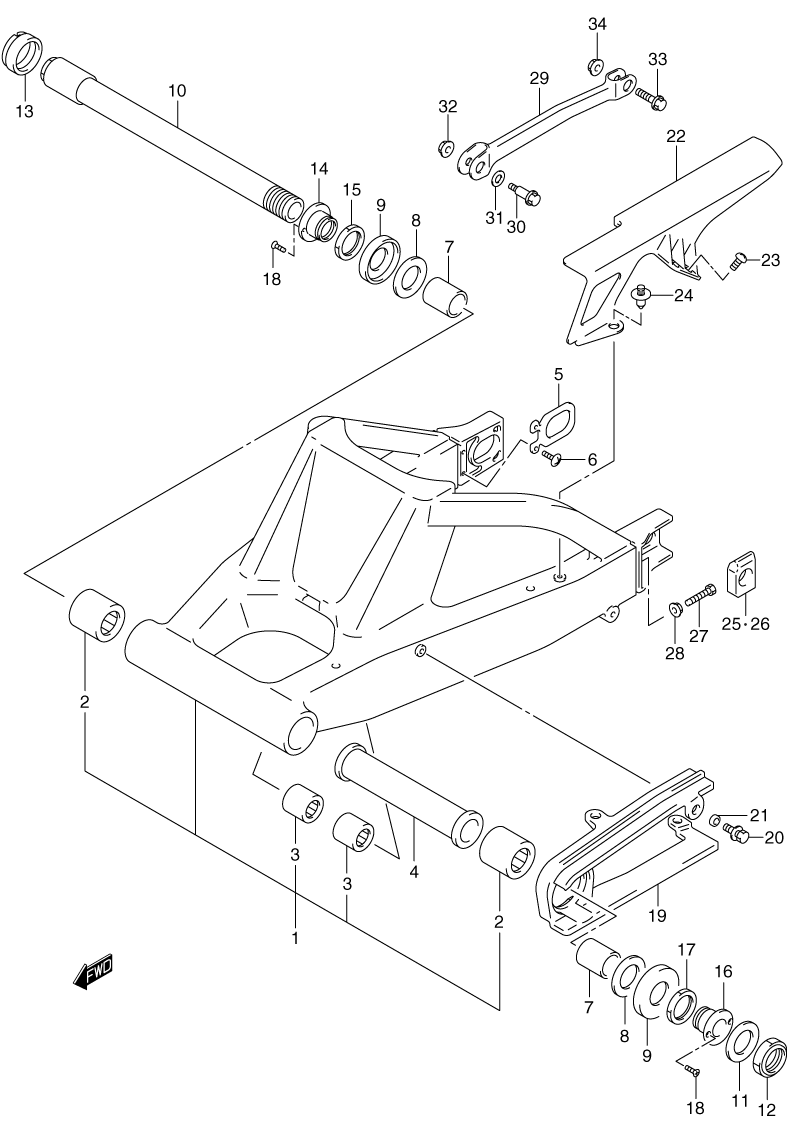

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki GSX-R750 K2 - 2002 года выпуска`
-
№АртикулНазвание
-
161000-35F10 SWINGING ARM ASSY. (REAR)SWINGING ARM ASSY. (REAR)
-
209263-30040 ...BEARING, PIVOT (30X47X2)...BEARING, PIVOT (30X47X2)
-
309263-17039 ...BEARING, ROD (17X24X20)...BEARING, ROD (17X24X20)
-
461281-33E10 ...SPACER (CENTER)...SPACER (CENTER)
-
561124-33E00 PLATE, BRACKETPLATE, BRACKET
-
602142-06163 SCREWSCREW
-
761251-17E10 SPACER, BEARINGSPACER, BEARING
-
808211-25481 WASHER, THRUSTWASHER, THRUST
-
961262-17E10 SEAL, DUSTSEAL, DUST
-
1061211-33E00 SHAFT, PIVOTSHAFT, PIVOT
-
1109160-25070 WASHERWASHER
-
1209159-25001 NUTNUT
-
1361214-40C31 NUT, PIVOTNUT, PIVOT
-
1461212-33E00 BOSS, PIVOT (RIGHT)BOSS, PIVOT (RIGHT)
-
1561213-33E00 NUT, PIVOT (RIGHT)NUT, PIVOT (RIGHT)
-
1661214-33E00 BOSS, PIVOT (LEFT)BOSS, PIVOT (LEFT)
-
1761215-33E00 NUT, PIVOT (LEFT)NUT, PIVOT (LEFT)
-
1802122-05123 SCREWSCREW
-
1961273-35F00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
2009116-06152 SCREWSCREW
-
2109180-06306 SPACER (6.5X9X5)SPACER (6.5X9X5)
-
2261311-35F00 CASE, CHAINCASE, CHAIN
-
2309139-06083 SCREW (6X16)SCREW (6X16)
-
2409409-08308-5ES CLIPCLIP
-
2561445-40F00 ADJUSTER, CHAIN (RIGHT)ADJUSTER, CHAIN (RIGHT)
-
2661446-40F00 ADJUSTER, CHAIN (LEFT)ADJUSTER, CHAIN (LEFT)
-
2709100-08287 BOLT (8X50)BOLT (8X50)
-
2808316-10083 NUTNUT
-
2964310-35F00 TORQUE LINK, (REAR)TORQUE LINK, (REAR)
-
3009111-08093 BOLT (FRONT)BOLT (FRONT)
-
3109160-12011 WASHERWASHER
-
3208319-31087 NUTNUT
-
3309103-10019 BOLT (REAR) (10X37)BOLT (REAR) (10X37)
-
3408319-31107 NUTNUT
