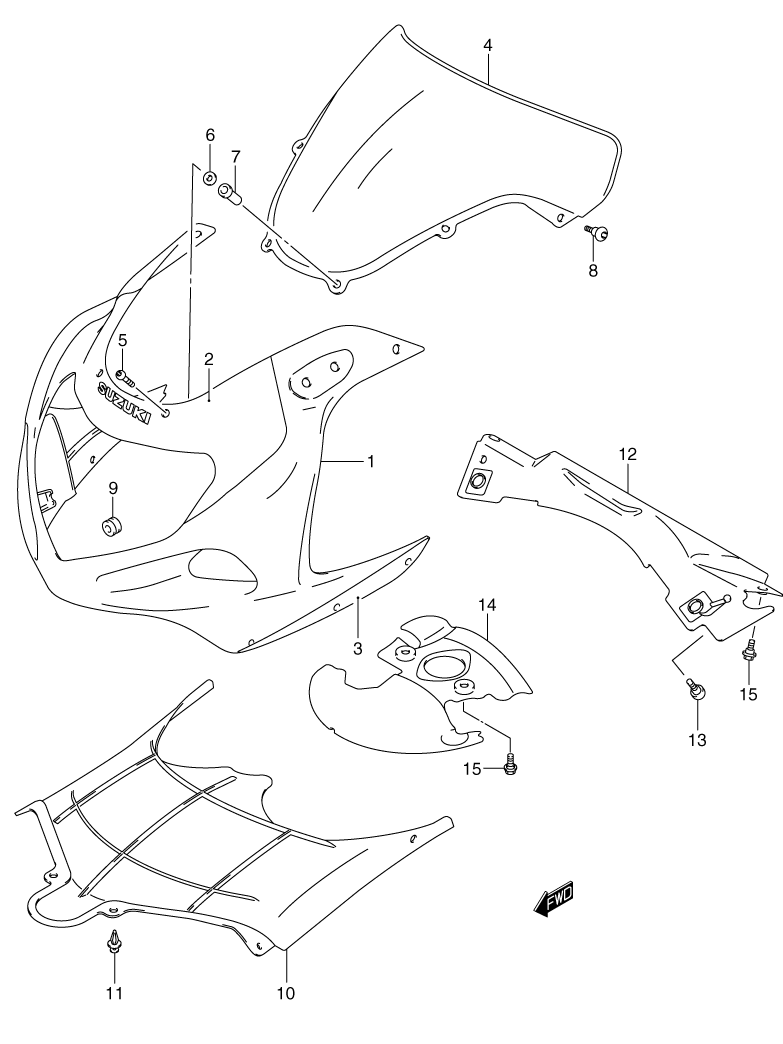

COWLING BODY для Suzuki GSX-R750 K2 - 2002 года выпуска

  • №
    Артикул
    Название
  • 1-1
    94410-35F20-1LF COWLING, BODY (1LF - BLUE) (FOR L99 - WHITE/BLUE)
    COWLING, BODY (1LF - BLUE) (FOR L99 - WHITE/BLUE)
  • 1-2
    94410-35F20-Y9H COWLING, BODY (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
    COWLING, BODY (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
  • 1-3
    94410-35F20-Y9X COWLING, BODY (Y9X - BLACK) (FOR FN9 - RED/SILVER)
    COWLING, BODY (Y9X - BLACK) (FOR FN9 - RED/SILVER)
  • 2-1
    68275-35F20-3SP ...TAPE (FRONT) (3SP - WHITE GRAY) (FOR L99 - WHITE/BLUE)
    ...TAPE (FRONT) (3SP - WHITE GRAY) (FOR L99 - WHITE/BLUE)
  • 2-2
    68275-35F20-FP2 ...TAPE (FRONT) (FP2 - SILVER/BLACK) (FOR BP9 - YELLOW/BLACK)
    ...TAPE (FRONT) (FP2 - SILVER/BLACK) (FOR BP9 - YELLOW/BLACK)
  • 2-3
    68275-35F20-FN9 ...TAPE (FRONT) (FN9 - RED/SILVER) (FOR FN9 - RED/SILVER)
    ...TAPE (FRONT) (FN9 - RED/SILVER) (FOR FN9 - RED/SILVER)
  • 3-1
    68280-39F00-0JW ...TAPE SET, SIDE (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    ...TAPE SET, SIDE (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 3-2
    68280-39F00-Y7L ...TAPE SET, SIDE (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
    ...TAPE SET, SIDE (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
  • 3-3
    68280-39F00-Y7M ...TAPE SET, SIDE (Y7M - RED) (FOR FN9 - RED/SILVER)
    ...TAPE SET, SIDE (Y7M - RED) (FOR FN9 - RED/SILVER)
  • 4
    94611-35F00 WINDSCREEN
    WINDSCREEN
  • 5
    09139-05025 SCREW
    SCREW
  • 6
    08322-01053 WASHER
    WASHER
  • 7
    09159-05019 NUT
    NUT
  • 8
    09139-05055 SCREW (REAR)
    SCREW (REAR)
  • 9
    09320-08028 CUSHION
    CUSHION
  • 10
    94419-35F00 COVER, BODY COWL
    COVER, BODY COWL
  • 11
    09409-06314-5PK CLIP, LID (BLACK)
    CLIP, LID (BLACK)
  • 12
    94457-35F00 COVER, COWL (FRONT/LOWER)
    COVER, COWL (FRONT/LOWER)
  • 13
    09139-05073 BOLT, NO.1
    BOLT, NO.1
  • 14
    94458-35F00 COVER, BRACKET
    COVER, BRACKET
  • 15
    63161-43E00 BOLT, NO.2
    BOLT, NO.2
