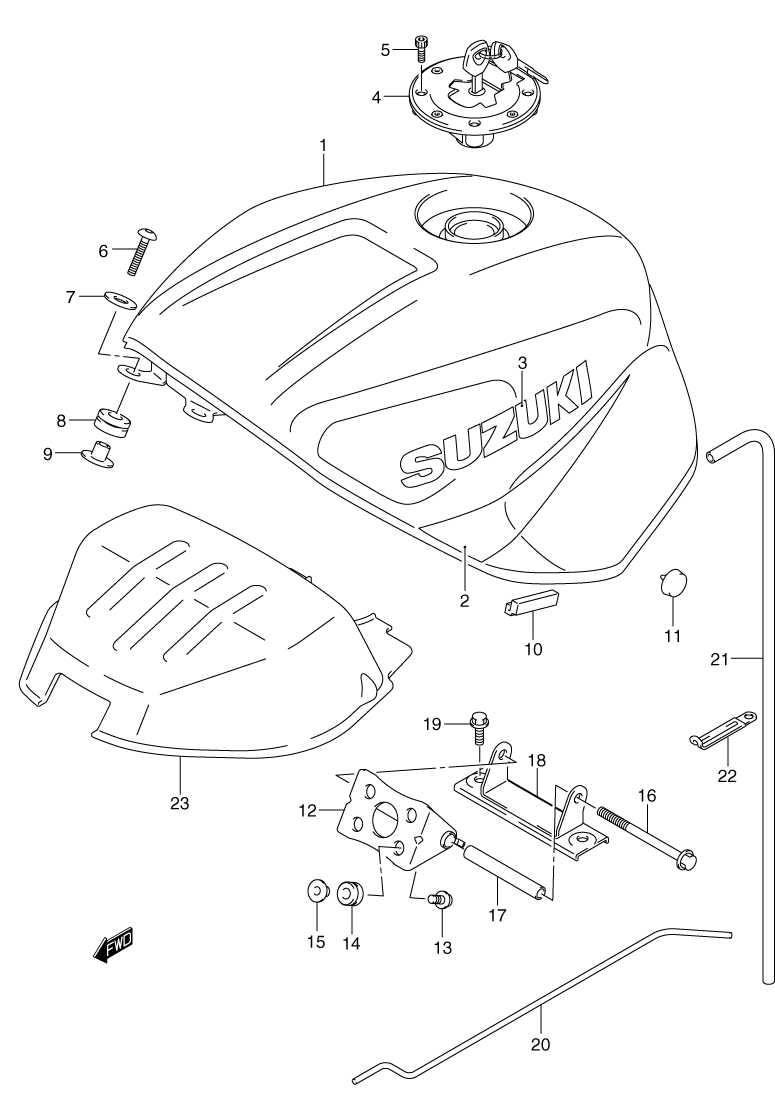

FUEL TANK для Suzuki GSX-R750 K2 - 2002 года выпуска

  • №
    Артикул
    Название
  • 1-1
    44100-35F60-L99 TANK ASSY., FUEL (EXCEPT CALIF.) (L99 - WHITE/BLUE)
    TANK ASSY., FUEL (EXCEPT CALIF.) (L99 - WHITE/BLUE)
  • 1-2
    44100-35F60-BP9 TANK ASSY., FUEL (EXCEPT CALIF.) (BP9 - YELLOW/BLACK)
    TANK ASSY., FUEL (EXCEPT CALIF.) (BP9 - YELLOW/BLACK)
  • 1-3
    44100-35F60-M4L TANK ASSY., FUEL (EXCEPT CALIF.) (M4L -BLACK/RED) (FOR FN9 - RED/SILVER)
    TANK ASSY., FUEL (EXCEPT CALIF.) (M4L -BLACK/RED) (FOR FN9 - RED/SILVER)
  • 1-4
    44100-35F70-L99 TANK ASSY., FUEL (CALIFORNIA ONLY) (L99 - WHITE/BLUE)
    TANK ASSY., FUEL (CALIFORNIA ONLY) (L99 - WHITE/BLUE)
  • 1-5
    44100-35F70-BP9 TANK ASSY., FUEL (CALIFORNIA ONLY) (BP9 - YELLOW/BLACK)
    TANK ASSY., FUEL (CALIFORNIA ONLY) (BP9 - YELLOW/BLACK)
  • 1-6
    44100-35F70-M4L TANK ASSY., FUEL (CALIFORNIA ONLY) (M4L -BLACK/RED) (FOR FN9 - RED/SILVER)
    TANK ASSY., FUEL (CALIFORNIA ONLY) (M4L -BLACK/RED) (FOR FN9 - RED/SILVER)
  • 2-1
    68110-35F20-1LE ...TAPE SET, FUEL TANK (1LE - BLUE) (FOR L99 - WHITE/BLUE)
    ...TAPE SET, FUEL TANK (1LE - BLUE) (FOR L99 - WHITE/BLUE)
  • 2-2
    68110-35F20-Y9H ...TAPE SET, FUEL TANK (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
    ...TAPE SET, FUEL TANK (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
  • 2-3
    68110-35F20-YD8 ...TAPE SET, FUEL TANK (YD8 - SILVER) (FOR FN9 - RED/SILVER)
    ...TAPE SET, FUEL TANK (YD8 - SILVER) (FOR FN9 - RED/SILVER)
  • 3-1
    68111-12C30-0JW ...EMBLEM (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    ...EMBLEM (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 3-2
    68111-12C30-Y7L ...EMBLEM (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
    ...EMBLEM (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
  • 3-3
    68111-12C30-YD8 ...EMBLEM (YD8 - SILVER) (FOR FN9 - RED/SILVER)
    ...EMBLEM (YD8 - SILVER) (FOR FN9 - RED/SILVER)
  • 4-1
    44201-33820 CAP SET, FUEL TANK (EXCEPT CALIF.)
    CAP SET, FUEL TANK (EXCEPT CALIF.)
  • 4-2
    44200-33890 CAP SET, FUEL TANK (CALIFORNIA ONLY)
    CAP SET, FUEL TANK (CALIFORNIA ONLY)
  • 5
    09106-05017 BOLT
    BOLT
  • 6
    09139-06029 BOLT (FRONT)
    BOLT (FRONT)
  • 7
    09160-06054 WASHER
    WASHER
  • 8
    44511-19F00 CUSHION (FRONT)
    CUSHION (FRONT)
  • 9
    44512-19F00 SPACER (FRONT)
    SPACER (FRONT)
  • 10
    44541-35F00 CUSHION, SIDE
    CUSHION, SIDE
  • 11
    44542-35F00 CUSHION, SIDE NO.2
    CUSHION, SIDE NO.2
  • 12
    44530-35F00 BRACKET, NO.1 (REAR)
    BRACKET, NO.1 (REAR)
  • 13
    09116-06152 BOLT
    BOLT
  • 14
    09320-08001 CUSHION
    CUSHION
  • 15
    09169-06062 SPACER
    SPACER
  • 16
    01550-06953 BOLT, JOINT
    BOLT, JOINT
  • 17
    44561-35F00 SPACER
    SPACER
  • 18
    44550-35F10 BRACKET, NO.2 (REAR)
    BRACKET, NO.2 (REAR)
  • 19
    01550-08163 BOLT
    BOLT
  • 20
    44574-35F00 STAY, FUEL TANK
    STAY, FUEL TANK
  • 21
    44423-35F00 HOSE, WATER DRAIN
    HOSE, WATER DRAIN
  • 22
    09404-06432 CLAMP
    CLAMP
  • 23
    44191-40F10 SHIELD, TANK HEAT
    SHIELD, TANK HEAT
