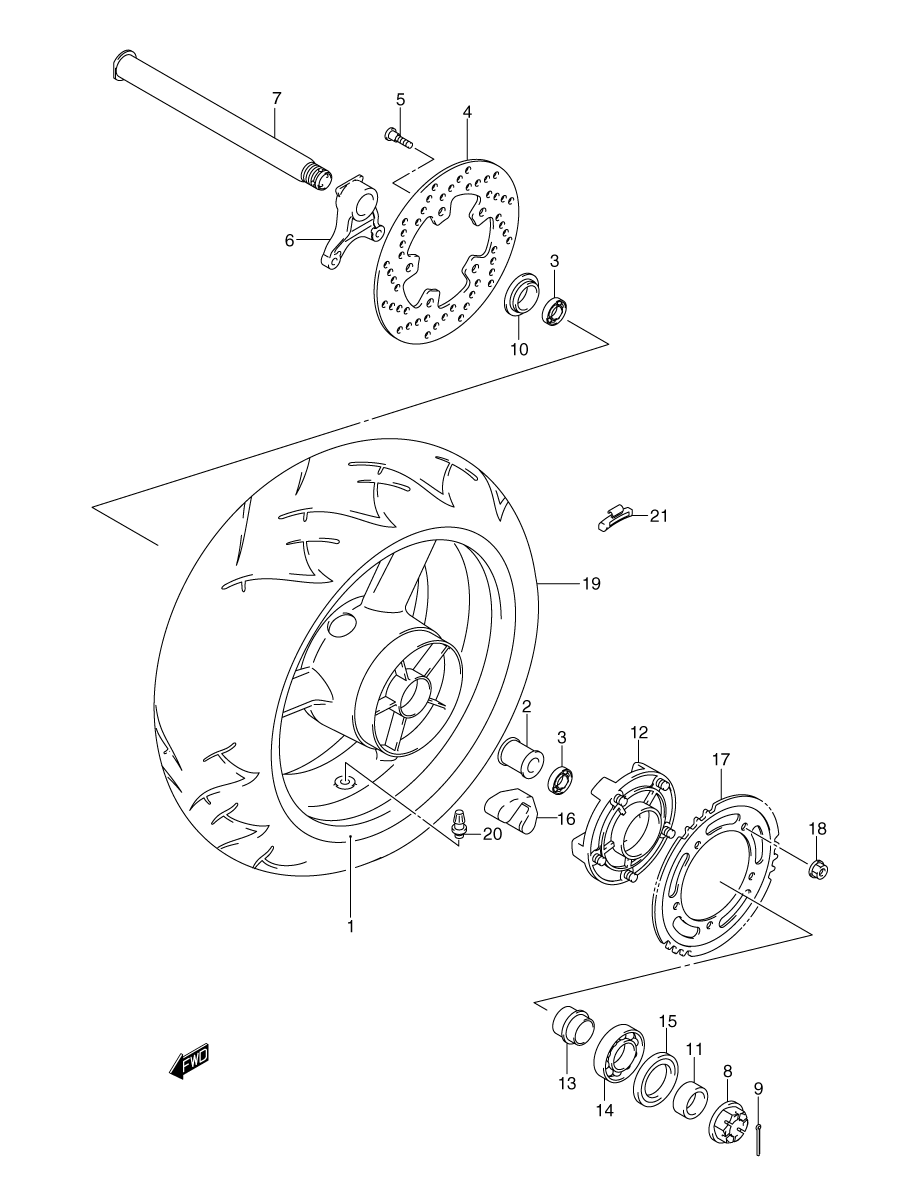

WHEEL - REAR для Suzuki GSX-R1000 K2 - 2002 года выпуска

  • №
    Артикул
    Название
  • 1-2
    64111-40F00-28W WHEEL, (REAR) (17XMT6.00) (28W - WHITE) (FOR L99 - WHITE/BLUE)
    WHEEL, (REAR) (17XMT6.00) (28W - WHITE) (FOR L99 - WHITE/BLUE)
  • 1-3
    64111-40F00-019 WHEEL, (REAR) (17XMT6.00) (019 - BLACK) (FOR FH9 - BLUE/BLACK, M4L - BLACK/RED)
    WHEEL, (REAR) (17XMT6.00) (019 - BLACK) (FOR FH9 - BLUE/BLACK, M4L - BLACK/RED)
  • 2
    64731-40F00 SPACER, HUB BEARING
    SPACER, HUB BEARING
  • 3
    09262-28043 BEARING (28X52X12)
    BEARING (28X52X12)
  • 4
    69211-40F00 DISC, (REAR) BRAKE
    DISC, (REAR) BRAKE
  • 5
    09106-08148 BOLT
    BOLT
  • 6
    69721-40F00 BRACKET, (REAR) CALIPER
    BRACKET, (REAR) CALIPER
  • 7
    64711-33E30 AXLE, (REAR)
    AXLE, (REAR)
  • 8
    09141-25001 NUT
    NUT
  • 9
    04111-40408 PIN, COTTER
    PIN, COTTER
  • 10
    64740-35F00 SPACER, AXLE (RIGHT)
    SPACER, AXLE (RIGHT)
  • 11
    64751-40F00 SPACER, AXLE (LEFT)
    SPACER, AXLE (LEFT)
  • 12
    64610-35F10 DRUM, REAR SPROCKET
    DRUM, REAR SPROCKET
  • 13
    64733-35F00 RETAINER, SPROCKET DRUM
    RETAINER, SPROCKET DRUM
  • 14
    09262-32007 BEARING (32X65X17)
    BEARING (32X65X17)
  • 15
    09285-39001 SEAL (39X65X7)
    SEAL (39X65X7)
  • 16
    64651-35F00 ABSORBER, HUB SHOCK
    ABSORBER, HUB SHOCK
  • 17
    64511-40F10 SPROCKET, (REAR) (NT:42)
    SPROCKET, (REAR) (NT:42)
  • 18
    08319-31107 NUT
    NUT
  • 19
    65110-40F00 TIRE, (REAR), 190/50ZR17 (73W) (BRIDDGESTONE)
    TIRE, (REAR), 190/50ZR17 (73W) (BRIDDGESTONE)
  • 20
    43130-24A00 VALVE ASSY., WHEEL RIM (TR412)
    VALVE ASSY., WHEEL RIM (TR412)
  • 21-1
    43232-82000 BALANCER (10G)
    BALANCER (10G)
  • 21-2
    43234-82000 BALANCER (20G)
    BALANCER (20G)
  • 21-3
    43236-82000 BALANCER (30G)
    BALANCER (30G)
