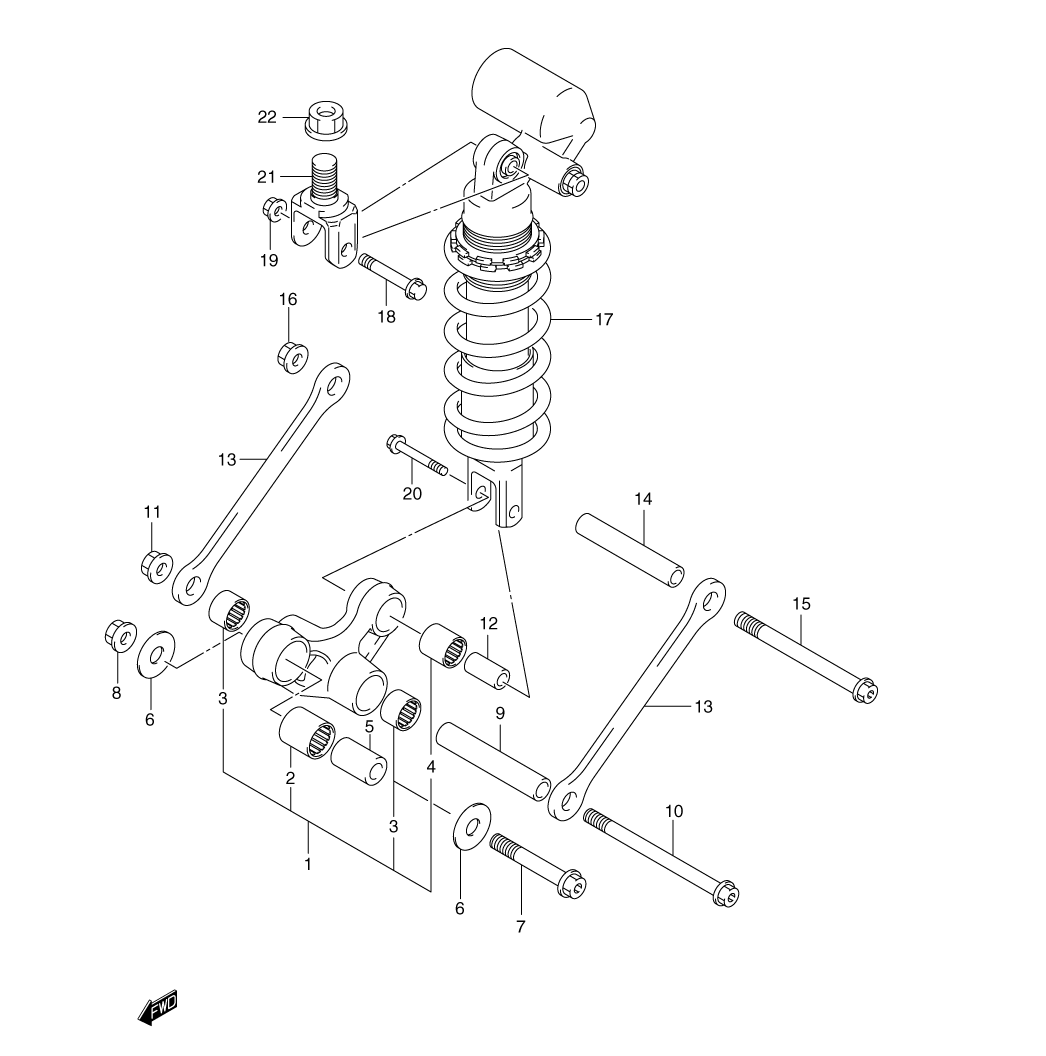

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki GSX-R1000 K2 - 2002 года выпуска`
-
№АртикулНазвание
-
162600-35810 LEVER SET, (REAR) CUSHIONLEVER SET, (REAR) CUSHION
-
209263-20073 ...BEARING, (FRONT) (20X27X30)...BEARING, (FRONT) (20X27X30)
-
309263-17039 ...BEARING, CENTER (17X24X20)...BEARING, CENTER (17X24X20)
-
409263-17034 ...BEARING, (REAR) (17X24X26)...BEARING, (REAR) (17X24X26)
-
562684-12C00 SPACER, (FRONT)SPACER, (FRONT)
-
609160-12037 WASHERWASHER
-
762658-35F00 BOLT, (FRONT)BOLT, (FRONT)
-
808319-31128 NUTNUT
-
962626-33D00 SPACER, CENTERSPACER, CENTER
-
1062621-35F00 BOLT, CENTERBOLT, CENTER
-
1108319-31128 NUTNUT
-
1262684-40A10 SPACER, (REAR)SPACER, (REAR)
-
1362641-35F00 ROD, (REAR) CUSHION LEVERROD, (REAR) CUSHION LEVER
-
1462626-33D00 SPACER, RODSPACER, ROD
-
1562621-35F00 BOLT, RODBOLT, ROD
-
1608319-31128 NUTNUT
-
17-162100-40F10-37W ABSORBER ASSY., SHOCK (REAR) (US)ABSORBER ASSY., SHOCK (REAR) (US)
-
17-262100-40F00-37W ABSORBER ASSY., SHOCK (REAR) (CANADA)ABSORBER ASSY., SHOCK (REAR) (CANADA)
-
1809103-10143 BOLT, UPPER (10X55)BOLT, UPPER (10X55)
-
1908319-31107 NUTNUT
-
2009103-10143 BOLT, LOWER (10X55)BOLT, LOWER (10X55)
-
2162993-35F00 BRACKET, ABSORBERBRACKET, ABSORBER
-
2209159-20006 NUTNUT
