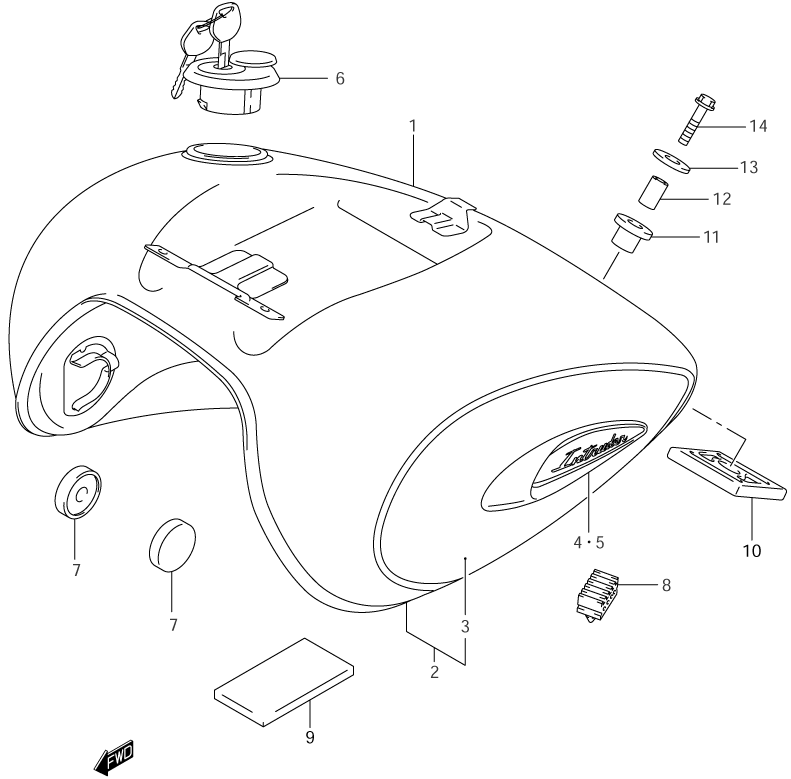

FUEL TANK для Suzuki VL800 K1 VOLUSIA - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-1
    44100-41F00-33J TANK ASSY., FUEL (33J - BLACK) (US)
    TANK ASSY., FUEL (33J - BLACK) (US)
  • 1-2
    44100-41F10-33J TANK ASSY., FUEL (33J - BLACK) (CALIF. ONLY)
    TANK ASSY., FUEL (33J - BLACK) (CALIF. ONLY)
  • 2-1
    44100-41F30-FP3 TANK ASSY., FUEL (FP3 - BLACK/RED) (EXCEPT CALIF.)
    TANK ASSY., FUEL (FP3 - BLACK/RED) (EXCEPT CALIF.)
  • 2-2
    44100-41F30-FP4 TANK ASSY., FUEL (FP4 - BLACK/WHITE) (EXCEPT CALIF.)
    TANK ASSY., FUEL (FP4 - BLACK/WHITE) (EXCEPT CALIF.)
  • 2-3
    44100-41F30-FP5 TANK ASSY., FUEL (FP5 - BLUE/BLUE) (US)
    TANK ASSY., FUEL (FP5 - BLUE/BLUE) (US)
  • 2-4
    44100-41F40-FP3 TANK ASSY., FUEL (FP3 - BLACK/RED) (CALIF. ONLY)
    TANK ASSY., FUEL (FP3 - BLACK/RED) (CALIF. ONLY)
  • 2-5
    44100-41F40-FP4 TANK ASSY., FUEL (FP4 - BLACK/WHITE) (CALIF. ONLY)
    TANK ASSY., FUEL (FP4 - BLACK/WHITE) (CALIF. ONLY)
  • 2-6
    44100-41F40-FP5 TANK ASSY., FUEL (FP5 - BLUE/BLUE) (CALIF. ONLY)
    TANK ASSY., FUEL (FP5 - BLUE/BLUE) (CALIF. ONLY)
  • 3-1
    68110-41F00-GC1 ...TAPE SET, FUEL TANK (GC1 - GRAY/RED/BLACK) (FOR FP3 - BLACK/RED)
    ...TAPE SET, FUEL TANK (GC1 - GRAY/RED/BLACK) (FOR FP3 - BLACK/RED)
  • 3-2
    68110-41F00-GC2 ...TAPE SET, FUEL TANK (GC2 - GRAY/WHITE/BLACK) (FOR FP4 - BLACK/WHITE)
    ...TAPE SET, FUEL TANK (GC2 - GRAY/WHITE/BLACK) (FOR FP4 - BLACK/WHITE)
  • 3-3
    68110-41F00-GC3 ...TAPE SET, FUEL TANK (GC3 - GRAY/BLUE/BLUE) (FOR FP5 - BLUE/BLUE) (US)
    ...TAPE SET, FUEL TANK (GC3 - GRAY/BLUE/BLUE) (FOR FP5 - BLUE/BLUE) (US)
  • 4
    68111-41F00 EMBLEM, (RIGHT)
    EMBLEM, (RIGHT)
  • 5
    68121-41F00 EMBLEM, (LEFT)
    EMBLEM, (LEFT)
  • 6-1
    44200-41810 CAP SET, FUEL TANK (EXCEPT CALIF.)
    CAP SET, FUEL TANK (EXCEPT CALIF.)
  • 6-2
    44200-41820 CAP SET, FUEL TANK (CALIF. ONLY)
    CAP SET, FUEL TANK (CALIF. ONLY)
  • 7
    09329-10007 CUSHION, FRONT
    CUSHION, FRONT
  • 8
    45149-31300 CUSHION, SIDE
    CUSHION, SIDE
  • 9
    44545-41F00 CUSHION, INNER
    CUSHION, INNER
  • 10
    44542-41F00 CUSHION, REAR LOWER
    CUSHION, REAR LOWER
  • 11
    44541-41F00 CUSHION, REAR UPPER
    CUSHION, REAR UPPER
  • 12
    09180-08057 SPACER
    SPACER
  • 13
    09160-08140 WASHER
    WASHER
  • 14
    01550-08353 BOLT
    BOLT
