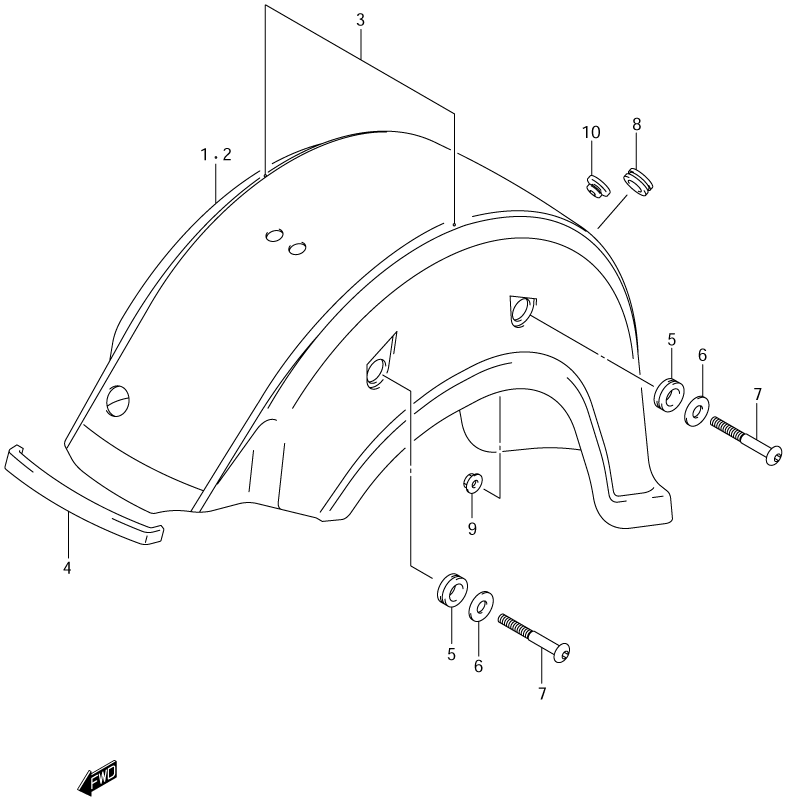

FENDER - REAR для Suzuki VL800 K1 VOLUSIA - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    63111-41F00-33J FENDER, REAR (33J - BLACK) (US)
    FENDER, REAR (33J - BLACK) (US)
  • 2-1
    63110-41F00-FP3 FENDER, REAR (FP3 - BLACK/RED)
    FENDER, REAR (FP3 - BLACK/RED)
  • 2-2
    63110-41F00-FP4 FENDER, REAR (FP4 - BLACK/WHITE)
    FENDER, REAR (FP4 - BLACK/WHITE)
  • 2-3
    63110-41F00-FP5 FENDER, REAR (FP5 - BLUE/BLUE) (US)
    FENDER, REAR (FP5 - BLUE/BLUE) (US)
  • 3-1
    68170-41F01-GC1 ...TAPE SET (GC1 - GRAY/RED/BLACK) (FOR FP3 - BLACK/RED)
    ...TAPE SET (GC1 - GRAY/RED/BLACK) (FOR FP3 - BLACK/RED)
  • 3-2
    68170-41F01-GC2 ...TAPE SET (GC2 - GRAY/WHITE/BLACK) (FOR FP4 - BLACK/WHITE)
    ...TAPE SET (GC2 - GRAY/WHITE/BLACK) (FOR FP4 - BLACK/WHITE)
  • 3-3
    68170-41F01-GC3 ...TAPE SET(GC3 - GRAY/BLUE/BLUE) (FOR FP5 - BLUE/BLUE)
    ...TAPE SET(GC3 - GRAY/BLUE/BLUE) (FOR FP5 - BLUE/BLUE)
  • 4
    47161-29B00 CUSHION, FRONT
    CUSHION, FRONT
  • 5
    47191-24F00 CUSHION
    CUSHION
  • 6
    09160-15002 WASHER
    WASHER
  • 7
    63161-41F00 BOLT
    BOLT
  • 8
    09320-15008 CUSHION, PILLION SEAT
    CUSHION, PILLION SEAT
  • 9
    08316-10083 NUT
    NUT
  • 10
    09321-10007 CUSHION, BRACE
    CUSHION, BRACE
