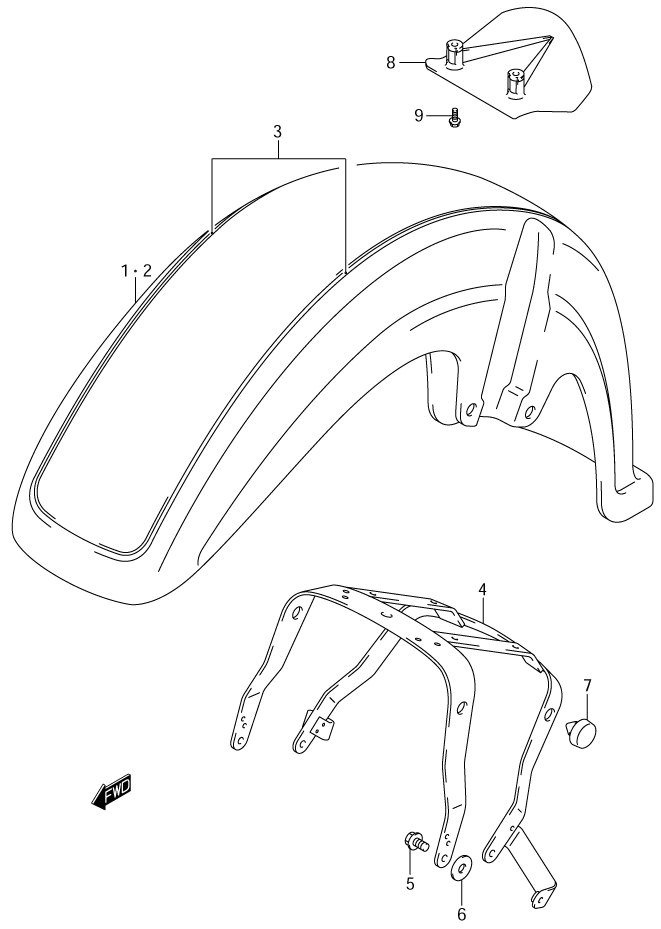

FENDER - FRONT для Suzuki VL800 K1 VOLUSIA - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    53111-41F00-33J FENDER, FRONT (33J - BLACK) ((US)
    FENDER, FRONT (33J - BLACK) ((US)
  • 2-1
    53110-41F00-FP3 FENDER, FRONT (FP3 - BLACK/RED)
    FENDER, FRONT (FP3 - BLACK/RED)
  • 2-2
    53110-41F00-FP4 FENDER, FRONT (FP4 - BLACK/WHITE)
    FENDER, FRONT (FP4 - BLACK/WHITE)
  • 2-3
    53110-41F00-FP5 FENDER, FRONT (FP5 - BLUE/BLUE) (US)
    FENDER, FRONT (FP5 - BLUE/BLUE) (US)
  • 3-1
    68150-41F00-GC1 ...TAPE SET (GC1 - GRAY/RED/BLACK) (FOR FP3 - BLACK/RED)
    ...TAPE SET (GC1 - GRAY/RED/BLACK) (FOR FP3 - BLACK/RED)
  • 3-2
    68150-41F00-GC2 ...TAPE SET (GC2 - GRAY/WHITE/BLACK) (FOR FP4 - BLACK/WHITE)
    ...TAPE SET (GC2 - GRAY/WHITE/BLACK) (FOR FP4 - BLACK/WHITE)
  • 3-3
    68150-41F00-GC3 ...TAPE SET (GC3 - GRAY/BLUE/BLUE) (FOR FP5 - BLUE/BLUE)
    ...TAPE SET (GC3 - GRAY/BLUE/BLUE) (FOR FP5 - BLUE/BLUE)
  • 4
    53120-41F10 BRACE, FRONT FENDER
    BRACE, FRONT FENDER
  • 5
    01550-06203 BOLT
    BOLT
  • 6
    53276-41F00 WASHER
    WASHER
  • 7
    09321-10007 CUSHION
    CUSHION
  • 8
    53181-41F00 WING, FRONT
    WING, FRONT
  • 9
    09111-06066 BOLT
    BOLT
