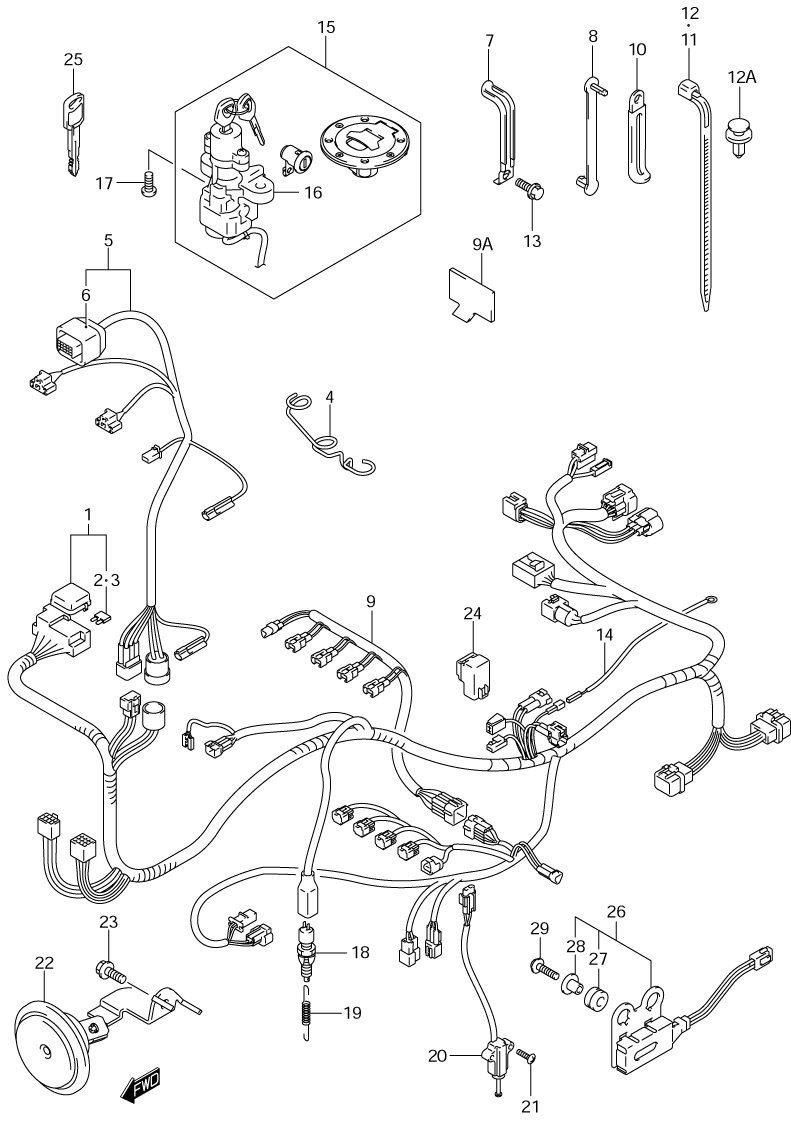

ELECTRICAL - WIRING HARNESS для Suzuki GSX-R600 K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-136610-39F10 HARNESS, WIRING NO.1 (UP TO FRAME NO.12104975)HARNESS, WIRING NO.1 (UP TO FRAME NO.12104975)
-
1-236610-39F20 HARNESS, WIRING NO.1 (FRAME NO.12104976 AND UP)HARNESS, WIRING NO.1 (FRAME NO.12104976 AND UP)
-
209481-10501 ...FUSE (10A)...FUSE (10A)
-
309481-15501 ...FUSE (15A)...FUSE (15A)
-
436619-35F00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
5-136620-35F20 HARNESS, WIRING NO.2 (UP TO FRAME NO.12104975)HARNESS, WIRING NO.2 (UP TO FRAME NO.12104975)
-
5-236620-35F30 HARNESS, WIRING NO.2 (FRAME NO.12104976 AND UP)HARNESS, WIRING NO.2 (FRAME NO.12104976 AND UP)
-
636618-35F00 ...COVER, SPEEDOMETER...COVER, SPEEDOMETER
-
736651-35F00 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
836651-48E00 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
936859-39F00 WIRE, INJECTOR LEADWIRE, INJECTOR LEAD
-
9A36920-35F00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
10-109404-06432 CLAMP (L:80)CLAMP (L:80)
-
10-209404-08205 CLAMP (L:62)CLAMP (L:62)
-
10-309404-08207 CLAMP (L:97)CLAMP (L:97)
-
11-109407-14403 CLAMP (L:125)CLAMP (L:125)
-
11-209407-18402 CLAMP (L:165)CLAMP (L:165)
-
11-309407-25401 CLAMP (L:235)CLAMP (L:235)
-
12-109407-11402 CLAMP (L:90)CLAMP (L:90)
-
12-209407-17401 CLAMP (L:150)CLAMP (L:150)
-
12A09409-08327 CLIPCLIP
-
1301550-05123 BOLT, WIRING HARNESSBOLT, WIRING HARNESS
-
1436851-35F00 WIRE, OIL PRESSURE LEADWIRE, OIL PRESSURE LEAD
-
15-137000-35840 LOCK SET (EXCEPT CALIF.)LOCK SET (EXCEPT CALIF.)
-
15-237000-35850 LOCK SET (CALIF. ONLY)LOCK SET (CALIF. ONLY)
-
1637100-35F20 ...LOCK ASSY., STEERING...LOCK ASSY., STEERING
-
1709139-08016 SCREWSCREW
-
1837740-24A00 SWITCH ASSY., STOP LAMPSWITCH ASSY., STOP LAMP
-
1909443-06042 SPRINGSPRING
-
2037840-35F00 SWITCH ASSY., SIDE STANDSWITCH ASSY., SIDE STAND
-
2101550-06203 BOLTBOLT
-
2238500-35F10 HORN ASSY.HORN ASSY.
-
2301550-06253 BOLTBOLT
-
2438740-24X50 RELAY ASSY., FUEL PUMPRELAY ASSY., FUEL PUMP
-
2537146-33E00 KEY, BLANK (OPT)KEY, BLANK (OPT)
-
2636510-39F00 RESISTOR ASSY.RESISTOR ASSY.
-
2709320-10015 ...CUSHION...CUSHION
-
2809180-06319 ...SPACER (6.5X10X11.6)...SPACER (6.5X10X11.6)
-
2909136-06126 BOLT, RESISTOR (6X25)BOLT, RESISTOR (6X25)
