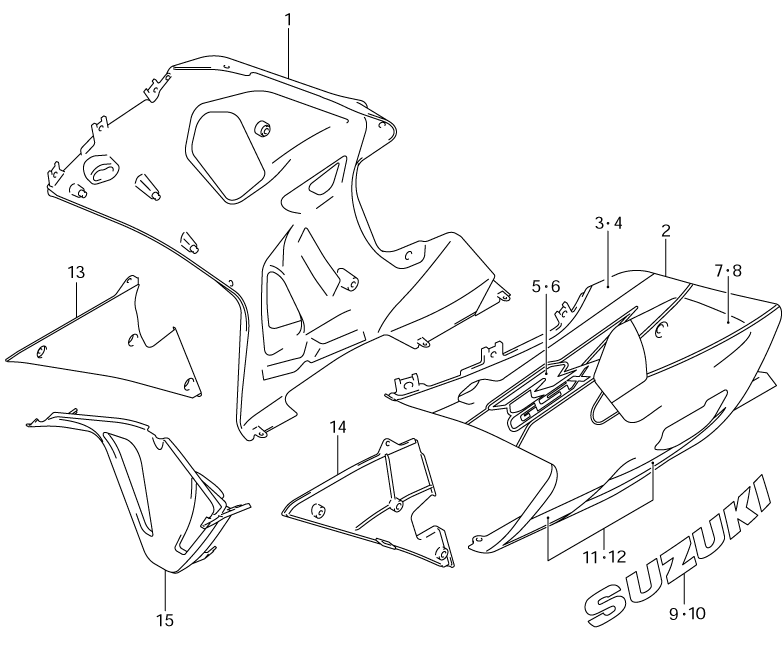

COWLING - UNDER BODY для Suzuki GSX-R600 K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-1
    94407-39F00-1LE COWL ASSY., UNDER (RIGHT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)
    COWL ASSY., UNDER (RIGHT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)
  • 1-2
    94407-39F00-Y7L COWL ASSY., UNDER (RIGHT) (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
    COWL ASSY., UNDER (RIGHT) (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
  • 2-1
    94408-39F00-1LE COWL ASSY., UNDER (LEFT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)
    COWL ASSY., UNDER (LEFT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)
  • 2-2
    94408-39F00-Y7L COWL ASSY., UNDER (LEFT) (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
    COWL ASSY., UNDER (LEFT) (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
  • 3-1
    68185-39F00-0JW ...TAPE, UPPER (RIGHT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    ...TAPE, UPPER (RIGHT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 3-2
    68185-39F00-Y9H ...TAPE, UPPER (RIGHT) (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
    ...TAPE, UPPER (RIGHT) (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
  • 4-1
    68195-39F00-0JW ...TAPE, UPPER (LEFT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    ...TAPE, UPPER (LEFT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 4-2
    68195-39F00-Y9H ...TAPE, UPPER (LEFT) (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
    ...TAPE, UPPER (LEFT) (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
  • 5-1
    68185-39F10-FM9 ...TAPE, "GSXR" (RIGHT) (FM9 - WHITE/BLUE/ORANGE/SILVER/BLACK) (FOR L99 - WHITE/BLUE)
    ...TAPE, "GSXR" (RIGHT) (FM9 - WHITE/BLUE/ORANGE/SILVER/BLACK) (FOR L99 - WHITE/BLUE)
  • 5-2
    68185-39F10-FN1 ...TAPE, "GSXR" (RIGHT) (FN1 - WHITE/BLACK/RED/SILVER) (FOR BP9 - YELLOW/BLACK)
    ...TAPE, "GSXR" (RIGHT) (FN1 - WHITE/BLACK/RED/SILVER) (FOR BP9 - YELLOW/BLACK)
  • 6-1
    68195-39F10-FM9 ...TAPE, "GSXR" (LEFT) (FM9 - WHITE/BLUE/ORANGE/SILVER/BLACK) (FOR L99 - WHITE/BLUE)
    ...TAPE, "GSXR" (LEFT) (FM9 - WHITE/BLUE/ORANGE/SILVER/BLACK) (FOR L99 - WHITE/BLUE)
  • 6-2
    68195-39F10-FN1 ...TAPE, "GSXR" (LEFT) (FN1 - WHITE/BLACK/RED/SILVER) (FOR BP9 - YELLOW/BLACK)
    ...TAPE, "GSXR" (LEFT) (FN1 - WHITE/BLACK/RED/SILVER) (FOR BP9 - YELLOW/BLACK)
  • 7-1
    68180-39F00-M18 ...TAPE SET (CENTER/RIGHT) (M18 - WHITE/BLUE) (FOR L99 - WHITE/BLUE)
    ...TAPE SET (CENTER/RIGHT) (M18 - WHITE/BLUE) (FOR L99 - WHITE/BLUE)
  • 7-2
    68180-39F00-BP9 ...TAPE SET (CENTER/RIGHT) (BP9 - YELLOW/BLACK) (FOR BP9 - YELLOW/BLACK)
    ...TAPE SET (CENTER/RIGHT) (BP9 - YELLOW/BLACK) (FOR BP9 - YELLOW/BLACK)
  • 8-1
    68190-39F00-M18 ...TAPE SET (CENTER/LEFT) (M18 - WHITE/BLUE) (FOR L99 - WHITE/BLUE)
    ...TAPE SET (CENTER/LEFT) (M18 - WHITE/BLUE) (FOR L99 - WHITE/BLUE)
  • 8-2
    68190-39F00-BP9 ...TAPE SET (CENTER/LEFT) (BP9 - YELLOW/BLACK) (FOR BP9 - YELLOW/BLACK)
    ...TAPE SET (CENTER/LEFT) (BP9 - YELLOW/BLACK) (FOR BP9 - YELLOW/BLACK)
  • 9-1
    68220-39F00-0JW ...EMBLEM, "SUZUKI" (RIGHT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    ...EMBLEM, "SUZUKI" (RIGHT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 9-2
    68220-39F00-YM2 ...EMBLEM, "SUZUKI" (RIGHT) (YM2 - WHITE) (FOR BP9 - YELLOW/BLACK)
    ...EMBLEM, "SUZUKI" (RIGHT) (YM2 - WHITE) (FOR BP9 - YELLOW/BLACK)
  • 10-1
    68230-39F00-0JW ...EMBLEM, "SUZUKI" (LEFT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    ...EMBLEM, "SUZUKI" (LEFT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 10-2
    68230-39F00-YM2 ...EMBLEM, "SUZUKI" (LEFT) (YM2 - WHITE)(FOR BP9 - YELLOW/BLACK)
    ...EMBLEM, "SUZUKI" (LEFT) (YM2 - WHITE)(FOR BP9 - YELLOW/BLACK)
  • 11-1
    68180-39F10-0JW ...TAPE SET, LOWER (RIGHT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    ...TAPE SET, LOWER (RIGHT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 11-2
    68180-39F10-YM2 ...TAPE SET (LOWER/RIGHT) (YM2 - WHITE) (FOR BP9 - YELLOW/BLACK)
    ...TAPE SET (LOWER/RIGHT) (YM2 - WHITE) (FOR BP9 - YELLOW/BLACK)
  • 12-1
    68190-39F10-0JW ...TAPE SET (LOWER/LEFT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    ...TAPE SET (LOWER/LEFT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 12-2
    68190-39F10-YM2 ...TAPE SET (LOWER/LEFT) (YM2 - WHITE) (FOR BP9 - YELLOW/BLACK)
    ...TAPE SET (LOWER/LEFT) (YM2 - WHITE) (FOR BP9 - YELLOW/BLACK)
  • 13
    94461-35F00 COWL, INNER (RIGHT/UNDER)
    COWL, INNER (RIGHT/UNDER)
  • 14
    94462-35F00 COWL INNER (UNDER/LEFT)
    COWL INNER (UNDER/LEFT)
  • 15
    94490-35F00 COWL (UNDER/CENTER)
    COWL (UNDER/CENTER)
