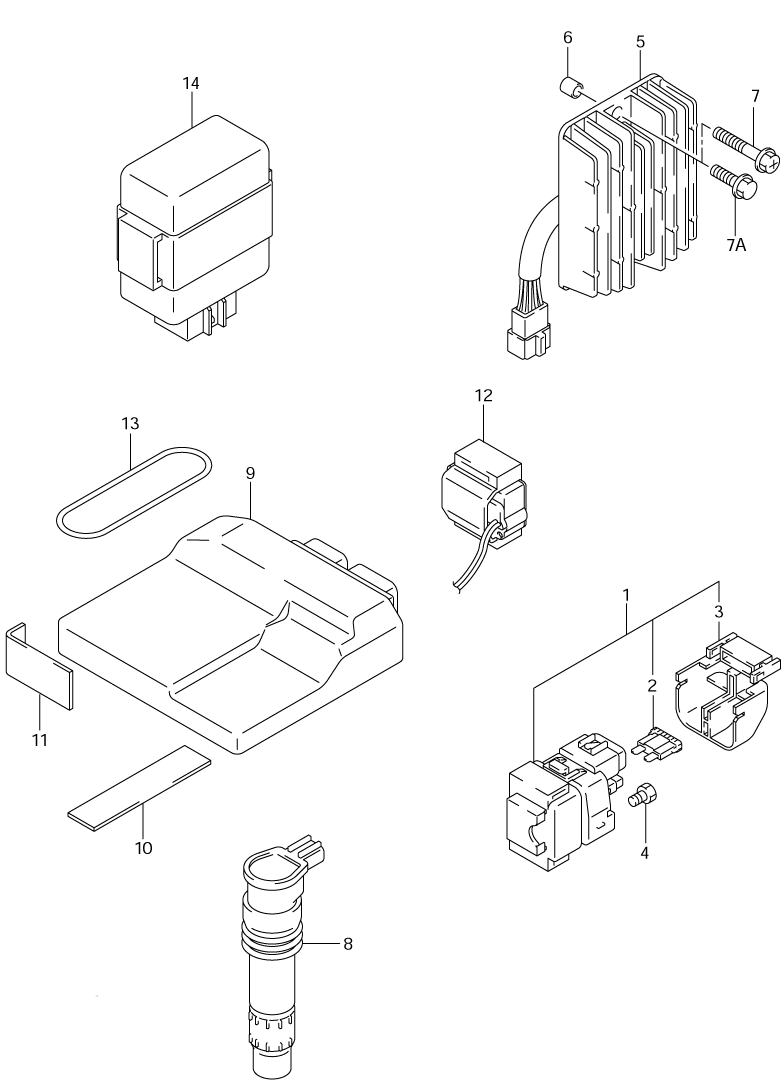

ELECTRICAL - COILS W/ STARTER RELAY - RECTIFIER для Suzuki GSX-R600 K1 - 2001 года выпуска
-
№АртикулНазвание
-
131800-35F00 RELAY ASSY., STARTING MOTORRELAY ASSY., STARTING MOTOR
-
209481-30101 ...FUSE (30A)...FUSE (30A)
-
331861-26E00 ...COVER, STARTER...COVER, STARTER
-
409128-06013 BOLT (6X8)BOLT (6X8)
-
532800-33E10 RECTIFIER ASSY.RECTIFIER ASSY.
-
609180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
702162-06353 SCREWSCREW
-
833410-35F00 COIL ASSY., IGNITIONCOIL ASSY., IGNITION
-
932920-39F30 CONTROL UNIT, FICONTROL UNIT, FI
-
1033652-07D00 CUSHION, FI (80X80X2) (20X90) CUT AS REQUIREDCUSHION, FI (80X80X2) (20X90) CUT AS REQUIRED
-
1133651-37000 CUSHION, FI (170X95X3.0) (30X25) CUT AS REQUIREDCUSHION, FI (170X95X3.0) (30X25) CUT AS REQUIRED
-
1233960-02F00 SENSOR ASSY., FUEL CUTSENSOR ASSY., FUEL CUT
-
1309280-70004 BAND, FI CONTROL UNITBAND, FI CONTROL UNIT
-
1432910-39F00 CONTROL UNIT, THORT ACTRCONTROL UNIT, THORT ACTR
