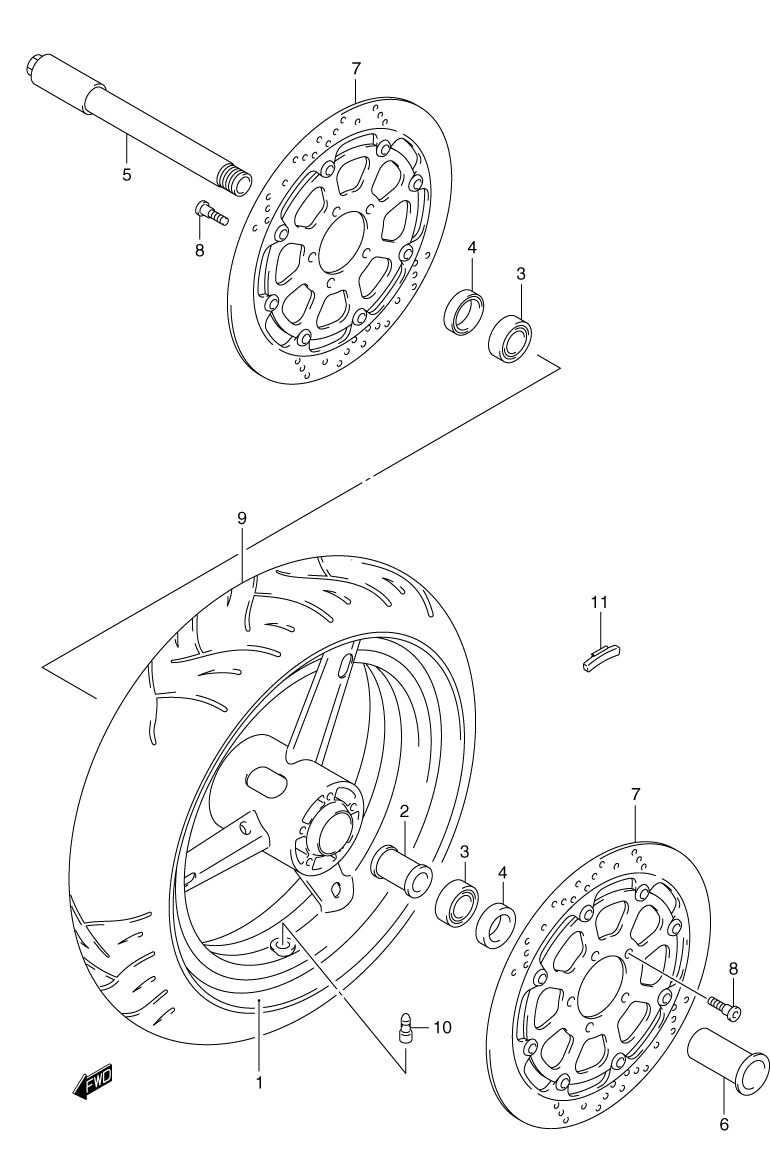

WHEEL - FRONT для Suzuki GSX-R1000 K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-1
    54111-35F00-Y6G WHEEL, (FRONT) (17XMT3.50) (Y6G - SILVER) (FOR CY9 - BLACK/SILVER, M4L - BLACK/RED)
    WHEEL, (FRONT) (17XMT3.50) (Y6G - SILVER) (FOR CY9 - BLACK/SILVER, M4L - BLACK/RED)
  • 1-2
    54111-35F00-28W WHEEL, (FRONT) (17XMT3.50) (28W - WHITE) (FOR L99 - WHITE/BLUE)
    WHEEL, (FRONT) (17XMT3.50) (28W - WHITE) (FOR L99 - WHITE/BLUE)
  • 2
    54731-35F00 SPACER, HUB BEARING
    SPACER, HUB BEARING
  • 3
    09262-25061 BEARING (25X52X15)
    BEARING (25X52X15)
  • 4
    09285-32004 SEAL (32X52X7)
    SEAL (32X52X7)
  • 5
    54711-35F00 AXLE, (FRONT)
    AXLE, (FRONT)
  • 6
    54712-33E00 NUT, AXLE
    NUT, AXLE
  • 7
    59210-33E80 DISC, (FRONT) BRAKE
    DISC, (FRONT) BRAKE
  • 8
    09106-08148 BOLT
    BOLT
  • 9
    55110-40F00 TIRE, (FRONT), 120/70ZR17 (58W) (BRIDGESTONE)
    TIRE, (FRONT), 120/70ZR17 (58W) (BRIDGESTONE)
  • 10
    43130-24A00 VALVE ASSY., WHEEL RIM (TR412)
    VALVE ASSY., WHEEL RIM (TR412)
  • 11-1
    43232-82000 BALANCER (10G)
    BALANCER (10G)
  • 11-2
    43234-82000 BALANCER (20G)
    BALANCER (20G)
  • 11-3
    43236-82000 BALANCER (30G)
    BALANCER (30G)
