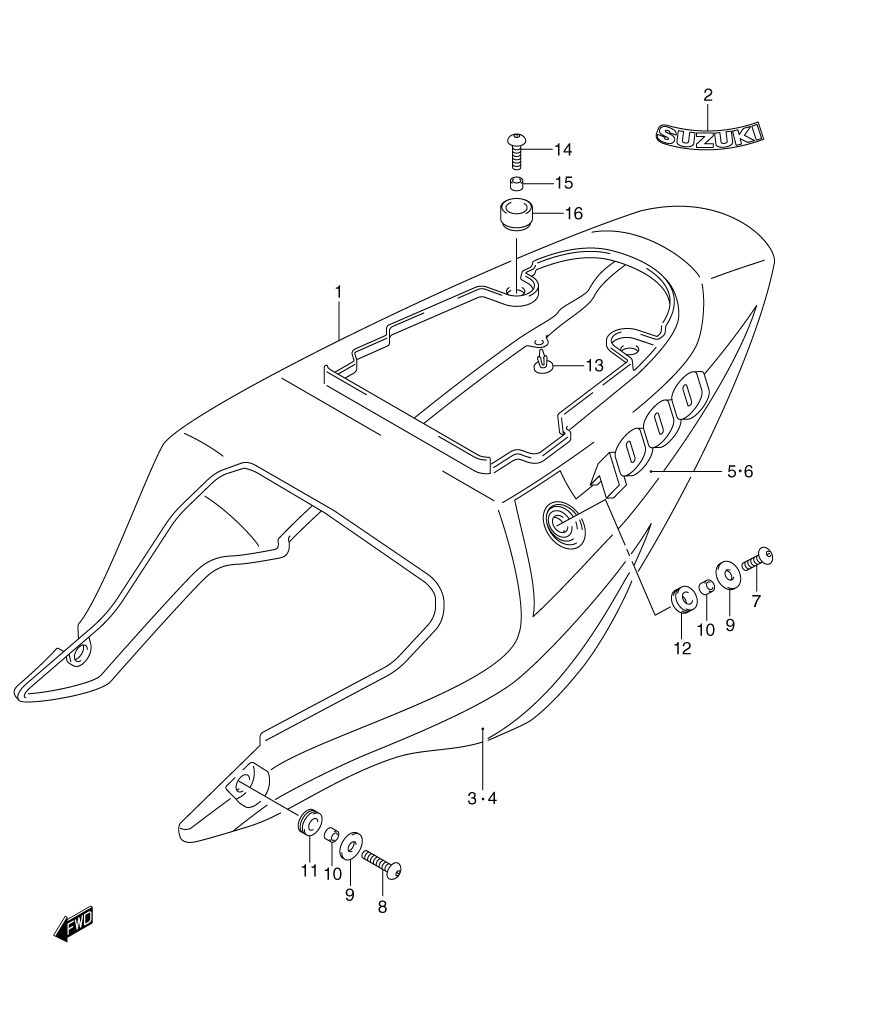

SIDE COVER для Suzuki GSX-R1000 K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47100-40F00-019 COVER, FRAME ASSY. (019 - BLACK) (FOR L99 - WHITE/BLUE)
    COVER, FRAME ASSY. (019 - BLACK) (FOR L99 - WHITE/BLUE)
  • 1-2
    47100-40F00-33J COVER, FRAME ASSY. (33J - BLACK) (FOR CY9 - BLACK/SILVER)
    COVER, FRAME ASSY. (33J - BLACK) (FOR CY9 - BLACK/SILVER)
  • 1-3
    47100-40F00-Y7L COVER, FRAME ASSY. (Y7L - BLACK) (FOR M4L - BLACK/RED)
    COVER, FRAME ASSY. (Y7L - BLACK) (FOR M4L - BLACK/RED)
  • 2-1
    68131-39F00-0JW ...EMBLEM (OJW - WHITE) (FOR L99 - WHITE/BLUE)
    ...EMBLEM (OJW - WHITE) (FOR L99 - WHITE/BLUE)
  • 2-2
    68131-39F00-YD8 ...EMBLEM (YD8 - SILVER) (FOR CY9 - BLACK/SILVER)
    ...EMBLEM (YD8 - SILVER) (FOR CY9 - BLACK/SILVER)
  • 3-1
    68135-40F00-CF9 ...TAPE, (FRONT) (RIGHT) (CF9 - BLACK/BLUE) (FOR L99 - WHITE/BLUE)
    ...TAPE, (FRONT) (RIGHT) (CF9 - BLACK/BLUE) (FOR L99 - WHITE/BLUE)
  • 3-2
    68135-40F00-3CG ...TAPE, (FRONT) (RIGHT) (3CG - BLACK/GRAY) (FOR CY9 - BLACK/SILVER)
    ...TAPE, (FRONT) (RIGHT) (3CG - BLACK/GRAY) (FOR CY9 - BLACK/SILVER)
  • 3-3
    68135-40F00-M4L ...TAPE, (FRONT) (RIGHT) (ML4 - BLACK/RED) (FOR M4L - BLACK/RED)
    ...TAPE, (FRONT) (RIGHT) (ML4 - BLACK/RED) (FOR M4L - BLACK/RED)
  • 4-1
    68145-40F00-CF9 ...TAPE, (FRONT) (LEFT) (CF9 - BLACK/BLUE) (FOR L99 - WHITE/BLUE)
    ...TAPE, (FRONT) (LEFT) (CF9 - BLACK/BLUE) (FOR L99 - WHITE/BLUE)
  • 4-2
    68145-40F00-3CG ...TAPE, (FRONT) (LEFT) (3CG - BLACK/GRAY) (FOR CY9 - BLACK/SILVER)
    ...TAPE, (FRONT) (LEFT) (3CG - BLACK/GRAY) (FOR CY9 - BLACK/SILVER)
  • 4-3
    68145-40F00-M4L ...TAPE, (FRONT) (LEFT) (ML4 - BLACK/RED) (FOR M4L - BLACK/RED)
    ...TAPE, (FRONT) (LEFT) (ML4 - BLACK/RED) (FOR M4L - BLACK/RED)
  • 5-1
    68135-40F10-K8S ...TAPE, (REAR) (RIGHT) (K8S - ORANGE/BLACK/WHITE) (FOR L99 - WHITE/BLUE)
    ...TAPE, (REAR) (RIGHT) (K8S - ORANGE/BLACK/WHITE) (FOR L99 - WHITE/BLUE)
  • 5-2
    68135-40F10-FV6 ...TAPE, (REAR) (RIGHT) (FV6 - SILVER/BLACK/YELLOW/BLACK) (FOR CY9 - BLACK/SILVER)
    ...TAPE, (REAR) (RIGHT) (FV6 - SILVER/BLACK/YELLOW/BLACK) (FOR CY9 - BLACK/SILVER)
  • 5-3
    68135-40F10-FV7 ...TAPE, (REAR) (RIGHT) (FV7 - SILVER/BLACK/RED/BLACK) (FOR M4L - BLACK/RED)
    ...TAPE, (REAR) (RIGHT) (FV7 - SILVER/BLACK/RED/BLACK) (FOR M4L - BLACK/RED)
  • 6-1
    68145-40F10-K8S ...TAPE, (REAR) (LEFT) (K8S - ORANGE/BLACK/WHITE) (FOR L99 - WHITE/BLUE)
    ...TAPE, (REAR) (LEFT) (K8S - ORANGE/BLACK/WHITE) (FOR L99 - WHITE/BLUE)
  • 6-2
    68145-40F10-FV6 ...TAPE, (REAR) (LEFT) (FV6 - SILVER/BLACK/YELLOW/BLACK) (FOR CY9 - BLACK/SILVER)
    ...TAPE, (REAR) (LEFT) (FV6 - SILVER/BLACK/YELLOW/BLACK) (FOR CY9 - BLACK/SILVER)
  • 6-3
    68145-40F10-FV7 ...TAPE, (REAR) (LEFT) (FV7 - SILVER/BLACK/RED/BLACK) (FOR M4L - BLACK/RED)
    ...TAPE, (REAR) (LEFT) (FV7 - SILVER/BLACK/RED/BLACK) (FOR M4L - BLACK/RED)
  • 7
    09139-06029 SCREW, (SIDE)
    SCREW, (SIDE)
  • 8
    09139-06042 SCREW, (FRONT)
    SCREW, (FRONT)
  • 9
    09160-06047 WASHER
    WASHER
  • 10
    09180-06283 SPACER
    SPACER
  • 11
    47161-35F00 CUSHION, (FRONT)
    CUSHION, (FRONT)
  • 12
    47161-35F10 CUSHION, (SIDE)
    CUSHION, (SIDE)
  • 13
    09409-06314-5PK CLIP, LOWER (BLACK)
    CLIP, LOWER (BLACK)
  • 14
    09139-06029 SCREW, UPPER
    SCREW, UPPER
  • 15
    09180-06286 SPACER
    SPACER
  • 16
    09320-10045 CUSHION, UPPER
    CUSHION, UPPER
