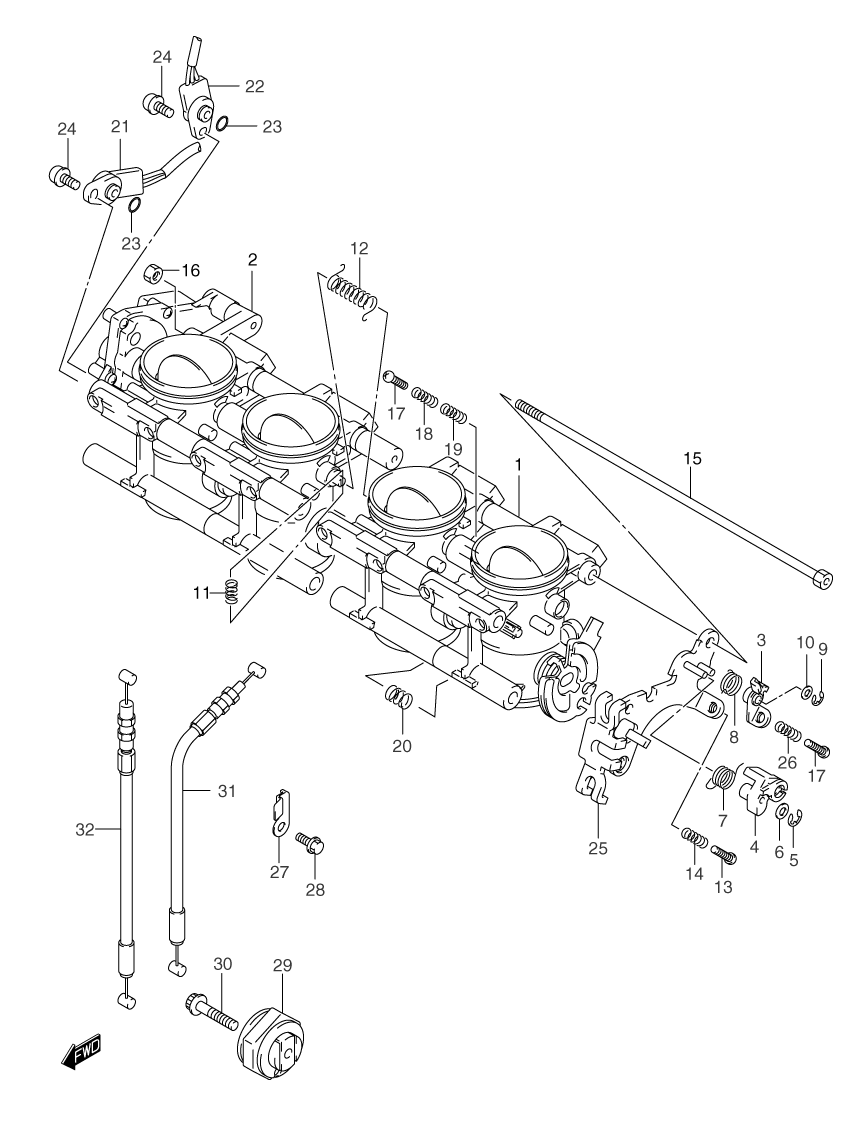

CARBURETOR - THROTTLE BODY ASSY. для Suzuki GSX-R1000 K1 - 2001 года выпуска`
-
№АртикулНазвание
-
1-113460-40F00 BODY SET, THROTTLE #1/#2 (EXCEPT CALIF.)BODY SET, THROTTLE #1/#2 (EXCEPT CALIF.)
-
1-213460-40F10 BODY SET, THROTTLE #1/#2 (CALIF. ONLY)BODY SET, THROTTLE #1/#2 (CALIF. ONLY)
-
2-113470-40F00 BODY SET, THROTTLE #3/#4 (EXCEPT CALIF.)BODY SET, THROTTLE #3/#4 (EXCEPT CALIF.)
-
2-213470-40F10 BODY SET, THROTTLE #3/#4 (CALIF. ONLY)BODY SET, THROTTLE #3/#4 (CALIF. ONLY)
-
313414-35F00 LINK LEVERLINK LEVER
-
413413-35F00 LINK LEVERLINK LEVER
-
513424-35F00 WASHERWASHER
-
613427-35F00 SPRINGSPRING
-
713426-35F00 SPRINGSPRING
-
813426-35F10 SPRINGSPRING
-
913424-35F10 E-RINGE-RING
-
1013427-35F10 WASHERWASHER
-
1113268-26E10 SPRINGSPRING
-
1213549-40F00 SPRINGSPRING
-
1313267-35F00 SCREWSCREW
-
1413268-35F00 SPRINGSPRING
-
1513611-24F00 BOLTBOLT
-
1613607-24F00 NUTNUT
-
1713423-35F00 SCREWSCREW
-
1813543-24F00 SPRINGSPRING
-
1913268-03F50 SPRINGSPRING
-
2013543-24F20 SPRINGSPRING
-
2113580-40F00 SENSOR, THROTTLE ASSY. NO.1SENSOR, THROTTLE ASSY. NO.1
-
2213580-40F10 SENSOR, THROTTLE ASSY. NO.2SENSOR, THROTTLE ASSY. NO.2
-
2313575-40F00 O-RINGO-RING
-
2413605-40F00 SCREWSCREW
-
2513565-35F00 PLATE, STAYPLATE, STAY
-
2613271-26E10 SPRINGSPRING
-
2711259-40F00 BRACKET, EXHAUST VALVE CABLEBRACKET, EXHAUST VALVE CABLE
-
2801547-06123 BOLTBOLT
-
2911269-20A04 PULLEY, CONTROLLERPULLEY, CONTROLLER
-
3007120-05203 BOLTBOLT
-
3111276-40F00 CABLE, EXHAUST VALVE OPENCABLE, EXHAUST VALVE OPEN
-
3211277-40F00 CABLE, EXHAUST VALVE CLOSECABLE, EXHAUST VALVE CLOSE
