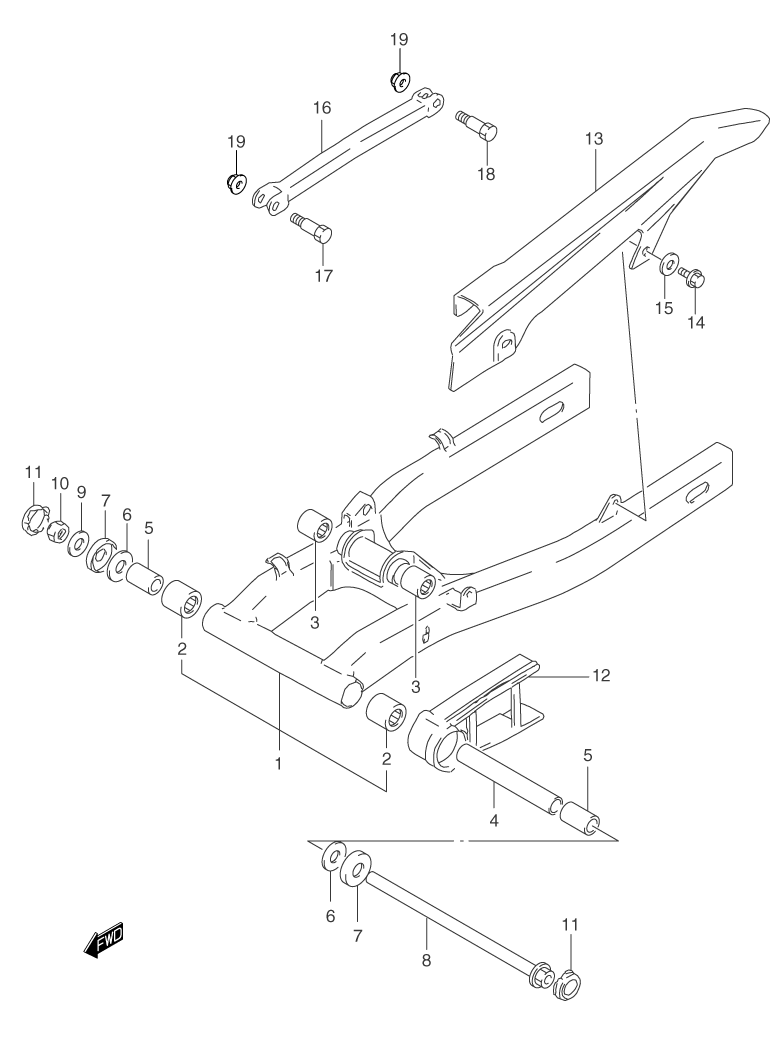

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki GS500 K1 - 2001 года выпуска`
-
№АртикулНазвание
-
161000-01D10-13L SWINGING ARM ASSY. (REAR) (13L -SILVER)SWINGING ARM ASSY. (REAR) (13L -SILVER)
-
209263-22017 ...BEARING, PIVOT (22X29X30)...BEARING, PIVOT (22X29X30)
-
309263-17037 ...BEARING, ROD (17X24X25)...BEARING, ROD (17X24X25)
-
461282-01D00 SPACER (CENTER)SPACER (CENTER)
-
561251-45001 SPACER, PIVOT BEARINGSPACER, PIVOT BEARING
-
609160-14020 WASHERWASHER
-
761262-45002 DUST SEAL, PIVOT SHAFTDUST SEAL, PIVOT SHAFT
-
861211-30B00 SHAFT, SWINGING ARM PIVOTSHAFT, SWINGING ARM PIVOT
-
909160-14009 WASHERWASHER
-
1009159-14019 NUTNUT
-
1161222-48B00 CAP, SWINGING ARM PIVOTCAP, SWINGING ARM PIVOT
-
1261273-01D00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1361310-01D00 CASE, CHAINCASE, CHAIN
-
1402142-06123 SCREWSCREW
-
1509169-06026 WASHERWASHER
-
1664310-01D02 TORQUE LINK, (REAR/BLACK)TORQUE LINK, (REAR/BLACK)
-
1709111-10052 BOLT (FRONT) (10X41)BOLT (FRONT) (10X41)
-
1809100-10187 BOLT (REAR) (10X34)BOLT (REAR) (10X34)
-
1908319-31103 NUTNUT
